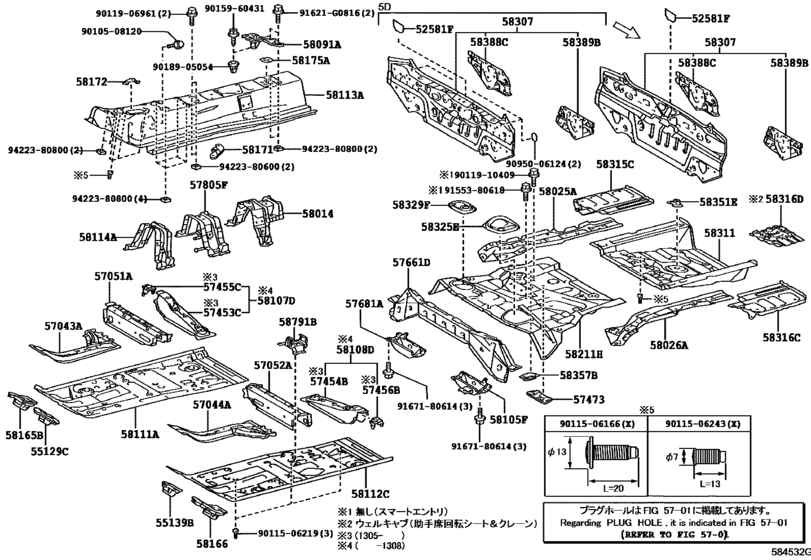

Floor Pan & Lower Back Panel ([04.2012 - ] (1204- )NZE164) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- NZE164
- grade
- G
- body
- SED
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- COROLLA AXIO
- From
- 04.2012
- No.of Doors
- 4D
- Vehicle Model
- Corolla Axio
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52581F
|
52581F
52581-12140 Protector, Rear Bumper[04.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
52581-12140 |
US $2.56 |
||
|
52581F
|
52581F
52581-13030 Protector, Rear Bumper[04.2012 - 03.2013] NRE160,NZE16#,ZRE162 |
52581-13030 |
US $4.64 |
||
|
55129C
|
55129C
55129-52051 Cover, Front Floor HoleDASH PANEL HOLE [04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
55129-52051 |
US $10.48 |
||
|
55139B
|
55139B
55139-52021 Cover, Front Floor HoleDASH PANEL HOLE [04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
55139-52021 |
US $10.48 |
||
|
57043A
|
57043A
57043-52021 Reinforcement Sub-Assy, Front Side Member, Rear Rh[04.2012 - 05.2013] NRE160,NZE16#,ZRE162 |
57043-52021 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[04.2012 - 05.2013] NRE160,NZE16#,ZRE162 |
57043-52023 |
US $59.55 |
||
|
57043A
|
57043A
57043-52022 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57043-52022 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57043-52023 |
US $59.55 |
||
|
57044A
|
57044A
57044-52041 Reinforcement Sub-Assy, Front Side Member, Rear Lh[04.2012 - 05.2013] NRE160,NZE16#,ZRE162 |
57044-52041 |
US $65.52 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[04.2012 - 05.2013] NRE160,NZE16#,ZRE162 |
57044-52043 |
US $59.55 |
||
|
57044A
|
57044A
57044-52042 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57044-52042 |
US $65.52 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57044-52043 |
US $59.55 |
||
|
57051A
|
57051A
57051-52010 Member Sub-Assy, Front Floor Cross, Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57051-52010 |
US $91.73 |
||
|
57052A
|
57052A
57052-52010 Member Sub-Assy, Front Floor Cross, Lh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57052-52010 |
US $91.73 |
||
|
57453C
|
57453C
57453-52022 Member, Front Floor Cross Side, Rh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57453-52022 |
US $54.75 |
||
|
57454B
|
57454B
57454-52012 Member, Front Floor Cross Side, Lh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57454-52012 |
US $54.75 |
||
|
57455C
|
57455C
57455-52040 Bracket, Front Seat Mounting, Outside Rh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57455-52040 |
US $7.43 |
||
|
57456B
|
57456B
57456-52040 Bracket, Front Seat Mounting, Outside Lh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57456-52040 |
US $7.43 |
||
|
57473
|
57473
57473-52021 Reinforcement, Rear Seat Back Hinge[04.2012 - 03.2015] NZE164 |
57473-52021 |
US $17.76 |
||
|
57661D
|
57661D
57661-52100 Member, Rear Floor Cross, Front[04.2012 - 03.2015] NZE164 |
57661-52100 |
US $65.37 |
||
|
57681A
|
57681A
57681-52030 Brace, Rear Floor No.2 Crossmember, Outer[04.2012 - 03.2015] NZE164 |
57681-52030 |
US $41.34 |
||
|
57805F
|
57805F
57805-52141 Reinforcement Sub-Assy, Belt Anchor, Rh[04.2012 - 03.2015] NZE164 |
57805-52141 |
US $55.47 |
||
|
58014
|
58014
58014-52011 Panel Sub-Assy, Front Floor, Rear Lower[04.2012 - 03.2015] NZE164 |
58014-52011 |
US $84.45 |
||
| replacement | |||||
|
58014
|
58014
58014-52012 Panel Sub-Assy, Front Floor, Rear Lower[04.2012 - 03.2015] NZE164 |
58014-52012 |
US $75.71 |
||
|
58014
|
58014
58014-52012 Panel Sub-Assy, Front Floor, Rear Lower[10.2015 -] NZE164 |
58014-52012 |
US $75.71 |
||
|
58025A
|
58025A
58025-12030 Panel Sub-Assy, Floor Side Rail, Fr Rh[04.2012 - 03.2015] NKE165,NZE16#..4D..CVT..(G,HBDG,X) ウェルキャブ（助手席回転シート）; NKE165,NZE16#..4D..CVT..(G,HBDG,X) ウェルキャブ（助手席回転シート ＆ クレーン） |
58025-12030 |
US $78.62 |
||
|
58025A
|
58025A
58025-12050 Panel Sub-Assy, Floor Side Rail, Fr Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58025-12050 |
US $72.60 |
||
|
58026A
|
58026A
58026-12010 Panel Sub-Assy, Floor Side Rail, Fr Lh[04.2012 - 03.2015] NKE165,NZE16#..4D..CVT..(G,HBDG,X) ウェルキャブ（助手席回転シート）; NKE165,NZE16#..4D..CVT..(G,HBDG,X) ウェルキャブ（助手席回転シート ＆ クレーン） |
58026-12010 |
US $78.62 |
||
|
58026A
|
58026A
58026-12020 Panel Sub-Assy, Floor Side Rail, Fr Lh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58026-12020 |
US $97.68 |
||
|
58091A
|
58091A
58091-12010 Reinforcement Set, Body Fitting[04.2012 - 03.2015] NZE164 |
58091-12010 |
US $32.91 |
||
|
58105F
|
58105F
58105-52030 Brace, Rear Floor No.2 Crossmember, Outer LhREAR FLOOR NO.2 CROSSMEMBER, OUTER LH [04.2012 - 03.2015] NZE164 |
58105-52030 |
US $41.34 |
||
|
58107D
|
58107D
58107-52050 Reinforce Sub-Assy, Front Cross To Front Panel, Rh[04.2012 - 05.2013] NRE160,NZE16#,ZRE162 |
58107-52050 |
US $63.34 |
||
| replacement | |||||
|
58107D
|
58107D
58107-52051 Reinforce Sub-Assy, Front Cross To Front Panel, Rh[04.2012 - 05.2013] NRE160,NZE16#,ZRE162 |
58107-52051 |
US $63.34 |
||
|
58107D
|
58107D
58107-52051 Reinforce Sub-Assy, Front Cross To Front Panel, Rh[05.2013 - 08.2013] NKE165,NRE160,NZE16#,ZRE162 |
58107-52051 |
US $63.34 |
||
|
58108D
|
58108D
58108-52030 Reinforce Sub-Assy, Front Cross To Front Panel, Lh[04.2012 - 05.2013] NRE160,NZE16#,ZRE162 |
58108-52030 |
US $63.34 |
||
| replacement | |||||
|
58108D
|
58108D
58108-52031 Reinforce Sub-Assy, Front Cross To Front Panel, Lh[04.2012 - 05.2013] NRE160,NZE16#,ZRE162 |
58108-52031 |
US $63.34 |
||
|
58108D
|
58108D
58108-52031 Reinforce Sub-Assy, Front Cross To Front Panel, Lh[05.2013 - 08.2013] NKE165,NRE160,NZE16#,ZRE162 |
58108-52031 |
US $63.34 |
||
|
58111A
|
58111A
58111-52170 Pan, Front Floor, Rh[04.2012 - 08.2013] NRE160,NZE16#,ZRE162 |
58111-52170 |
US $174.72 |
||
|
58111A
|
58111A
58111-52280 Pan, Front Floor, Rh[08.2013 - 11.2014] NRE160,NZE16#,ZRE162; NKE165 |
58111-52280 |
US $174.72 |
||
| replacement | |||||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[08.2013 - 11.2014] NRE160,NZE16#,ZRE162; NKE165 |
58111-52281 |
US $158.70 |
||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[11.2014 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58111-52281 |
US $158.70 |
||
|
58112C
|
58112C
58112-52904 Pan, Front Floor, Lh[04.2012 - 08.2013] NRE160,NZE16#,ZRE162 |
58112-52904 |
US $158.70 |
||
|
58112C
|
58112C
58112-52916 Pan, Front Floor, Lh[08.2013 - 01.2015] NRE160,NZE16#,ZRE162 |
58112-52916 |
US $171.81 |
||
| replacement | |||||
|
58112C
|
58112C
58112-52921 Pan, Front Floor, Lh[08.2013 - 01.2015] NRE160,NZE16#,ZRE162 |
58112-52921 |
US $155.79 |
||
|
58112C
|
58112C
58112-52921 Pan, Front Floor, Lh[01.2015 - 03.2015] NRE160,NZE16#,ZRE162 |
58112-52921 |
US $155.79 |
||
|
58113A
|
58113A
58113-52914 Panel, Front Floor, Center[04.2012 - 03.2015] NZE164 |
58113-52914 |
US $317.41 |
||
|
58114A
|
58114A
58114-52081 Reinforcement, Front Floor Panel[04.2012 - 03.2015] NZE164 |
58114-52081 |
US $38 |
||
|
58165B
|
58165B
58165-52011 Cover, Front Floor, RhFRONT FLOOR, RH [04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58165-52011 |
US $13.22 |
||
|
58166
|
58166
58166-52011 Cover, Front Floor, LhFRONT FLOOR, LH [04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58166-52011 |
US $14.50 |
||
|
58171
|
58171
58171-52120 Reinforcement, Parking Brake Base[04.2012 - 03.2015] NZE164 |
58171-52120 |
US $11.21 |
||
|
58172
|
58172
58172-52030 Bracket, Computer Mounting, No.3[04.2012 - 03.2015] NZE164 |
58172-52030 |
US $5.39 |
||
|
58175A
|
58175A
58175-52020 Reinforcement, Parking Brake Base, No.1[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58175-52020 |
US $2.91 |
||
|
58211H
|
58211H
58211-52170 Pan, Center Floor[04.2012 - 03.2015] NZE164 |
58211-52170 |
US $198.02 |
||
|
58307
|
58307
58307-12B70 Panel Sub-Assy, Body Lower Back[04.2012 - 07.2013] NZE164..4D |
58307-12B70 |
US $202.38 |
||
| replacement | |||||
|
58307
|
58307
58307-12B71
Panel Sub-Assy, Body Lower Back
[04.2012 - 07.2013] NZE164..4D |
58307-12B71 |
— | ||
| replacement | |||||
|
58307
|
58307
58307-12B72 Panel Sub-Assy, Body Lower Back[04.2012 - 07.2013] NZE164..4D |
58307-12B72 |
US $298.20 |
||
|
58307
|
58307
58307-12B71
Panel Sub-Assy, Body Lower Back
[08.2013 - 03.2015] NZE164..4D |
58307-12B71 |
— | ||
| replacement | |||||
|
58307
|
58307
58307-12B72 Panel Sub-Assy, Body Lower Back[08.2013 - 03.2015] NZE164..4D |
58307-12B72 |
US $298.20 |
||
|
58307
|
58307
58307-12B72 Panel Sub-Assy, Body Lower Back[01.2017 -] NZE164..4D |
58307-12B72 |
US $298.20 |
||
|
58311
|
58311
58311-52220 Pan, Rear Floor[04.2012 - 03.2015] NZE164 |
58311-52220 |
US $158.70 |
||
|
58315C
|
58315C
58315-52170 Extension, Rear Floor Side Panel, Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58315-52170 |
US $44.54 |
||
|
58316C
|
58316C
58316-52190 Extension, Rear Floor Side Panel, Lh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58316-52190 |
US $44.54 |
||
|
58316D
|
58316D
C3178-12010 Extension, Rear Floor Pan, Lh[04.2012 - 03.2015] NZE16#..4D..CVT..X;NKE165,NZE16#,ZRE162..CVT..(G,HBDG,S) ウェルキャブ（助手席回転シート ＆ クレーン） |
C3178-12010 |
US $47.03 |
||
|
58325E
|
58325E
58325-52060 Cover, Rear Floor Service Hole[04.2012 - 03.2015] NZE164 |
58325-52060 |
US $19.51 |
||
|
58329F
|
58329F
58329-52020 Cover, Rear Floor Service Hole, No.2[04.2012 - 03.2015] NZE164 |
58329-52020 |
US $12.38 |
||
|
58351E
|
58351E
58351-52070 Bracket Sub-Assy, Spare Wheel Clamp[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58351-52070 |
US $8.80 |
||
|
58357B
|
58357B
58357-52041 Bracket, Actuator Cover, No.3 Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58357-52041 |
US $8.53 |
||
|
58388C
|
58388C
58388-12040 Plate, Body Lower Back Reinforcement, Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58388-12040 |
US $38 |
||
|
58388C
|
58388C
58388-12041
Plate, Body Lower Back Reinforcement, Rh
[01.2017 -] NKE165,NRE16#,NZE16#,ZRE162 |
58388-12041 |
— | ||
|
58389B
|
58389B
58389-12030 Plate, Body Lower Back Reinforcement, Lh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58389-12030 |
US $33.20 |
||
|
58791B
|
58791B
58791-52060 Carrier, Jack[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58791-52060 |
US $17.62 |
||
|
91621G0816
|
91621G0816
91621-G0816 BOLT WWASHER |
91621-G0816 |
US $2.24 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011906961
|
9011906961
90119-06961 BOLT WWASHER |
90119-06961 |
US $0.96 |
||
|
9011910409
|
9011910409
90119-10409 New Genuine Part |
90119-10409 |
US $1.76 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9018905054
|
9018905054
90189-05054 New Genuine Part |
90189-05054 |
US $0.79 |
||
|
9095006124
|
9095006124
90950-06124 Tape, Seal |
90950-06124 |
from US $1.44 |
||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $0.96 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9422380600
|
9422380600
94223-80600 Retainer, Rear Door Open Switch Set, Rh |
94223-80600 |
US $1.12 |
||
|
9422380800
|
9422380800
94223-80800 New Genuine Part |
94223-80800 |
US $1.44 |
||
