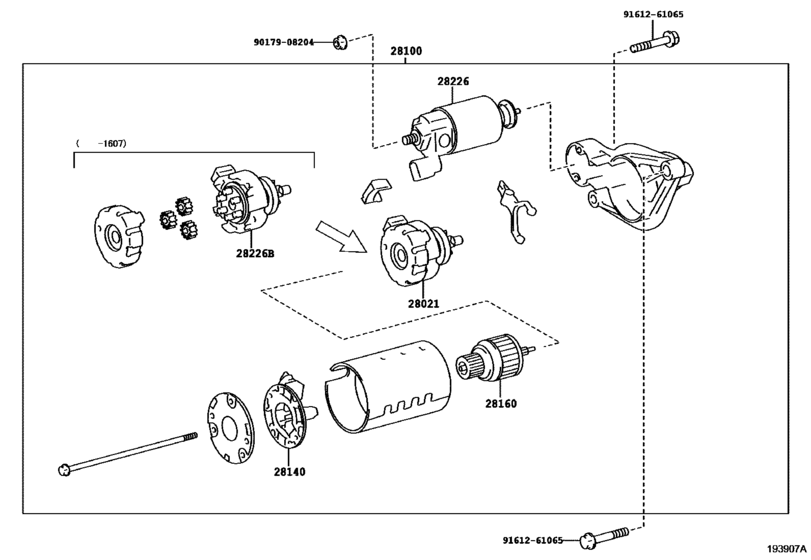

Starter ([04.2012 - ] 12V 1.0KW, 1.2KW (1204- )1NZFE..NZE164 ; (1204- )1NZFE..NZE 161..5F) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- NZE164
- grade
- G
- body
- SED
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- COROLLA AXIO
- From
- 04.2012
- No.of Doors
- 4D
- Vehicle Model
- Corolla Axio
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21060 Clutch Sub-Assy, Starter Center Bearing[03.2015 -] 1NZFE..NZE16# 寒冷地仕様 |
28021-21060 |
from US $63.73 |
||
|
28021
|
28021
28021-21070 Clutch Sub-Assy, Starter Center Bearing[07.2016 -] 1NZFE..NZE16# |
28021-21070 |
US $90.27 |
||
|
28100
|
28100
28100-21070 Starter Assy[04.2012 - 03.2015] 1NZFE..NZE164;1NZFE..NZE161..5F １２Ｖ １．０ＫＷ |
28100-21070 |
US $687.23 |
||
|
28100
|
28100
28100-21080 Starter Assy[04.2012 - 03.2015] 1NZFE..NZE164;1NZFE..NZE161..5F １２Ｖ １．２ＫＷ,寒冷地仕様 |
28100-21080 |
US $739.65 |
||
|
28100
|
28100
28100-21110 Starter Assy[03.2015 -] 1NZFE..NZE16# １２Ｖ １．３ＫＷ,寒冷地仕様 |
28100-21110 |
US $739.65 |
||
|
28140
|
28140
28140-21070 Holder Assy, Starter Brush[04.2012 - 03.2015] 1NZFE..NZE161..5F;1NRFE,1NZFE..NRE160,NZE164 |
28140-21070 |
from US $13.53 |
||
|
28160
|
28160
28160-21060 Armature Assy, Starter[03.2015 -] 1NZFE..NZE16# 寒冷地仕様 |
28160-21060 |
from US $97.60 |
||
|
28160
|
28160
28160-21070 Armature Assy, Starter[04.2012 - 03.2015] 1NZFE..NZE161..5F;1NRFE,1NZFE..NRE160,NZE164 |
28160-21070 |
US $125.80 |
||
|
28160
|
28160
28160-21080 Armature Assy, Starter[04.2012 - 03.2015] 1NZFE..NZE161..5F;1NRFE,1NZFE..NRE160,NZE164 寒冷地仕様 |
28160-21080 |
US $138.32 |
||
|
28226
|
28226
28226-21080
Starter Kit, Battery Terminal
[04.2012 - 09.2014] 1NZFE..NZE161..5F;1NRFE,1NZFE..NRE160,NZE164 |
28226-21080 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-21081
Starter Kit, Battery Terminal
[04.2012 - 09.2014] 1NZFE..NZE161..5F;1NRFE,1NZFE..NRE160,NZE164 |
28226-21081 |
— | ||
|
28226
|
28226
28226-21081
Starter Kit, Battery Terminal
[09.2014 - 03.2015] 1NZFE..NZE161..5F;1NRFE,1NZFE..NRE160,NZE164 |
28226-21081 |
— | ||
|
28226
|
28226
28226-22061 Starter Kit, Battery Terminal[03.2015 -] 1NZFE..NZE16# 寒冷地仕様 |
28226-22061 |
US $103.08 |
||
|
28226B
|
28226B
28226-21070
Starter Kit, Repair Service
[04.2012 - 03.2015] 1NZFE..NZE164;1NZFE..NZE161..5F |
28226-21070 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
