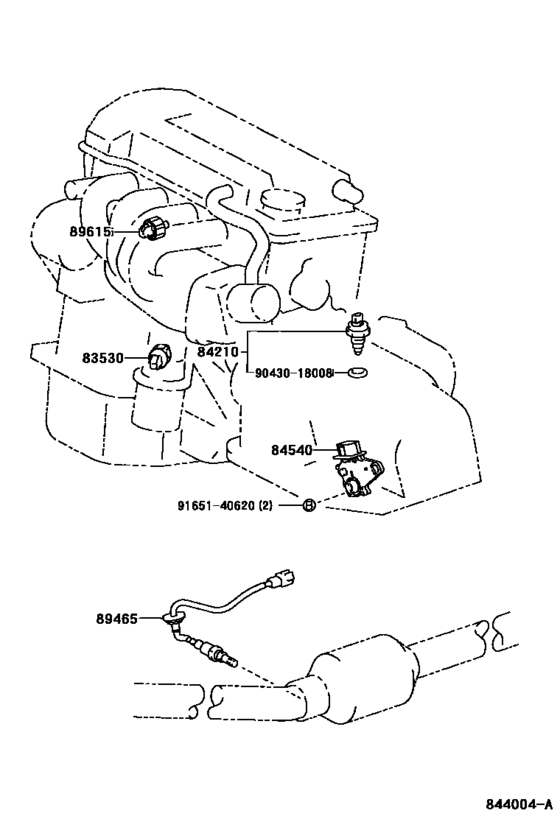

Switch & Relay & Computer ([08.2000 - 09.2002] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (0008-0209)ZZE122,124 ; (0209-0609)ZZE122..5F) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- grade
- LXL
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2000 - 09.2002] NZE12#,ZZE12# ＤＥＮＳＯ |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2000 - 09.2002] NZE12#,ZZE12# ＤＥＮＳＯ |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2000 - 09.2002] NZE12#,ZZE12# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2000 - 09.2002] NZE12#,ZZE12# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.55 |
||
|
84540
|
84540
84540-46010 Switch Assy, Neutral Start[04.2004 - 09.2006] NZE12#,ZZE122,124..4FC |
84540-46010 |
from US $122.85 |
||
|
84540
|
84540
84540-52010 Switch Assy, Neutral Start[03.2002 - 09.2002] CE121,NZE121,124,ZZE122,124..4FC 品番ラベル＝８４５４０−５２０１０ |
84540-52010 |
US $174.24 |
||
|
84540
|
84540
84540-52050 Switch Assy, Neutral Start[08.2000 - 09.2002] CE121,NZE121,124,ZZE122,124..4FC 品番ラベル＝８４５４０−５２０５０ |
84540-52050 |
US $174.24 |
||
|
89465
|
89465
89465-12600 Sensor, Oxygen[08.2000 - 09.2002] NZE121,ZZE122 |
89465-12600 |
from US $125.40 |
||
|
89465
|
89465
89465-13030 Sensor, Oxygen[09.2002 - 04.2004] ZZE122..4FC |
89465-13030 |
US $149.76 |
||
|
89615
|
89615
89615-12120 Sensor, Knock Control[08.2000 - 09.2002] ZZE122,124 |
89615-12120 |
from US $135.51 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[09.2002 - 04.2004] ZZE122,124..4FC |
89615-20090 |
from US $36.02 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
