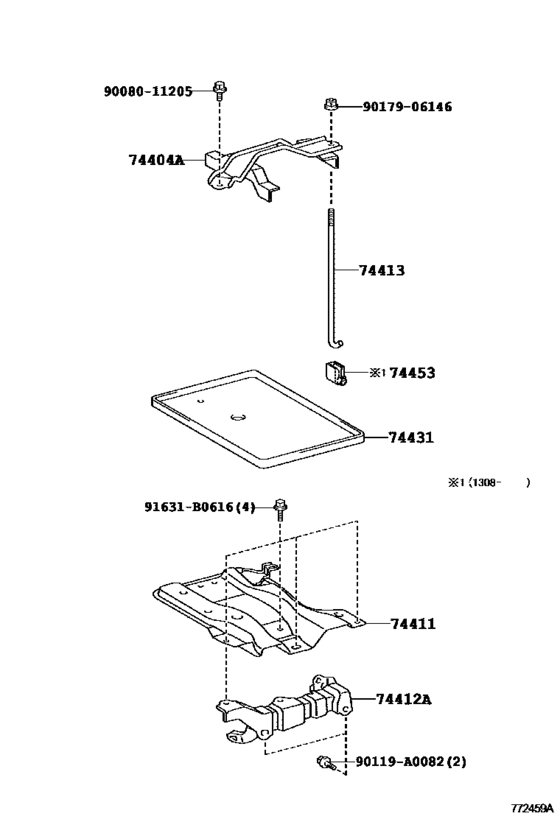

Battery Carrier ([01.2008 - ] (0801- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-02230
Clamp Sub-Assy, Battery
[01.2008 - 12.2010] AZE14#,ZRE142 |
74404-02230 |
— | ||
|
74411
|
74411
74401-02040
Carrier, Battery
[01.2008 - 12.2010] AZE14#,ZRE142 |
74401-02040 |
— | ||
|
74412A
|
74412A
74410-02080
Carrier, Battery, No.2
[01.2008 - 12.2010] AZE14#,ZRE142 |
74410-02080 |
— | ||
|
74413
|
74413
74451-02080 Bolt, Battery ClampBATTERY CLAMP [01.2008 - 12.2010] AZE14#,ZRE142 |
74451-02080 |
US $2.09 |
||
|
74431
|
74431
74431-02250
Tray, Battery
[01.2008 - 12.2010] AZE14# |
74431-02250 |
— | ||
|
90119A0082
|
90119A0082
90119-A0082
New Genuine Part
|
90119-A0082 |
— | ||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
9008011205
|
9008011205
90080-11205 BOLT WWASHER |
90080-11205 |
from US $0.76 |
||
|
9017906146
|
9017906146
90179-06146 Nut |
90179-06146 |
US $1.79 |
