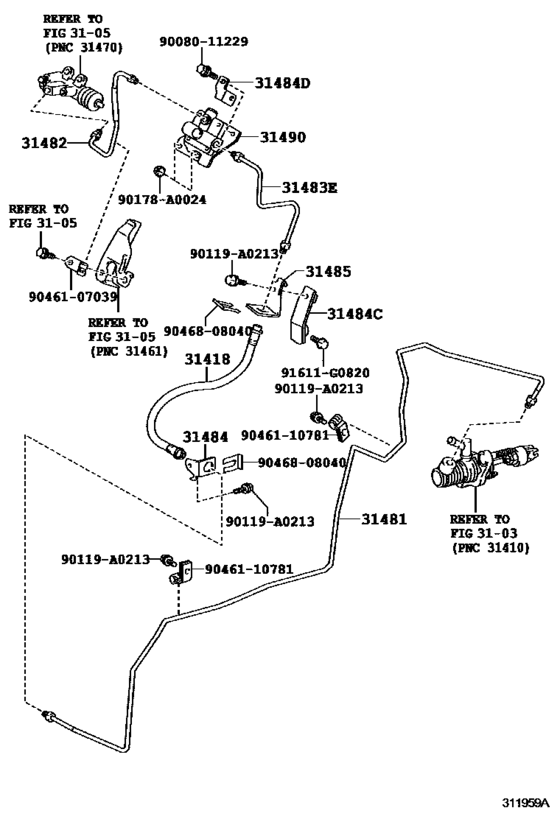

Clutch Pedal & Flexible Hose ([01.2008 - ] (0801- )AZE141,146..5F) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90947-A2022
Hose, Clutch
[01.2008 - 12.2010] AZE141,146..5F |
90947-A2022 |
— | ||
|
31481
|
31481
31481-02280
Tube, Clutch Master Cylinder To Flexible Hose
[01.2008 - 10.2010] AZE141,146,ZRE142..5F |
31481-02280 |
— | ||
|
31481
|
31481
31481-02480
Tube, Clutch Master Cylinder To Flexible Hose
[11.2010 - 12.2010] AZE141,146,ZRE142..5F |
31481-02480 |
— | ||
|
31482
|
31482
31482-33070 Tube, Clutch Release Cylinder To Flexible HoseCLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE [01.2008 - 12.2010] AZE141,146..5F |
31482-33070 |
US $5.53 |
||
|
31483E
|
31483E
31483-02180
Tube, Bleeder Clutch Release
[01.2008 - 12.2010] AZE141,146..5F |
31483-02180 |
— | ||
|
31484
|
31484
31484-02130
Bracket, Flexible Hose(For Clutch)
[01.2008 - 12.2010] AZE141,146,ZRE142..5F |
31484-02130 |
— | ||
|
31484C
|
31484C
31484-20320 Bracket, Flexible Hose(For Clutch)[01.2008 - 12.2010] AZE141,146..5F |
31484-20320 |
US $5.42 |
||
|
31484D
|
31484D
31484-42080 Bracket, Clutch Tube, No.1FLEXIBLE HOSE, NO.2(FOR CLUTCH) [01.2008 - 12.2010] AZE141,146..5F |
31484-42080 |
US $7.13 |
||
|
31485
|
31485
31484-02120
Bracket, Flexible Hose, No.2(For Clutch)
[01.2008 - 12.2010] AZE141,146..5F |
31484-02120 |
— | ||
|
31490
|
31490
31490-42010 Accumulator Assy, ClutchCLUTCH [01.2008 - 12.2010] AZE141,146..5F |
31490-42010 |
from US $95.75 |
||
|
90119A0213
|
90119A0213
90119-A0213
New Genuine Part
|
90119-A0213 |
— | ||
|
90178A0024
|
90178A0024
90178-A0024
New Genuine Part
|
90178-A0024 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9008011229
|
9008011229
90080-11229
New Genuine Part
|
90080-11229 |
— | ||
|
9046107039
|
9046107039
90461-07039 New Genuine Part |
90461-07039 |
US $2.04 |
||
|
9046110781
|
9046110781
90461-10781 Clamp, Brake Tube, No.6 |
90461-10781 |
US $2.87 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
