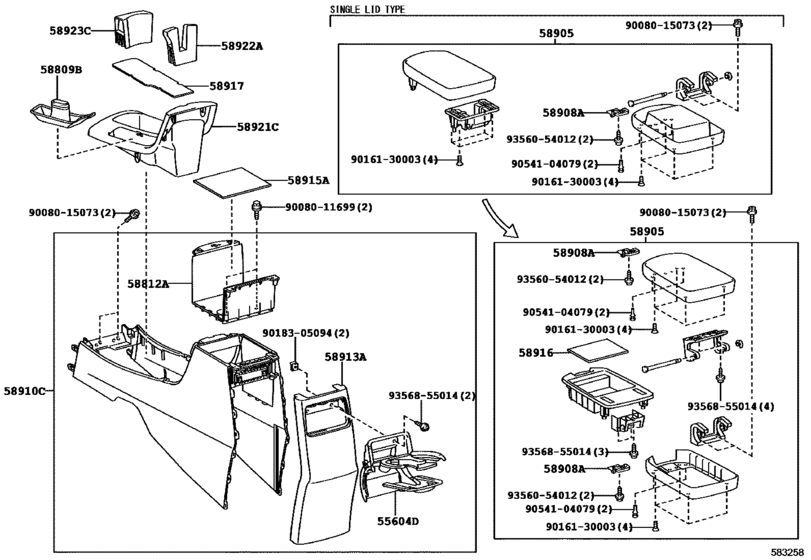

Console Box & Bracket ([01.2008 - ] (0801- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55604D
|
55604D
55604-02020-B0
Holder Sub-Assy, Instrument Panel Cup
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
55604-02020-B0 |
— | ||
|
58809B
|
58809B
58809-02010-B0
Cover Sub-Assy, Parking Brake Hole
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
58809-02010-B0 |
— | ||
| replacement | |||||
|
58809B
|
58809B
58809-02020-B0
Cover Sub-Assy, Parking Brake Hole
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
58809-02020-B0 |
— | ||
|
58812A
|
58812A
58812-02100-B0
Box, Console, Lower
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
58812-02100-B0 |
— | ||
|
58905
|
58905
58905-02440-B0
Door Sub-Assy, Console Compartment
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
58905-02440-B0 |
— | ||
|
58908A
|
58908A
58908-32040 Lock Sub-Assy, Console Compartment Door[01.2008 - 12.2010] AZE14# |
58908-32040 |
from US $8.29 |
||
|
58910C
|
58910C
58910-02100-B0
Box Assy, Console, Rear
[01.2008 - 12.2010] AZE141,146,ZRE142 DK.GRAY,TRIM1# |
58910-02100-B0 |
— | ||
|
58913A
|
58913A
58913-02010-B0
Panel, Box, No.3
[01.2008 - 12.2010] AZE141,146,ZRE142 DK.GRAY,TRIM1# |
58913-02010-B0 |
— | ||
|
58915A
|
58915A
58915-02030
Damper, Console Box, Rear
[01.2008 - 12.2010] AZE14#,ZRE142 |
58915-02030 |
— | ||
|
58916
|
58916
58916-02100
Mat, Box Bottom
[01.2008 - 12.2010] AZE14# |
58916-02100 |
— | ||
|
58917
|
58917
58917-01020-B0
Mat, Box Bottom, No.2
[01.2008 - 04.2009] AZE14#,ZRE142 DK.GRAY,TRIM1# |
58917-01020-B0 |
— | ||
|
58921C
|
58921C
58921-02010-B0
Plate, Box, Upper No.1
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
58921-02010-B0 |
— | ||
|
58922A
|
58922A
58922-02010-B0
Plate, Box, Upper No.2
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
58922-02010-B0 |
— | ||
|
58923C
|
58923C
58923-02050-B0
Plate, Box, Upper No.3
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
58923-02050-B0 |
— | ||
|
9008011699
|
9008011699
90080-11699
Bolt, W/washer
|
90080-11699 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
|
9016130003
|
9016130003
90161-30003 SCREW COUNTERSUNK |
90161-30003 |
US $0.52 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.79 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
