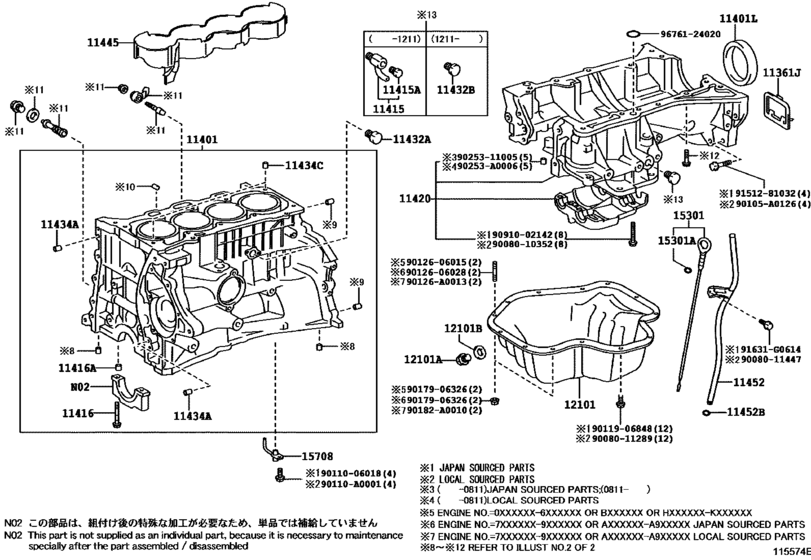

Cylinder Block ([01.2008 - ] (0801- )2AZFE) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-0H021
Cover, Flywheel Housing Under
[01.2008 - 12.2010] 2AZFE..AZE14# (L) |
11361-0H021 |
— | ||
|
11361J
|
11361J
11361-28010 Cover, Flywheel Housing Under[01.2008 - 12.2010] 2AZFE..AZE14# (J) |
11361-28010 |
from US $5.17 |
||
|
11401
|
11401
11410-09230
Block Sub-Assy, Cylinder
[01.2008 - 11.2008] 2AZFE..AZE141,146 (L),*108 |
11410-09230 |
— | ||
| replacements | |||||
|
11401
|
11401
11400-28H00 Block Assy, Short[01.2008 - 11.2008] 2AZFE..AZE141,146 (L),*108 |
11400-28H00 |
US $3,130.40 |
||
|
11401
|
11401
11400-28H10 Block Assy, Short[01.2008 - 11.2008] 2AZFE..AZE141,146 (L),*108 |
11400-28H10 |
US $3,130.40 |
||
|
11401
|
11401
11410-09270 Block Sub-Assy, CylinderCYLINDER [11.2008 - 12.2010] 2AZFE..AZE141,146 (L),*108 |
11410-09270 |
US $2,839.20 |
||
| replacements | |||||
|
11401
|
11401
11400-28H00 Block Assy, Short[11.2008 - 12.2010] 2AZFE..AZE141,146 (L),*108 |
11400-28H00 |
US $3,130.40 |
||
|
11401
|
11401
11400-28H10 Block Assy, Short[11.2008 - 12.2010] 2AZFE..AZE141,146 (L),*108 |
11400-28H10 |
US $3,130.40 |
||
|
11401
|
11401
11410-29345
Block Sub-Assy, Cylinder
[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 (J),*108 |
11410-29345 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-29346 Block Sub-Assy, Cylinder[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 (J),*108 |
11410-29346 |
US $2,761.20 |
||
|
11401L
|
11401L
90311-89003
Seal, Engine Rear Oil
[01.2008 - 12.2010] 2AZFE..AZE14# *195 |
90311-89003 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[01.2008 - 12.2010] 2AZFE..AZE14# *195 |
90311-89010 |
from US $23.35 |
||
|
11401L
|
11401L
90311-89007
Seal, Engine Rear Oil
[01.2008 - 12.2010] 2AZFE..AZE141,146 *108 |
90311-89007 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[01.2008 - 12.2010] 2AZFE..AZE141,146 *108 |
90311-89010 |
from US $23.35 |
||
|
11415
|
11415
90910-09120 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108; 2AZFE..AZE144 PACKAGE OPTION 1-TOWING PACKAGE,*195 |
90910-09120 |
from US $9.28 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108; 2AZFE..AZE144 PACKAGE OPTION 1-TOWING PACKAGE,*195 |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02124
Bolt(For Crankshaft Bearing Cap Set)
[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
90910-02124 |
— | ||
| replacement | |||||
|
11416
|
11416
90910-02206 BOLT[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
90910-02206 |
from US $2.73 |
||
|
11416A
|
11416A
90253-13017 Pin, Ring W/head[11.2008 - 12.2010] 2AZFE..AZE14# (J),*195; 2AZFE..AZE141,146 (J),*108 |
90253-13017 |
from US $1.35 |
||
|
11416A
|
11416A
90253-A0008
Pin, Ring(For Crankshaft Bearing Cap Set)
[01.2008 - 11.2008] 2AZFE..AZE14# (L),*195; 2AZFE..AZE141,146 (L),*108 |
90253-A0008 |
— | ||
| replacement | |||||
|
11416A
|
11416A
90253-13017 Pin, Ring W/head[01.2008 - 11.2008] 2AZFE..AZE14# (L),*195; 2AZFE..AZE141,146 (L),*108 |
90253-13017 |
from US $1.35 |
||
|
11420
|
11420
11420-0H030
Crankcase Assy, Stiffening
[01.2008 - 02.2009] 2AZFE..AZE141,146 *108 |
11420-0H030 |
— | ||
| replacement | |||||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[01.2008 - 02.2009] 2AZFE..AZE141,146 *108 |
11420-28021 |
from US $402.71 |
||
|
11420
|
11420
11420-0H050
Crankcase Assy, Stiffening
[01.2008 - 10.2010] 2AZFE..AZE14# (L),*195 |
11420-0H050 |
— | ||
| replacement | |||||
|
11420
|
11420
11420-0H051
Crankcase Assy, Stiffening
[01.2008 - 10.2010] 2AZFE..AZE14# (L),*195 |
11420-0H051 |
— | ||
|
11420
|
11420
11420-0H051
Crankcase Assy, Stiffening
[10.2010 - 12.2010] 2AZFE..AZE14# (L),*195 |
11420-0H051 |
— | ||
|
11420
|
11420
11420-0H060
Crankcase Assy, Stiffening
[02.2009 - 12.2010] 2AZFE..AZE14# *108 |
11420-0H060 |
— | ||
| replacement | |||||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[02.2009 - 12.2010] 2AZFE..AZE14# *108 |
11420-28021 |
from US $402.71 |
||
|
11420
|
11420
11420-28020 Crankcase Assy, Stiffening[01.2008 - 10.2010] 2AZFE..AZE14# (J),*195 |
11420-28020 |
US $765.86 |
||
| replacement | |||||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[01.2008 - 10.2010] 2AZFE..AZE14# (J),*195 |
11420-28021 |
from US $402.71 |
||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[10.2010 - 12.2010] 2AZFE..AZE14# (J),*195 |
11420-28021 |
from US $402.71 |
||
|
11432A
|
11432A
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108; 2AZFE..AZE144 PACKAGE OPTION 1-TOWING PACKAGE,*195 |
90345-52001 |
from US $4.12 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[01.2008 - 11.2008] 2AZFE..AZE141,146 L=18,OD=8,(J),*108 |
90250-08120 |
from US $1.01 |
||
|
11434A
|
11434A
90250-A0016
Pin, Straight, No.1
[01.2008 - 11.2008] 2AZFE..AZE141,146 L=18,OD=8,(L),*108 |
90250-A0016 |
— | ||
| replacement | |||||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[01.2008 - 11.2008] 2AZFE..AZE141,146 L=18,OD=8,(L),*108 |
90250-08120 |
from US $1.01 |
||
|
11434C
|
11434C
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[01.2008 - 11.2008] 2AZFE..AZE141,146 L=12,OD=14,(J),*108 |
90253-14003 |
from US $1.31 |
||
|
11434C
|
11434C
90253-A0009
Pin, Straight (For Cylinder Head Set)
[01.2008 - 11.2008] 2AZFE..AZE141,146 L=12,OD=14,(L),*108 |
90253-A0009 |
— | ||
| replacement | |||||
|
11434C
|
11434C
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[01.2008 - 11.2008] 2AZFE..AZE141,146 L=12,OD=14,(L),*108 |
90253-14003 |
from US $1.31 |
||
|
11445
|
11445
11445-28020 Spacer, Cylinder Block Water Jacket[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
11445-28020 |
from US $15.85 |
||
|
11452
|
11452
11452-0H050
Guide, Oil Level Gage
[01.2008 - 12.2010] 2AZFE..AZE141,146 *108 |
11452-0H050 |
— | ||
|
11452
|
11452
11452-28040 Guide, Oil Level Gage[01.2008 - 12.2010] 2AZFE..AZE14# *195 |
11452-28040 |
US $18.93 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[01.2008 - 12.2010] 2ZRFE..ZRE142; 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
96721-19010 |
from US $1.58 |
||
|
12101
|
12101
12101-0H010
Pan Sub-Assy, Oil
[01.2008 - 10.2008] 2AZFE..AZE141,146 *108 |
12101-0H010 |
— | ||
|
12101
|
12101
12101-28030 Pan Sub-Assy, Oil[01.2008 - 12.2010] 2AZFE..AZE14# *195 |
12101-28030 |
from US $110.47 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[01.2008 - 12.2010] 2ZRFE..ZRE142; 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[01.2008 - 12.2010] 2ZRFE..ZRE142; 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[01.2008 - 12.2010] 2ZRFE..ZRE142; 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
90430-12031 |
from US $0.84 |
||
|
15301
|
15301
15301-28030 Gage Sub-Assy, Oil Level[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
15301-28030 |
US $13.40 |
||
| replacement | |||||
|
15301
|
15301
15301-28031 Gage Sub-Assy, Oil Level[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
15301-28031 |
from US $10.30 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
96741-19005 |
from US $2.42 |
||
|
15708
|
15708
15708-28010 Nozzle Sub-Assy, Oil, No.1[01.2008 - 09.2008] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
15708-28010 |
US $16.89 |
||
| replacement | |||||
|
15708
|
15708
15708-28011 Nozzle Sub-Assy, Oil, No.1[01.2008 - 09.2008] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
15708-28011 |
from US $8.33 |
||
|
15708
|
15708
15708-28011 Nozzle Sub-Assy, Oil, No.1[09.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
15708-28011 |
from US $8.33 |
||
|
90105A0126
|
90105A0126
90105-A0126
BOLT FLANGE
|
90105-A0126 |
— | ||
|
90110A0001
|
90110A0001
90110-A0001
New Genuine Part
|
90110-A0001 |
— | ||
|
90126A0013
|
90126A0013
90126-A0013
Bolt, Stud(For Oil Pan)
|
90126-A0013 |
— | ||
|
90182A0010
|
90182A0010
90182-A0010
New Genuine Part
|
90182-A0010 |
— | ||
|
90253A0006
|
90253A0006
90253-A0006
Pin, Ring(For Camshaft Bearing Cap Setting)
|
90253-A0006 |
— | ||
| replacement | |||||
|
90253A0006
|
90253A0006
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $1.08 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.86 |
||
|
9008010352
|
9008010352
90080-10352
New Genuine Part
|
90080-10352 |
— | ||
|
9008011289
|
9008011289
90080-11289
New Genuine Part
|
90080-11289 |
— | ||
|
9008011447
|
9008011447
90080-11447
New Genuine Part
|
90080-11447 |
— | ||
|
9011006018
|
9011006018
90110-06018 Bolt(For Rear Steering Worm Control Cam) |
90110-06018 |
from US $0.70 |
||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
from US $0.70 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.23 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.64 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.66 |
||
|
9025311005
|
9025311005
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $1.08 |
||
|
9091002142
|
9091002142
90910-02142 New Genuine Part |
90910-02142 |
US $3.23 |
||
|
9151281032
|
9151281032
91512-81032 New Genuine Part |
91512-81032 |
US $1.97 |
||
|
9676124020
|
9676124020
96761-24020 RING O |
96761-24020 |
from US $2.24 |
||
