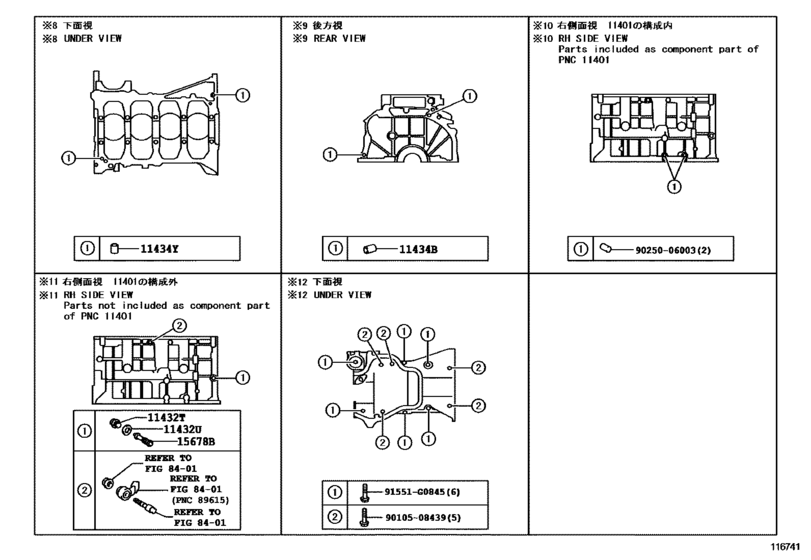

Cylinder Block ([01.2008 - ] (0801- )2AZFE) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11432T
|
11432T
90341-14013 Plug, W/head Taper Screw, No.1[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
90341-14013 |
from US $2.13 |
||
|
11432U
|
11432U
90430-14011 Gasket, Straight Screw Plug No.1(For Cylinder Block)[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
90430-14011 |
US $0.90 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[01.2008 - 11.2008] 2AZFE..AZE141,146 L=22,OD=10,(J),*108 |
90250-10113 |
from US $1.17 |
||
|
11434B
|
11434B
90250-A0018
Pin, Straight(For Timing Gear Cover Set)
[01.2008 - 11.2008] 2AZFE..AZE141,146 L=22,OD=10,(L),*108 |
90250-A0018 |
— | ||
| replacement | |||||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[01.2008 - 11.2008] 2AZFE..AZE141,146 L=22,OD=10,(L),*108 |
90250-10113 |
from US $1.17 |
||
|
11434Y
|
11434Y
90250-08074 Pin, Straight(For Timing Gear Case)[01.2008 - 11.2008] 2AZFE..AZE141,146 (J),*108 |
90250-08074 |
US $1.79 |
||
|
11434Y
|
11434Y
90250-A0015
Pin, Straight(For Timing Gear Case)
[01.2008 - 11.2008] 2AZFE..AZE141,146 (L),*108 |
90250-A0015 |
— | ||
| replacement | |||||
|
11434Y
|
11434Y
90250-08074 Pin, Straight(For Timing Gear Case)[01.2008 - 11.2008] 2AZFE..AZE141,146 (L),*108 |
90250-08074 |
US $1.79 |
||
|
15678B
|
15678B
15678-28010 Filter, Oil Control Valve[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
15678-28010 |
from US $5.11 |
||
|
91551G0845
|
91551G0845
91551-G0845 Bolt(For Camshaft Housing Set) |
91551-G0845 |
US $1.79 |
||
|
9010508439
|
9010508439
90105-08439 BOLT FLANGE |
90105-08439 |
US $2.48 |
||
|
9025006003
|
9025006003
90250-06003 Pin, Straight |
90250-06003 |
US $1.61 |
||
