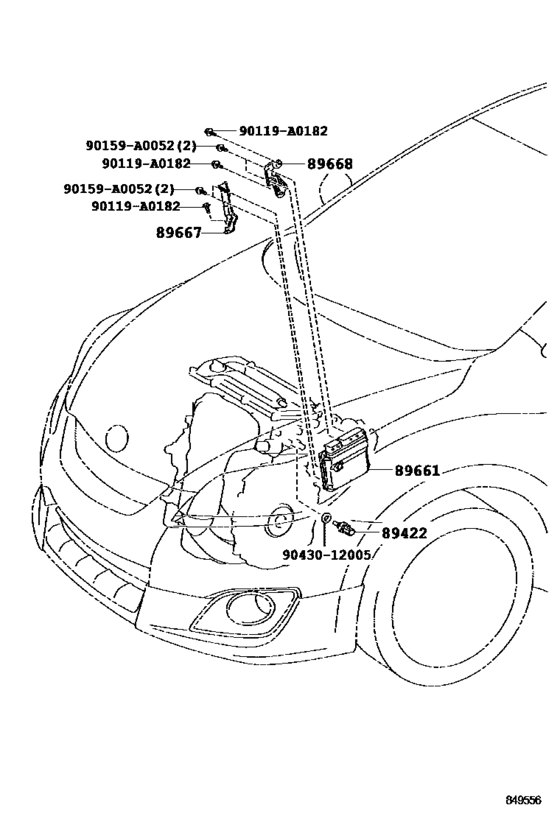

Electronic Fuel Injection System ([01.2008 - ] (0801- )AZE14#) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[01.2008 - 12.2010] AZE14#,ZRE142 |
89422-33030 |
from US $40.49 |
||
|
89661
|
89661
89661-02L10
Computer, Engine Control
[01.2008 - 02.2009] AZE141,146..5F |
89661-02L10 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-02L11
Computer, Engine Control
[01.2008 - 02.2009] AZE141,146..5F |
89661-02L11 |
— | ||
|
89661
|
89661
89661-02V00
Computer, Engine Control
[02.2009 - 07.2010] AZE141,146..5F |
89661-02V00 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-02V01
Computer, Engine Control
[02.2009 - 07.2010] AZE141,146..5F |
89661-02V01 |
— | ||
|
89661
|
89661
89661-02V01
Computer, Engine Control
[07.2010 - 12.2010] AZE141,146..5F |
89661-02V01 |
— | ||
|
89667
|
89667
89667-02230
Bracket, Engine Control Computer
[01.2008 - 12.2010] AZE14# |
89667-02230 |
— | ||
|
89668
|
89668
89668-02200
Bracket, Engine Control Computer, No.2
[01.2008 - 12.2010] AZE14# |
89668-02200 |
— | ||
|
90119A0182
|
90119A0182
90119-A0182
New Genuine Part
|
90119-A0182 |
— | ||
|
90159A0052
|
90159A0052
90159-A0052
New Genuine Part
|
90159-A0052 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
