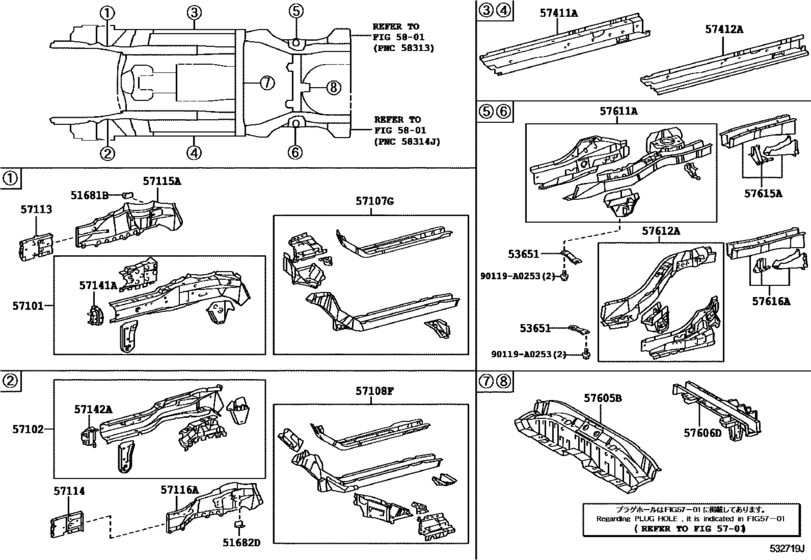

Floor Side Member ([01.2008 - 12.2010] (0801-1012)AZE141,ZRE142) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51681B
|
51681B
51681-02020 Plate, Front Brake Flexible Hose Support, Rh[01.2008 - 12.2010] AZE14#,ZRE142 |
51681-02020 |
US $7.43 |
||
|
51682D
|
51682D
51682-02020 Plate, Front Brake Flexible Hose Support, Lh[01.2008 - 12.2010] AZE14#,ZRE142 |
51682-02020 |
US $7.43 |
||
|
53651
|
53651
53651-02020
Brace, Rear Floor Side Member
[01.2008 - 12.2010] AZE141,ZRE142 |
53651-02020 |
— | ||
|
57101
|
57101
57101-02915
Member Sub-Assy, Front Side, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57101-02915 |
— | ||
|
57102
|
57102
57102-02919
Member Sub-Assy, Front Side, Lh
[01.2008 - 12.2010] AZE14# |
57102-02919 |
— | ||
|
57107G
|
57107G
57107-02902
Bracket Sub-Assy, Front Suspension Member Mounting, Rear Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57107-02902 |
— | ||
|
57108F
|
57108F
57108-02902
Bracket Sub-Assy, Front Suspension Member Mounting, Rear Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57108-02902 |
— | ||
|
57113
|
57113
57113-02100
Extension, Front Side Member, Rh
[01.2008 - 08.2010] AZE14#,ZRE142 |
57113-02100 |
— | ||
|
57113
|
57113
57113-02101
Extension, Front Side Member, Rh
[08.2010 - 12.2010] AZE14#,ZRE142 |
57113-02101 |
— | ||
|
57114
|
57114
57114-02100
Extension, Front Side Member, Lh
[01.2008 - 08.2010] AZE14#,ZRE142 |
57114-02100 |
— | ||
|
57114
|
57114
57114-02101
Extension, Front Side Member, Lh
[08.2010 - 12.2010] AZE14#,ZRE142 |
57114-02101 |
— | ||
|
57115A
|
57115A
57115-02030 Plate, Front Side Member, Outer Rh[01.2008 - 12.2010] AZE14#,ZRE142 |
57115-02030 |
US $72.65 |
||
|
57116A
|
57116A
57116-02030 Plate, Front Side Member, Outer Lh[01.2008 - 12.2010] AZE14#,ZRE142 |
57116-02030 |
US $75.71 |
||
| replacement | |||||
|
57116A
|
57116A
57116-02031 Plate, Front Side Member, Outer Lh[01.2008 - 12.2010] AZE14#,ZRE142 |
57116-02031 |
from US $75.71 |
||
|
57141A
|
57141A
57013-02060
Support, Front Bumper Arm, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57013-02060 |
— | ||
|
57142A
|
57142A
57014-02060
Support, Front Bumper Arm, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57014-02060 |
— | ||
|
57411A
|
57411A
57401-02140
Member, Floor Side, Inner Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57401-02140 |
— | ||
|
57412A
|
57412A
57402-02140
Member, Floor Side, Inner Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57402-02140 |
— | ||
|
57605B
|
57605B
57605-02080
Member Sub-Assy, Rear Floor Cross, No.1
[01.2008 - 12.2010] AZE141,146,ZRE142 |
57605-02080 |
— | ||
|
57606D
|
57606D
57606-01040 Member Sub-Assy, Rear Absorber Mounting[01.2008 - 12.2010] AZE141,ZRE142 |
57606-01040 |
US $165.98 |
||
|
57611A
|
57611A
57611-02904
Member Sub-Assy, Rear Floor Side, Rh
[01.2008 - 12.2010] AZE141,ZRE142 |
57611-02904 |
— | ||
|
57612A
|
57612A
57612-02904
Member Sub-Assy, Rear Floor Side, Lh
[01.2008 - 12.2010] AZE141,ZRE142 |
57612-02904 |
— | ||
|
57615A
|
57615A
57615-01904
Member, Rear Floor Side, Rear Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57615-01904 |
— | ||
|
57616A
|
57616A
57616-01905
Member, Rear Floor Side, Rear Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
57616-01905 |
— | ||
|
90119A0253
|
90119A0253
90119-A0253
New Genuine Part
|
90119-A0253 |
— | ||
