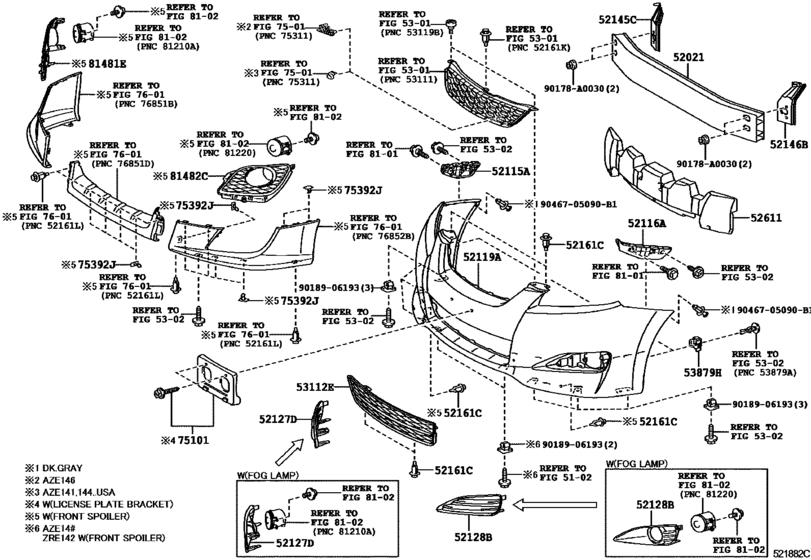

Front Bumper & Bumper Stay ([01.2008 - 12.2010] (0801-1012)) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-02160
Reinforcement Sub-Assy, Front Bumper
[01.2008 - 12.2010] AZE14#,ZRE142 |
52021-02160 |
— | ||
|
52115A
|
52115A
52115-02120
Support, Front Bumper Side, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
52115-02120 |
— | ||
|
52116A
|
52116A
52116-02120
Support, Front Bumper Side, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
52116-02120 |
— | ||
|
52119A
|
52119A
52119-02994
Cover, Front Bumper
[01.2008 - 12.2010] AZE141..CND;AZE144,ZRE142 |
52119-02994 |
— | ||
|
52119A
|
52119A
52119-02995
Cover, Front Bumper
[01.2008 - 12.2010] AZE146; AZE141..CND;AZE144,ZRE142 FRONT SPOILER-WITH&FRONT FOG LAMP-WITH |
52119-02995 |
— | ||
|
52127D
|
52127D
52127-02230
Cover, Front Bumper Hole, Rh
[01.2008 - 12.2010] AZE141..CND;AZE144,ZRE142; ZRE142;AZE141..CND SPORTS PACKAGE&FRONT FOG LAMP-WITH; AZE141..CND;AZE144,ZRE142 FRONT SPOILER-WITH&FRONT FOG LAMP-WITH |
52127-02230 |
— | ||
|
52127D
|
52127D
52127-02240
Cover, Front Bumper Hole, Rh
[01.2008 - 12.2010] AZE141..CND;AZE144,ZRE142 FRONT FOG LAMP-WITH |
52127-02240 |
— | ||
|
52128B
|
52128B
52128-02260
Cover, Front Bumper Hole, Lh
[01.2008 - 12.2010] AZE141..CND;AZE144,ZRE142; ZRE142;AZE141..CND SPORTS PACKAGE&FRONT FOG LAMP-WITH; AZE141..CND;AZE144,ZRE142 FRONT SPOILER-WITH&FRONT FOG LAMP-WITH |
52128-02260 |
— | ||
|
52128B
|
52128B
52128-02270
Cover, Front Bumper Hole, Lh
[01.2008 - 12.2010] AZE141..CND;AZE144,ZRE142 FRONT FOG LAMP-WITH |
52128-02270 |
— | ||
|
52145C
|
52145C
52145-02140
Bracket, Front Bumper Side Mounting, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
52145-02140 |
— | ||
|
52146B
|
52146B
52146-02130
Bracket, Front Bumper Side Mounting, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
52146-02130 |
— | ||
|
52161C
|
52161C
52161-02020 Clip[01.2008 - 12.2010] AZE141..CND;AZE144,ZRE142 |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161C
|
52161C
52161-16010 Clip[01.2008 - 12.2010] AZE141..CND;AZE144,ZRE142 |
52161-16010 |
from US $1.68 |
||
|
52611
|
52611
52611-02160
Absorber, Front Bumper Energy
[01.2008 - 10.2009] AZE14#,ZRE142 |
52611-02160 |
— | ||
| replacement | |||||
|
52611
|
52611
52611-02161
Absorber, Front Bumper Energy
[01.2008 - 10.2009] AZE14#,ZRE142 |
52611-02161 |
— | ||
|
52611
|
52611
52611-02161
Absorber, Front Bumper Energy
[11.2009 - 12.2010] AZE14#,ZRE142 |
52611-02161 |
— | ||
|
53112E
|
53112E
53112-02110
Grille, Radiator, Lower No.1
[01.2008 - 12.2010] AZE14#,ZRE142 |
53112-02110 |
— | ||
|
53879H
|
53879H
53879-58010 Retainer, Front Fender Liner[01.2008 - 12.2010] AZE14#,ZRE142 |
53879-58010 |
from US $3.24 |
||
|
75101
|
75101
75101-02030
Bracket Sub-Assy, Front License Plate
[01.2008 - 12.2010] AZE14#,ZRE142 LICENSE PLATE BRACKET-WITH |
75101-02030 |
— | ||
|
75392J
|
75392J
75392-35200 Retainer[01.2008 - 12.2010] AZE146; AZE141..CND;AZE144,ZRE142 FRONT SPOILER-WITH&FRONT FOG LAMP-WITH |
75392-35200 |
from US $1.21 |
||
|
81481E
|
81481E
81481-02130
Cover, Fog Lamp, Rh
[01.2008 - 12.2010] AZE146; AZE141..CND;AZE144,ZRE142 FRONT SPOILER-WITH&FRONT FOG LAMP-WITH |
81481-02130 |
— | ||
|
81482C
|
81482C
81482-02120
Cover, Fog Lamp, Lh
[01.2008 - 12.2010] AZE146; AZE141..CND;AZE144,ZRE142 FRONT SPOILER-WITH&FRONT FOG LAMP-WITH |
81482-02120 |
— | ||
|
90178A0030
|
90178A0030
90178-A0030
New Genuine Part
|
90178-A0030 |
— | ||
|
9018906193
|
9018906193
90189-06193 Grommet(For Engine Under Cover) |
90189-06193 |
from US $0.74 |
||
|
9046705090B1
|
9046705090B1
90467-05090-B1 Clip, Rear Bumper Side |
90467-05090-B1 |
from US $1.23 |
||
