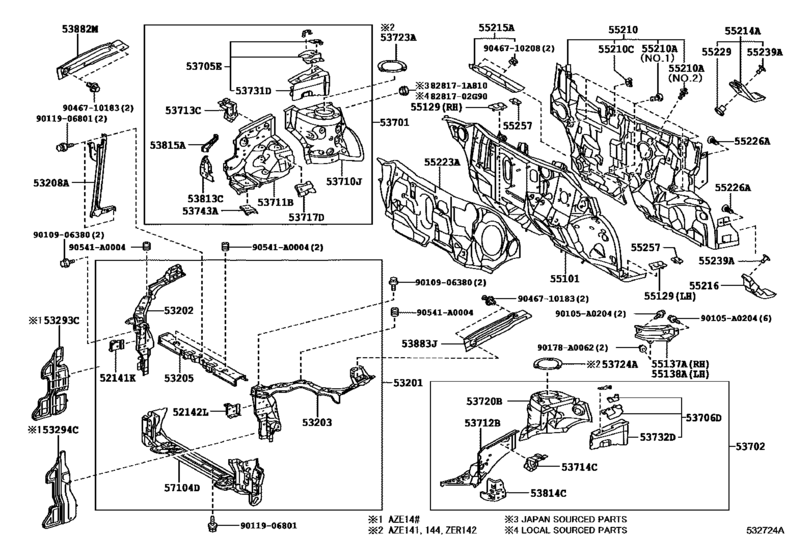

Front Fender Apron & Dash Panel ([01.2008 - ] (0801- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141K
|
52141K
52141-02090
Bracket, Front Energy Absorber Mounting, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
52141-02090 |
— | ||
|
52142L
|
52142L
52142-02050
Bracket, Front Energy Absorber Mounting, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
52142-02050 |
— | ||
|
53201
|
53201
53201-02220
Support Sub-Assy, Radiator
[01.2008 - 12.2010] AZE14#,ZRE142 |
53201-02220 |
— | ||
|
53202
|
53202
53202-02110
Support Sub-Assy, Radiator, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53202-02110 |
— | ||
|
53203
|
53203
53203-02120
Support Sub-Assy, Radiator, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53203-02120 |
— | ||
|
53205
|
53205
53205-02150
Support Sub-Assy, Radiator, Upper
[01.2008 - 08.2010] AZE14#,ZRE142 |
53205-02150 |
— | ||
|
53205
|
53205
53205-02151
Support Sub-Assy, Radiator, Upper
[08.2010 - 12.2010] AZE14#,ZRE142 |
53205-02151 |
— | ||
|
53208A
|
53208A
53208-02090
Support Sub-Assy, Hood Lock
[01.2008 - 12.2010] AZE14#,ZRE142 |
53208-02090 |
— | ||
|
53293C
|
53293C
53293-02060
Deflector, Radiator Side, Rh
[01.2008 - 12.2010] AZE14# |
53293-02060 |
— | ||
|
53294C
|
53294C
53294-02060 Deflector, Radiator Side, LhRADIATOR SIDE, LH [01.2008 - 12.2010] AZE14# |
53294-02060 |
US $56.75 |
||
|
53701
|
53701
53701-02180
Apron Sub-Assy, Front Fender, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53701-02180 |
— | ||
|
53702
|
53702
53702-02130
Apron Sub-Assy, Front Fender, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53702-02130 |
— | ||
|
53705E
|
53705E
53705-02030
Member Sub-Assy, Front Apron To Cowl Side, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53705-02030 |
— | ||
|
53706D
|
53706D
53706-02030
Member Sub-Assy, Front Apron To Cowl Side, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53706-02030 |
— | ||
|
53710J
|
53710J
53710-02903
Apron Assy, Front Fender, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53710-02903 |
— | ||
|
53711B
|
53711B
53711-02090 Apron, Front Fender, Front RhFRONT FENDER, FRONT RH [01.2008 - 12.2010] AZE14#,ZRE142 |
53711-02090 |
US $78.99 |
||
|
53712B
|
53712B
53712-02100
Apron, Front Fender, Front Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53712-02100 |
— | ||
|
53713C
|
53713C
53713-02060
Extension, Front Fender Apron, Front Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53713-02060 |
— | ||
|
53714C
|
53714C
53714-02050
Extension, Front Fender Apron, Front Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53714-02050 |
— | ||
|
53717D
|
53717D
53717-02020
Gusset, Fender Apron, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53717-02020 |
— | ||
|
53720B
|
53720B
53720-02903
Apron Assy, Front Fender, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53720-02903 |
— | ||
|
53723A
|
53723A
53723-02080
Reinforcement, Front Spring Support, Rh
[01.2008 - 12.2010] AZE141,144,ZRE142; AZE141 SPORTS PACKAGE |
53723-02080 |
— | ||
| replacement | |||||
|
53723A
|
53723A
53723-02081
Reinforcement, Front Spring Support, Rh
[01.2008 - 12.2010] AZE141,144,ZRE142; AZE141 SPORTS PACKAGE |
53723-02081 |
— | ||
|
53724A
|
53724A
53723-02080
Reinforcement, Front Spring Support, Rh
[01.2008 - 12.2010] AZE141,144,ZRE142; AZE141 SPORTS PACKAGE |
53723-02080 |
— | ||
| replacement | |||||
|
53724A
|
53724A
53723-02081
Reinforcement, Front Spring Support, Rh
[01.2008 - 12.2010] AZE141,144,ZRE142; AZE141 SPORTS PACKAGE |
53723-02081 |
— | ||
|
53731D
|
53731D
53731-02060 Member, Front Apron To Cowl Side, Upper Rh[01.2008 - 12.2010] AZE14#,ZRE142 |
53731-02060 |
US $22.13 |
||
|
53732D
|
53732D
53732-02050 Member, Front Apron To Cowl Side, Upper Lh[01.2008 - 12.2010] AZE14#,ZRE142 |
53732-02050 |
US $22.13 |
||
|
53743A
|
53743A
53743-02010
Reinforcement, Front Fender Apron, Front Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53743-02010 |
— | ||
|
53813C
|
53813C
53813-02070
Extension, Front Fender, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53813-02070 |
— | ||
|
53814C
|
53814C
53814-02070 Extension, Front Fender, Lh[01.2008 - 12.2010] AZE14#,ZRE142 |
53814-02070 |
US $31.84 |
||
|
53815A
|
53815A
53815-02010
Reinforcement, Front Side Panel, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53815-02010 |
— | ||
|
53882M
|
53882M
53882-02040
Seal, Front Fender
[01.2008 - 12.2010] AZE14#,ZRE142 |
53882-02040 |
— | ||
|
53883J
|
53883J
53883-02040
Seal, Front Fender, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
53883-02040 |
— | ||
|
55101
|
55101
55101-02870
Panel Sub-Assy, Dash
[01.2008 - 12.2010] AZE141,146..5F; ZRE142..5F REAR WINDOW WIPER-WITH |
55101-02870 |
— | ||
|
55129
|
55129
55129-02060
Cover, Dash Panel Hole
[01.2008 - 12.2010] AZE14#,ZRE142 RH |
55129-02060 |
— | ||
|
55129
|
55129
55139-02050
Cover, Dash Panel Hole
[01.2008 - 12.2010] AZE14#,ZRE142 LH |
55139-02050 |
— | ||
|
55137A
|
55137A
55137-02060
Brace, Dash To Frame, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
55137-02060 |
— | ||
| replacement | |||||
|
55137A
|
55137A
55137-02061
Brace, Dash To Frame, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
55137-02061 |
— | ||
|
55138A
|
55138A
55138-02050
Brace, Dash To Frame, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
55138-02050 |
— | ||
| replacement | |||||
|
55138A
|
55138A
55138-02051
Brace, Dash To Frame, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
55138-02051 |
— | ||
|
55210
|
55210
55210-02300
Insulator Assy, Dash Panel
[01.2008 - 03.2010] AZE14#,ZRE142 |
55210-02300 |
— | ||
|
55210
|
55210
55210-02301
Insulator Assy, Dash Panel
[04.2010 - 12.2010] AZE14#,ZRE142 |
55210-02301 |
— | ||
|
55210A
|
55210A
90467-11122 Clip[01.2008 - 12.2010] AZE14#,ZRE142 NO.1 |
90467-11122 |
US $1.79 |
||
|
55210A
|
55210A
90467-11127 Clip[01.2008 - 12.2010] AZE14#,ZRE142 NO.2 |
90467-11127 |
US $1.51 |
||
|
55210C
|
55210C
90467-18016 Clip[01.2008 - 12.2010] AZE14#,ZRE142 |
90467-18016 |
US $1.31 |
||
|
55214A
|
55214A
55214-02060
Pad, Dash Panel Insulator, No.2
[01.2008 - 04.2010] AZE14#,ZRE142 |
55214-02060 |
— | ||
| replacement | |||||
|
55214A
|
55214A
55214-02100
Pad, Dash Panel Insulator, No.2
[01.2008 - 04.2010] AZE14#,ZRE142 |
55214-02100 |
— | ||
|
55214A
|
55214A
55214-02100
Pad, Dash Panel Insulator, No.2
[05.2010 - 12.2010] AZE14#,ZRE142 |
55214-02100 |
— | ||
|
55215A
|
55215A
55215-02060
Pad, Dash Panel Insulator, No.3
[01.2008 - 12.2010] AZE14#,ZRE142 |
55215-02060 |
— | ||
|
55216
|
55216
55216-02010
Pad, Dash Panel Insulator, No.4
[01.2008 - 12.2010] AZE14#,ZRE142 |
55216-02010 |
— | ||
|
55223A
|
55223A
55223-02210
Insulator, Dash Panel, Outer
[01.2008 - 12.2010] AZE14#,ZRE142 |
55223-02210 |
— | ||
|
55226A
|
55226A
90467-08186-C0 Clip(For Front Bumper), No.1[01.2008 - 12.2010] AZE14#,ZRE142 BLACK |
90467-08186-C0 |
from US $0.90 |
||
|
55229
|
55229
55229-48010 Plate, Dash Panel Insulator, No.4[01.2008 - 12.2010] AZE14#,ZRE142 |
55229-48010 |
US $1.41 |
||
|
55239A
|
55239A
55239-48020 Plate, Dash Panel Insulator, No.3[01.2008 - 12.2010] AZE14#,ZRE142 |
55239-48020 |
US $2.33 |
||
|
55257
|
55257
55257-02010
Cover, Dash Panel Opening
[01.2008 - 12.2010] AZE14#,ZRE142 |
55257-02010 |
— | ||
|
57104D
|
57104D
57104-02140
Member Sub-Assy, Front Cross
[01.2008 - 08.2010] AZE14#,ZRE142 |
57104-02140 |
— | ||
|
57104D
|
57104D
57104-02142
Member Sub-Assy, Front Cross
[09.2010 - 12.2010] AZE14#,ZRE142 |
57104-02142 |
— | ||
| replacement | |||||
|
57104D
|
57104D
57104-02143 Member Sub-Assy, Front Cross[09.2010 - 12.2010] AZE14#,ZRE142 |
57104-02143 |
US $249.07 |
||
|
90105A0204
|
90105A0204
90105-A0204
New Genuine Part
|
90105-A0204 |
— | ||
|
90178A0062
|
90178A0062
90178-A0062
New Genuine Part
|
90178-A0062 |
— | ||
|
90541A0004
|
90541A0004
90541-A0004
New Genuine Part
|
90541-A0004 |
— | ||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.94 |
||
|
8281702G90
|
8281702G90
82817-02G90
Protector, Wiring Harness, No.1
|
82817-02G90 |
— | ||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $1.08 |
||
|
9011906801
|
9011906801
90119-06801 New Genuine Part |
90119-06801 |
US $0.73 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.84 |
||
|
9046710208
|
9046710208
90467-10208 Clip |
90467-10208 |
US $1.10 |
||
