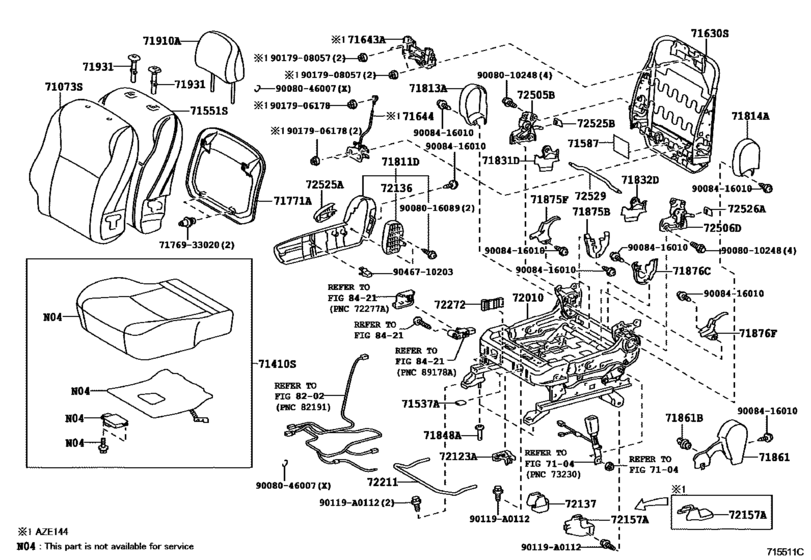

Front Seat & Seat Track ([01.2008 - 02.2009] PASSENGER SEAT (0801-0902)AZE141,144) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71073S
|
71073S
71073-02Q50-B1
Cover, Front Seat Back, Rh(For Separate Type)
[01.2008 - 02.2009] AZE141,144..CND GRAY,TRIM12; AZE141..USA SRS AIR BAG-WITH(DRIVER&PASSENGER),GRAY,TRIM12 |
71073-02Q50-B1 |
— | ||
|
71073S
|
71073S
71073-02Q50-B2
Cover, Front Seat Back, Rh(For Separate Type)
[01.2008 - 02.2009] AZE141,144..CND DK. GRAY,TRIM13; AZE141..USA SRS AIR BAG-WITH(DRIVER&PASSENGER),DK. GRAY,TRIM13 |
71073-02Q50-B2 |
— | ||
|
71073S
|
71073S
71073-02Q60-B1
Cover, Front Seat Back, Rh(For Separate Type)
[01.2008 - 02.2009] AZE141,144..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GRAY,TRIM12 |
71073-02Q60-B1 |
— | ||
|
71073S
|
71073S
71073-02Q60-B2
Cover, Front Seat Back, Rh(For Separate Type)
[01.2008 - 02.2009] AZE141,144..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK. GRAY,TRIM13 |
71073-02Q60-B2 |
— | ||
|
71410S
|
71410S
71001-0ZY50-B0
Cushion Assy, Front Seat, Rh(For Separate Type)
[01.2008 - 12.2010] AZE141,144 GRAY,TRIM12 |
71001-0ZY50-B0 |
— | ||
|
71410S
|
71410S
71001-0ZY50-B1
Cushion Assy, Front Seat, Rh(For Separate Type)
[01.2008 - 12.2010] AZE141,144 DARK GRAY,TRIM13 |
71001-0ZY50-B1 |
— | ||
|
71537A
|
71537A
71537-AA020
Protector, Front Seat Cushion
[01.2008 - 12.2010] AZE14#,ZRE142 |
71537-AA020 |
— | ||
|
71551S
|
71551S
71551-02510
Pad, Front Seat Back, Rh(For Separate Type)
[01.2008 - 02.2009] AZE141..CND; AZE141..USA SRS AIR BAG-WITH(DRIVER&PASSENGER) |
71551-02510 |
— | ||
|
71587
|
71587
71587-02010
Protector, Front Seat Back Edge
[08.2008 - 02.2009] AZE141..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
71587-02010 |
— | ||
|
71630S
|
71630S
71630-02430
Spring Assy, Front Seat Back, Rh(For Separate Type)
[01.2008 - 02.2009] AZE141..CND; AZE141..USA SRS AIR BAG-WITH(DRIVER&PASSENGER) |
71630-02430 |
— | ||
|
71643A
|
71643A
71643-04010
Unit, Active Headrest, Upr
[11.2008 - 02.2009] AZE141,144,ZRE142..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
71643-04010 |
— | ||
|
71643A
|
71643A
71643-12011 Unit, Active Headrest, Upr[01.2008 - 10.2008] AZE146;AZE141,144,ZRE142..USA; AZE141,ZRE142..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
71643-12011 |
US $62.46 |
||
|
71644
|
71644
71644-04010
Unit, Active Headrest, Lwr
[11.2008 - 02.2009] AZE141,144..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),LH SEAT |
71644-04010 |
— | ||
|
71644
|
71644
71644-04020
Unit, Active Headrest, Lwr
[11.2008 - 02.2009] AZE141,144..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),RH SEAT |
71644-04020 |
— | ||
|
71644
|
71644
71644-12030 Unit, Active Headrest, Lwr[01.2008 - 10.2008] AZE146;AZE141,144..USA LH SEAT; AZE141..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),LH SEAT |
71644-12030 |
US $50.38 |
||
|
71644
|
71644
71644-12040
Unit, Active Headrest, Lwr
[01.2008 - 02.2008] AZE144,146;AZE141..USA RH SEAT; AZE141..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),RH SEAT |
71644-12040 |
— | ||
| replacement | |||||
|
71644
|
71644
71644-12050
Unit, Active Headrest, Lwr
[01.2008 - 02.2008] AZE144,146;AZE141..USA RH SEAT; AZE141..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),RH SEAT |
71644-12050 |
— | ||
|
71644
|
71644
71644-12050
Unit, Active Headrest, Lwr
[03.2008 - 10.2008] AZE146;AZE141,144..USA RH SEAT; AZE141..CND SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),RH SEAT |
71644-12050 |
— | ||
|
71771A
|
71771A
71771-02020-B0
Board, Front Seat Back
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
71771-02020-B0 |
— | ||
|
71811D
|
71811D
71811-02290-B0
Shield, Front Seat Cushion, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
71811-02290-B0 |
— | ||
|
71813A
|
71813A
71813-02010-B0
Shield, Front Seat Back, Rh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
71813-02010-B0 |
— | ||
|
71814A
|
71814A
71814-02020-B0
Shield, Front Seat Back, Lh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
71814-02020-B0 |
— | ||
|
71831D
|
71831D
71831-02020-B0
Cover, Front Seat Hinge, Rh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
71831-02020-B0 |
— | ||
|
71832D
|
71832D
71832-02020-B0
Cover, Front Seat Hinge, Lh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
71832-02020-B0 |
— | ||
|
71848A
|
71848A
71848-02010
Cap, Seat Adjuster Cover, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
71848-02010 |
— | ||
|
71861
|
71861
71861-02120-B0
Shield, Front Seat Cushion, Inner Rh
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
71861-02120-B0 |
— | ||
|
71861B
|
71861B
71769-33020 Clip, Front Seat Cushion Shield, Lh[01.2008 - 12.2010] AZE14#,ZRE142 |
71769-33020 |
US $0.87 |
||
|
71875B
|
71875B
71875-02140-B0
Cover, Reclining Adjuster Inside, Rh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
71875-02140-B0 |
— | ||
|
71875F
|
71875F
71875-02130-B0
Cover, Reclining Adjuster Inside, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
71875-02130-B0 |
— | ||
|
71876C
|
71876C
71876-02140-B0
Cover, Reclining Adjuster Inside, Lh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
71876-02140-B0 |
— | ||
|
71876F
|
71876F
71876-02130-B0
Cover, Reclining Adjuster Inside, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
71876-02130-B0 |
— | ||
|
71910A
|
71910A
71910-02B50-B0
Headrest Assy, Front Seat
[01.2008 - 10.2009] AZE141,144,ZRE142 DK. GRAY,TRIM13 |
71910-02B50-B0 |
— | ||
|
71910A
|
71910A
71910-02B50-B1
Headrest Assy, Front Seat
[01.2008 - 10.2009] AZE141,144,ZRE142 GRAY,TRIM12 |
71910-02B50-B1 |
— | ||
|
71910A
|
71910A
71910-02B51-B0
Headrest Assy, Front Seat
[06.2010 - 09.2010] AZE141,144,ZRE142 DK. GRAY,TRIM13 |
71910-02B51-B0 |
— | ||
| replacement | |||||
|
71910A
|
71910A
71910-02F60-B0
Headrest Assy, Front Seat
[06.2010 - 09.2010] AZE141,144,ZRE142 DK. GRAY,TRIM13 |
71910-02F60-B0 |
— | ||
|
71910A
|
71910A
71910-02B51-B1
Headrest Assy, Front Seat
[06.2010 - 09.2010] AZE141,144,ZRE142 GRAY,TRIM12 |
71910-02B51-B1 |
— | ||
| replacement | |||||
|
71910A
|
71910A
71910-02F60-B1
Headrest Assy, Front Seat
[06.2010 - 09.2010] AZE141,144,ZRE142 GRAY,TRIM12 |
71910-02F60-B1 |
— | ||
|
71910A
|
71910A
71910-02F60-B0
Headrest Assy, Front Seat
[09.2010 - 12.2010] AZE141,144,ZRE142 DK. GRAY,TRIM13 |
71910-02F60-B0 |
— | ||
|
71910A
|
71910A
71910-02F60-B1
Headrest Assy, Front Seat
[09.2010 - 12.2010] AZE141,144,ZRE142 GRAY,TRIM12 |
71910-02F60-B1 |
— | ||
|
71931
|
71931
71930-44020-B0 Support Assy, Front Seat Headrest[01.2008 - 12.2010] AZE14#,ZRE142 W(LOCK),DK.GRAY,TRIM1# |
71930-44020-B0 |
US $11.36 |
||
|
71931
|
71931
71931-47010-B2 Support Assy, Front Seat Headrest[01.2008 - 12.2010] AZE14#,ZRE142 W/O(LOCK),DK.GRAY,TRIM1# |
71931-47010-B2 |
US $6.99 |
||
|
72010
|
72010
72010-02400
Adjuster Assy, Front Seat, Rh
[01.2008 - 12.2010] AZE141,146 |
72010-02400 |
— | ||
|
72123A
|
72123A
72123-02030
Cover, Seat Track Bracket, Outer Front Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
72123-02030 |
— | ||
|
72136
|
72136
72136-02060
Spacer, Seat Track, Lower No.1
[01.2008 - 12.2010] AZE14#,ZRE142 |
72136-02060 |
— | ||
|
72137
|
72137
72137-02120-B0
Cover, Seat Track, Outer Rh
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
72137-02120-B0 |
— | ||
|
72157A
|
72157A
72157-02120-B0
Cover, Seat Track Bracket, Inner Rh
[01.2008 - 12.2010] AZE141,146,ZRE142 DK.GRAY,TRIM1# |
72157-02120-B0 |
— | ||
|
72211
|
72211
72211-02090
Handle, Seat Track Adjusting
[01.2008 - 12.2010] AZE14#,ZRE142 |
72211-02090 |
— | ||
|
72272
|
72272
72272-02060
Clamp, Seat Track Control Cable
[01.2008 - 12.2010] AZE14#,ZRE142 |
72272-02060 |
— | ||
|
72505B
|
72505B
72505-02160
Lock Sub-Assy, Front Seat Back, Rh
[01.2008 - 12.2010] AZE14# |
72505-02160 |
— | ||
|
72506D
|
72506D
72506-02160
Lock Sub-Assy, Front Seat Back, Lh
[01.2008 - 12.2010] AZE14# |
72506-02160 |
— | ||
|
72525A
|
72525A
72525-AA040-B1
Handle, Reclining Adjuster Release, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
72525-AA040-B1 |
— | ||
|
72525B
|
72525B
72525-01030-B0 Handle, Reclining Adjuster Release, Lh[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
72525-01030-B0 |
US $3.49 |
||
|
72526A
|
72526A
72525-01040-B0 Handle, Reclining Adjuster Release, Rh[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM1# |
72525-01040-B0 |
US $3.49 |
||
|
72529
|
72529
72529-02050
Rod, Front Seat Back Lock Handle
[01.2008 - 12.2010] AZE14# |
72529-02050 |
— | ||
|
90119A0112
|
90119A0112
90119-A0112
New Genuine Part
|
90119-A0112 |
— | ||
|
7176933020
|
7176933020
71769-33020 Clip, Front Seat Cushion Shield, Lh |
71769-33020 |
US $0.87 |
||
|
9008010248
|
9008010248
90080-10248
New Genuine Part
|
90080-10248 |
— | ||
|
9008016089
|
9008016089
90080-16089
New Genuine Part
|
90080-16089 |
— | ||
|
9008046007
|
9008046007
90080-46007
Ring, Hog, Small (For Front Seat)
|
90080-46007 |
— | ||
|
9008416010
|
9008416010
90084-16010 New Genuine Part |
90084-16010 |
US $1.08 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9017908057
|
9017908057
90179-08057 NUT |
90179-08057 |
from US $0.76 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
