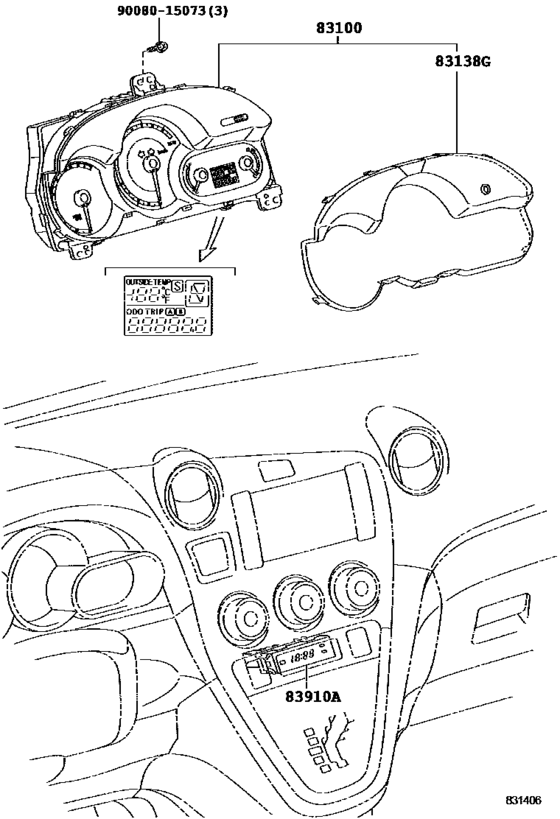

Meter ([01.2008 - ] (0801- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-02U40
Meter Assy, Combination
[01.2008 - 12.2010] AZE141,146..5F..CND; AZE141..5F..USA MEXICO SPEC |
83800-02U40 |
— | ||
|
83138G
|
83138G
83852-02T70
Glass, Combination Meter
[01.2008 - 12.2010] AZE14#,ZRE142 |
83852-02T70 |
— | ||
|
83910A
|
83910A
83910-12590
Clock Assy, W/multi Information Display
[01.2008 - 12.2010] AZE14#,ZRE142 |
83910-12590 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— |
