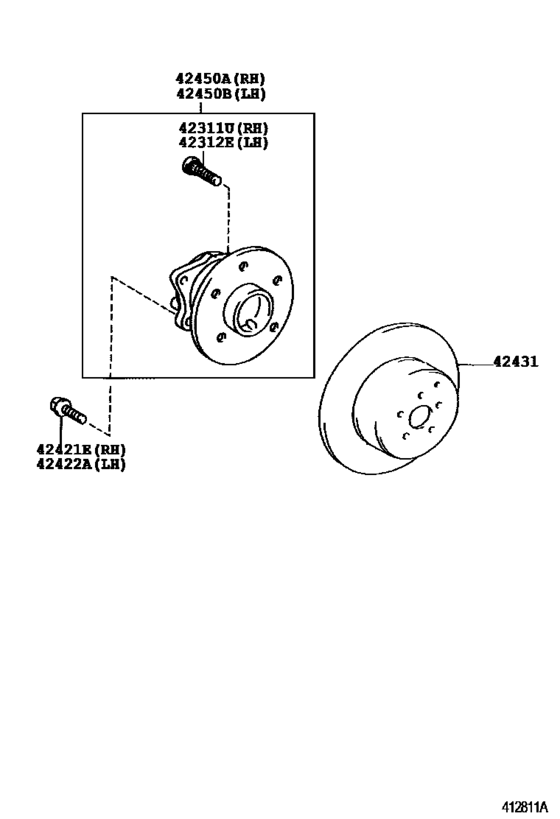

Rear Axle Shaft & Hub ([01.2008 - ] (0801- )AZE141,ZRE142) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311U
|
42311U
90942-02049 Bolt, Hub[01.2008 - 12.2010] AZE14#,ZRE142 |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42311U
|
42311U
90942-02082 Bolt, Hub[01.2008 - 12.2010] AZE14#,ZRE142 |
90942-02082 |
from US $2.32 |
||
|
42312E
|
42312E
90942-02049 Bolt, Hub[01.2008 - 12.2010] AZE14#,ZRE142 |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42312E
|
42312E
90942-02082 Bolt, Hub[01.2008 - 12.2010] AZE14#,ZRE142 |
90942-02082 |
from US $2.32 |
||
|
42421E
|
42421E
90119-A0350
Bolt (For Rear Axle Bearing Case Rh)
[01.2008 - 12.2010] AZE141,ZRE142 |
90119-A0350 |
— | ||
|
42422A
|
42422A
90119-A0350
Bolt (For Rear Axle Bearing Case Rh)
[01.2008 - 12.2010] AZE141,ZRE142 |
90119-A0350 |
— | ||
|
42431
|
42431
42431-02210
Disc, Rear
[01.2008 - 12.2010] AZE141 |
42431-02210 |
— | ||
|
42450A
|
42450A
42450-02160
Hub & Bearing Assy, Rear Axle, Rh
[01.2008 - 12.2010] AZE141 |
42450-02160 |
— | ||
|
42450B
|
42450B
42450-02160
Hub & Bearing Assy, Rear Axle, Rh
[01.2008 - 12.2010] AZE141 |
42450-02160 |
— | ||
