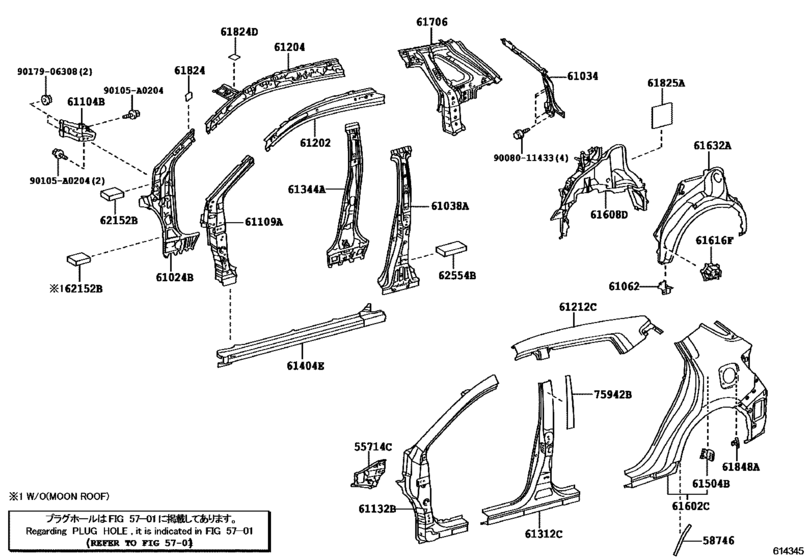

Side Member ([01.2008 - ] LH (0801- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55714C
|
55714C
55714-02080
Panel, Cowl Top Side, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
55714-02080 |
— | ||
|
58746
|
58746
58742-02140
Protector, Quarter Panel, Front Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
58742-02140 |
— | ||
|
61024B
|
61024B
61024-02180
Pillar Sub-Assy, Front Body, Inner Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61024-02180 |
— | ||
|
61034
|
61034
61034-02030
Reinforce Sub-Assy, Back Door Opening Side, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61034-02030 |
— | ||
|
61038A
|
61038A
61038-02914
Reinforcement Sub-Assy, Center Body Pillar, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61038-02914 |
— | ||
|
61062
|
61062
61062-02040
Reinforcement Sub-Assy, Wheel House, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61062-02040 |
— | ||
|
61104B
|
61104B
61104-02110
Reinforcement Sub-Assy, Cowl Side, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61104-02110 |
— | ||
|
61109A
|
61109A
61109-02120
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61109-02120 |
— | ||
|
61132B
|
61132B
61132-02280
Pillar, Front Body, Outer Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61132-02280 |
— | ||
|
61202
|
61202
61202-02120
Rail Sub-Assy, Roof Side, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61202-02120 |
— | ||
|
61204
|
61204
61204-02071
Rail Sub-Assy, Roof Side, Inner Lh
[01.2008 - 10.2010] AZE14#,ZRE142 |
61204-02071 |
— | ||
|
61204
|
61204
61204-02072
Rail Sub-Assy, Roof Side, Inner Lh
[10.2010 - 12.2010] AZE14#,ZRE142 |
61204-02072 |
— | ||
|
61212C
|
61212C
61212-02170
Rail, Roof Side, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61212-02170 |
— | ||
|
61312C
|
61312C
61312-02210
Panel, Rear Body Front Outside, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61312-02210 |
— | ||
|
61344A
|
61344A
61344-02901
Pillar, Center Body, Inner Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61344-02901 |
— | ||
|
61404E
|
61404E
61404-02110
Reinforce Sub-Assy, Rocker, Outer Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61404-02110 |
— | ||
|
61504B
|
61504B
61504-02090
Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61504-02090 |
— | ||
|
61602C
|
61602C
61602-02300
Panel Sub-Assy, Quarter, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61602-02300 |
— | ||
|
61608D
|
61608D
61608-02340
Panel, Quarter Wheel House, Inner Lh
[01.2008 - 12.2010] AZE141,ZRE142 |
61608-02340 |
— | ||
|
61616F
|
61616F
61616-02050
Reinforcement, Rear Body Rear Side Panel, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61616-02050 |
— | ||
|
61632A
|
61632A
61632-02110
Panel, Quarter Wheel House, Outer Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61632-02110 |
— | ||
|
61706
|
61706
61706-02902
Panel Sub-Assy, Roof Side, Inner Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61706-02902 |
— | ||
|
61824
|
61824
61824-02190
Plate, Noise Control
[01.2008 - 12.2010] AZE14#,ZRE142 |
61824-02190 |
— | ||
|
61824D
|
61824D
61824-02190
Plate, Noise Control
[01.2008 - 12.2010] AZE14#,ZRE142 |
61824-02190 |
— | ||
|
61825A
|
61825A
61825-12060 Plate, Noise Control, No.2[01.2008 - 12.2010] AZE14#,ZRE142 |
61825-12060 |
US $63.19 |
||
|
61848A
|
61848A
61848-02060
Retainer, Quarter Panel, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
61848-02060 |
— | ||
|
62152B
|
62152B
62152-02020 Pad, Cowl Side Silencer, No.2[01.2008 - 02.2009] AZE141,ZRE142..(5F,5FC)..USA MOON ROOF-WITH&SRS AIR BAG-WITH(DRIVER&PASSENGER); AZE141,144,ZRE142..CND MOON ROOF-WITH&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
62152-02020 |
US $3.93 |
||
|
62554B
|
62554B
62554-02040 Pad, Pillar, No.4[01.2008 - 12.2010] AZE14#,ZRE142 |
62554-02040 |
US $3.93 |
||
|
75942B
|
75942B
75942-02080
Stripe, Center Pillar, Lh
[01.2008 - 12.2010] AZE14#;ZRE142..USA |
75942-02080 |
— | ||
|
90105A0204
|
90105A0204
90105-A0204
New Genuine Part
|
90105-A0204 |
— | ||
|
9008011433
|
9008011433
90080-11433
New Genuine Part
|
90080-11433 |
— | ||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
from US $0.92 |
