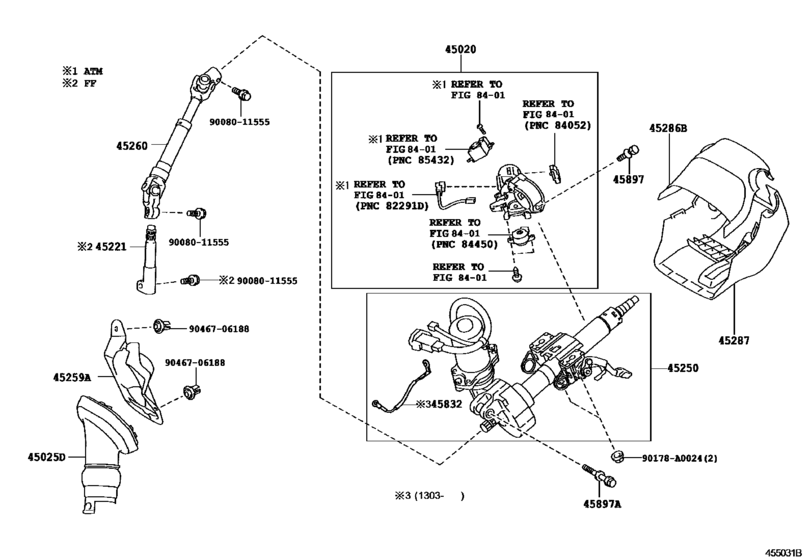

Steering Column & Shaft ([01.2008 - ] (0801- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020
|
45020
45020-02300
Bracket Assy, Steering Column Upper W/switch
[01.2008 - 12.2010] AZE141,146,ZRE142..5F |
45020-02300 |
— | ||
|
45025D
|
45025D
45025-02110
Cover Sub-Assy, Steering Column Hole, No.1
[01.2008 - 12.2010] AZE141,146,ZRE142 |
45025-02110 |
— | ||
|
45221
|
45221
45221-02070
Shaft, Steering Intermediate
[01.2008 - 12.2010] AZE141,146,ZRE142 |
45221-02070 |
— | ||
|
45250
|
45250
45250-02620
Column Assy, Steering
[01.2008 - 12.2010] AZE14#,ZRE142 |
45250-02620 |
— | ||
|
45259A
|
45259A
45259-02100
Sheet, Column Hole Cover Silencer
[01.2008 - 12.2010] AZE141,146,ZRE142 |
45259-02100 |
— | ||
|
45260
|
45260
45260-02110
Shaft Assy, Steering Intermediate, No.2
[01.2008 - 12.2010] AZE141,146,ZRE142 |
45260-02110 |
— | ||
|
45286B
|
45286B
45286-02310-B0
Cover, Steering Column, Upr
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
45286-02310-B0 |
— | ||
|
45287
|
45287
45287-02300-B0
Cover, Steering Column, Lwr
[01.2008 - 12.2010] AZE14#,ZRE142 DK.GRAY,TRIM1# |
45287-02300-B0 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[01.2008 - 12.2010] AZE14#,ZRE142 |
45897-12020 |
from US $2.63 |
||
|
45897A
|
45897A
45897-42010 Bolt, Tilt Steering Pawl Set[01.2008 - 12.2010] AZE14#,ZRE142 |
45897-42010 |
from US $9.68 |
||
|
90178A0024
|
90178A0024
90178-A0024
New Genuine Part
|
90178-A0024 |
— | ||
|
9008011555
|
9008011555
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.87 |
