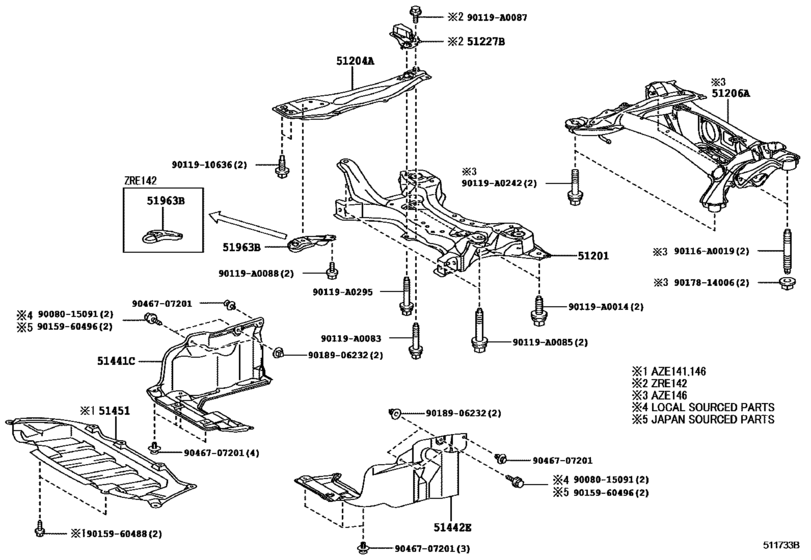

Suspension Crossmember & Under Cover ([01.2008 - ] (0801- )AZE141,146,ZRE142) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-02150 Crossmember Sub-Assy, Front Suspension[01.2008 - 12.2010] AZE141,146,ZRE142 |
51201-02150 |
US $896.90 |
||
| replacement | |||||
|
51201
|
51201
51201-02152 Crossmember Sub-Assy, Front Suspension[01.2008 - 12.2010] AZE141,146,ZRE142 |
51201-02152 |
US $618.16 |
||
|
51204A
|
51204A
51204-02080
Member Sub-Assy, Engine Mounting, Center
[01.2008 - 12.2010] AZE141,146 |
51204-02080 |
— | ||
|
51441C
|
51441C
51441-02260
Cover, Engine Under, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
51441-02260 |
— | ||
|
51442E
|
51442E
51442-02320
Cover, Engine Under, No.2
[01.2008 - 12.2010] AZE141,146,ZRE142..5F |
51442-02320 |
— | ||
|
51451
|
51451
51451-02050
Cover, Engine Under, No.4 Rh
[01.2008 - 12.2010] AZE14# |
51451-02050 |
— | ||
|
51963B
|
51963B
51963-02170
Hook, Transport, Front Rh
[01.2008 - 12.2010] AZE14# |
51963-02170 |
— | ||
|
90116A0019
|
90116A0019
90116-A0019
New Genuine Part
|
90116-A0019 |
— | ||
|
90119A0014
|
90119A0014
90119-A0014 New Genuine Part |
90119-A0014 |
US $13.28 |
||
|
90119A0083
|
90119A0083
90119-A0083
New Genuine Part
|
90119-A0083 |
— | ||
|
90119A0085
|
90119A0085
90119-A0085
New Genuine Part
|
90119-A0085 |
— | ||
|
90119A0087
|
90119A0087
90119-A0087 BOLT WWASHER |
90119-A0087 |
US $1.16 |
||
|
90119A0088
|
90119A0088
90119-A0088
New Genuine Part
|
90119-A0088 |
— | ||
|
90119A0242
|
90119A0242
90119-A0242
New Genuine Part
|
90119-A0242 |
— | ||
|
90119A0295
|
90119A0295
90119-A0295
New Genuine Part
|
90119-A0295 |
— | ||
|
9008015091
|
9008015091
90080-15091 SCREW |
90080-15091 |
US $1.08 |
||
|
9011910636
|
9011910636
90119-10636 BOLT WWASHER |
90119-10636 |
from US $1.13 |
||
|
9015960488
|
9015960488
90159-60488 SCREW WWASHER |
90159-60488 |
from US $0.70 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.62 |
||
|
9017814006
|
9017814006
90178-14006 NUT FLANGE |
90178-14006 |
US $2.87 |
||
|
9018906232
|
9018906232
90189-06232 GROMMET SCREW |
90189-06232 |
from US $0.72 |
||
|
9046707201
|
9046707201
90467-07201 Clamp(For Cool Air Intake) |
90467-07201 |
from US $1.09 |
||
