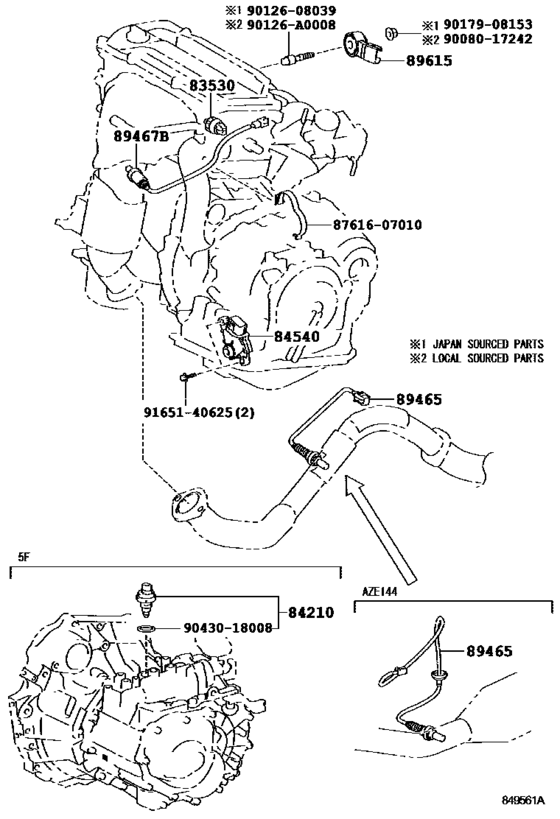

Switch & Relay & Computer ([01.2008 - ] ENGINE & TRANSMISSION (0801- )AZE14#) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2009 - 12.2010] AZE14#,ZRE142 (L) |
83530-0E010 |
US $51.25 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[01.2008 - 12.2010] AZE14#,ZRE142 (J) |
83530-28020 |
from US $24.41 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.2008 - 12.2010] AZE14#,ZRE142 (J) |
83530-60020 |
from US $24.04 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[01.2008 - 12.2010] AZE141,146..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[01.2008 - 12.2010] AZE141,146..5F |
84210-52050 |
from US $22.85 |
||
|
89465
|
89465
89465-02340
Sensor, Oxygen
[01.2008 - 12.2010] AZE141,146 |
89465-02340 |
— | ||
|
89467B
|
89467B
89467-02060
Sensor, Air Fuel Ratio
[01.2008 - 12.2010] AZE14# |
89467-02060 |
— | ||
|
89615
|
89615
89615-06010
Sensor, Knock Control
[01.2008 - 12.2010] AZE14#,ZRE142 |
89615-06010 |
— | ||
|
90126A0008
|
90126A0008
90126-A0008
New Genuine Part
|
90126-A0008 |
— | ||
|
8761607010
|
8761607010
87616-07010
Clamp, Cooling Unit Case
|
87616-07010 |
— | ||
|
9008017242
|
9008017242
90080-17242
New Genuine Part
|
90080-17242 |
— | ||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $4.30 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
