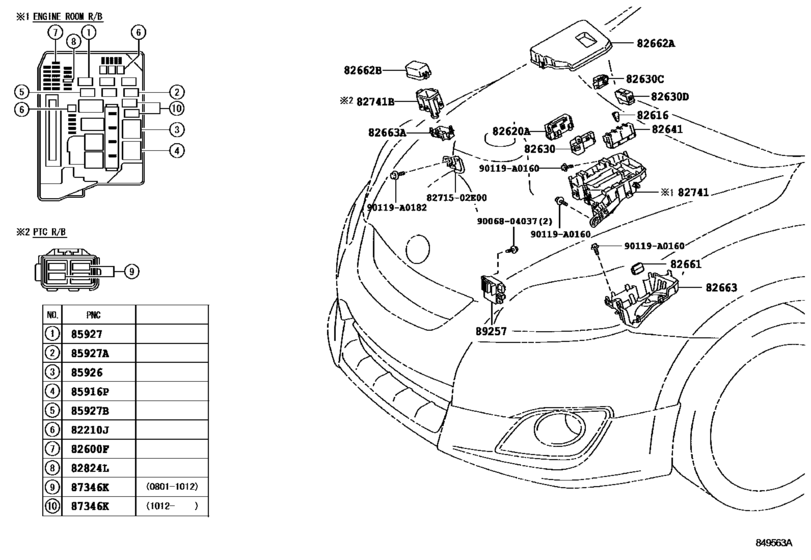

Switch & Relay & Computer ([01.2008 - ] ENGINE ROOM (0801- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08295 Fusible Link[01.2008 - 12.2010] AZE14#,ZRE142 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.99 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[01.2008 - 12.2010] AZE14#,ZRE142 7.5A,MINI FUSE |
90982-09020 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[01.2008 - 12.2010] AZE14#,ZRE142 10A,MINI FUSE |
90982-09021 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[01.2008 - 12.2010] AZE14#,ZRE142 15A,MINI FUSE |
90982-09022 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[01.2008 - 12.2010] AZE14#,ZRE142 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[01.2008 - 12.2010] AZE14#,ZRE142 25A,MINI FUSE |
90982-09024 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[01.2008 - 12.2010] AZE14#,ZRE142 30A,MINI FUSE |
90982-09025 |
from US $0.78 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[01.2008 - 12.2010] AZE14#,ZRE142 |
82616-58010 |
from US $2.28 |
||
|
82620A
|
82620A
82620-12280 Block Assy, Fusible Link[01.2008 - 12.2010] AZE14#,ZRE142 |
82620-12280 |
from US $22.93 |
||
|
82630
|
82630
82631-12070 Holder Assy, Fuse[01.2008 - 12.2010] AZE14#,ZRE142 |
82631-12070 |
US $28.83 |
||
|
82630C
|
82630C
82631-12080 Holder Assy, Fuse[01.2008 - 12.2010] AZE14#,ZRE142 |
82631-12080 |
US $22.42 |
||
|
82630D
|
82630D
82631-12090 Holder Assy, Fuse[01.2008 - 12.2010] AZE14#,ZRE142 |
82631-12090 |
US $19.36 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[01.2008 - 12.2010] AZE14#,ZRE142 |
82641-47020 |
from US $88.56 |
||
|
82661
|
82661
82661-12310 Cover, Relay Block, No.1[01.2008 - 12.2010] AZE14#,ZRE142 |
82661-12310 |
US $5.39 |
||
|
82662A
|
82662A
82662-02270
Cover, Relay Block, Upper, No.1
[01.2008 - 12.2010] AZE14#,ZRE142 |
82662-02270 |
— | ||
|
82663
|
82663
82663-12100 Cover, Relay Block, Lower[01.2008 - 12.2010] AZE14#,ZRE142 |
82663-12100 |
from US $29.81 |
||
|
82741
|
82741
82741-12110 Block, Engine Room Relay[01.2008 - 12.2010] AZE14#,ZRE142 |
82741-12110 |
from US $59.10 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[01.2008 - 12.2010] AZE14#,ZRE142 |
82824-20140 |
US $2.48 |
||
|
85916P
|
85916P
90080-87024
Relay, Water Pump
[01.2008 - 12.2010] AZE14#,ZRE142 |
90080-87024 |
— | ||
|
85926
|
85926
90080-87024
Relay, Water Pump
[11.2008 - 12.2010] AZE14#,ZRE142 |
90080-87024 |
— | ||
|
85926
|
85926
90080-87025 Relay Assy (For Heater Blower Motor)DEFOGGER [01.2008 - 11.2008] AZE14#,ZRE142 |
90080-87025 |
US $39.46 |
||
|
85927
|
85927
90080-87026
Relay, Water Pump
[01.2008 - 12.2010] AZE14#,ZRE142 |
90080-87026 |
— | ||
| replacement | |||||
|
85927
|
85927
90987-02027 Relay[01.2008 - 12.2010] AZE14#,ZRE142 |
90987-02027 |
from US $47.11 |
||
|
85927A
|
85927A
90080-87014 Relay, Cooling Fan, No.2[01.2008 - 12.2010] AZE14# |
90080-87014 |
US $20.82 |
||
|
85927B
|
85927B
90080-87026
Relay, Water Pump
[01.2008 - 12.2010] AZE14# |
90080-87026 |
— | ||
| replacement | |||||
|
85927B
|
85927B
90987-02027 Relay[01.2008 - 12.2010] AZE14# |
90987-02027 |
from US $47.11 |
||
|
90119A0160
|
90119A0160
90119-A0160
New Genuine Part
|
90119-A0160 |
— | ||
|
90119A0182
|
90119A0182
90119-A0182
New Genuine Part
|
90119-A0182 |
— | ||
|
8271502E00
|
8271502E00
82715-02E00
Bracket,wiring Harness Clamp
|
82715-02E00 |
— | ||
| replacement | |||||
|
8271502E00
|
8271502E00
82715-12G50 Bracket,wiring Harness Clamp |
82715-12G50 |
US $12.52 |
||
|
9006804037
|
9006804037
90068-04037
BOLT
|
90068-04037 |
— | ||
