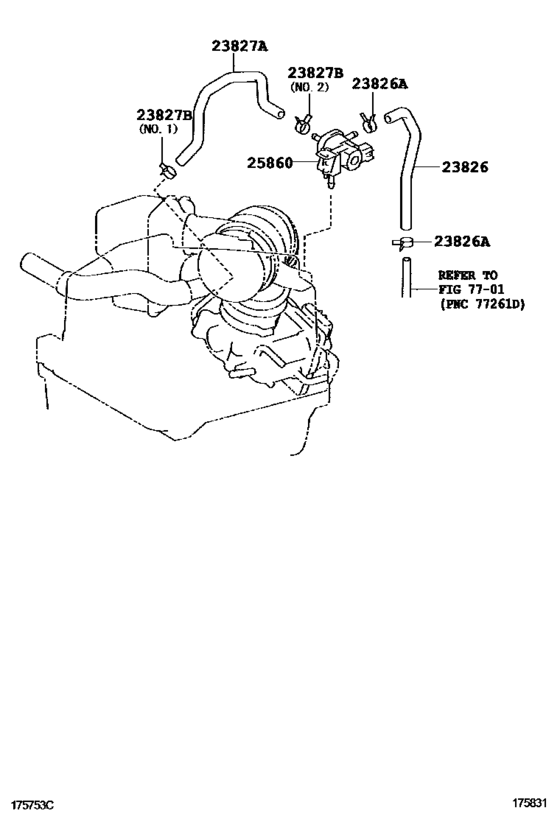

Vacuum Piping ([01.2008 - ] (0801- )2AZFE) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23826
|
23826
23826-0H280
Hose, Fuel Vapor Feed, No.1
[01.2008 - 12.2010] 2AZFE..AZE14# |
23826-0H280 |
— | ||
|
23826A
|
23826A
96132-51100 Clip (For Hose)[01.2008 - 12.2010] 2AZFE..AZE14# |
96132-51100 |
from US $1.42 |
||
|
23827A
|
23827A
23827-0H110
Hose, Fuel Vapor Feed, No.2
[01.2008 - 12.2010] 2AZFE..AZE14# |
23827-0H110 |
— | ||
|
23827B
|
23827B
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[01.2008 - 12.2010] 2AZFE..AZE14# NO.2 |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
23827B
|
23827B
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[01.2008 - 12.2010] 2AZFE..AZE14# NO.2 |
90466-A0001 |
US $3.15 |
||
|
23827B
|
23827B
96132-51000 Clip Or Clamp(For Ventilation Hose)[01.2008 - 12.2010] 2AZFE..AZE14# NO.1 |
96132-51000 |
from US $1.48 |
||
|
25860
|
25860
25860-0H090
Valve Assy, Vacuum Switching, No.1
[01.2008 - 12.2010] 2AZFE..AZE14# |
25860-0H090 |
— | ||
