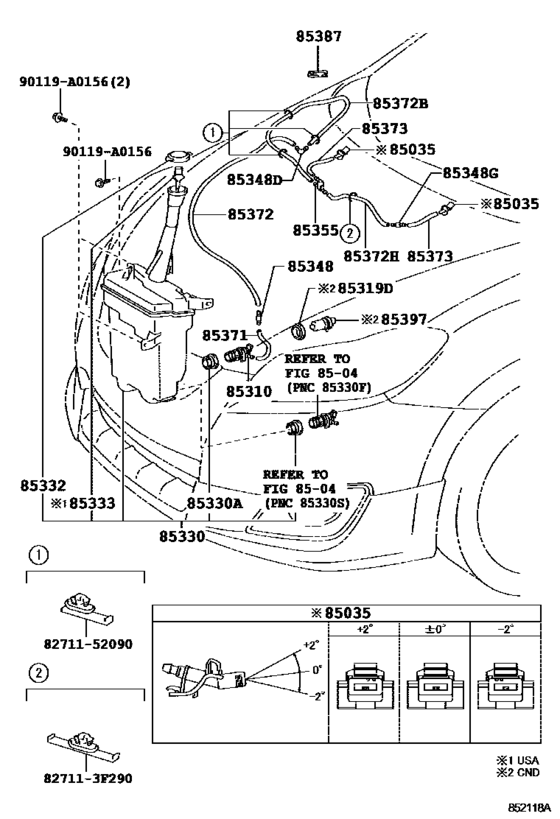

Windshield Washer ([01.2008 - 12.2010] (0801-1012)) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12300 Nozzle Sub-Assy, Washer[01.2008 - 12.2010] AZE14#,ZRE142 ANGLE 0 |
85381-12300 |
from US $8.39 |
||
|
85035
|
85035
85381-12310 Nozzle Sub-Assy, Washer[01.2008 - 12.2010] AZE14#,ZRE142 ANGLE -2 |
85381-12310 |
US $13.10 |
||
|
85035
|
85035
85381-12320 Nozzle Sub-Assy, Washer[01.2008 - 12.2010] AZE14#,ZRE142 ANGLE +2 |
85381-12320 |
from US $8.39 |
||
|
85310
|
85310
85330-60190 Motor And Pump Assy, Windshield Washer[01.2008 - 12.2010] AZE14#,ZRE142 |
85330-60190 |
from US $90.20 |
||
|
85319D
|
85319D
85319-AA020
Packing, Front Washer
[01.2008 - 12.2010] AZE14#,ZRE142..CND |
85319-AA020 |
— | ||
|
85330
|
85330
85315-02310
Jar Assy, Windshield Washer
[01.2008 - 12.2010] AZE14#..CND; ZRE142..CND REAR WINDOW WIPER-WITH |
85315-02310 |
— | ||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[01.2008 - 12.2010] AZE14#,ZRE142 |
85336-60300 |
from US $1.92 |
||
|
85332
|
85332
85316-02300
Cap, Windshield Washer Jar
[01.2008 - 12.2010] AZE14#,ZRE142 |
85316-02300 |
— | ||
|
85348
|
85348
85317-02300 Joint, Windshield Washer Hose, No.1WINDSHIELD WASHER HOSE, NO.1 [01.2008 - 12.2010] AZE14#,ZRE142 |
85317-02300 |
US $2.91 |
||
|
85348D
|
85348D
85375-02260
Joint, Windshield Washer Elbow, No.1
[01.2008 - 12.2010] AZE14#,ZRE142 |
85375-02260 |
— | ||
|
85348G
|
85348G
85317-02300 Joint, Windshield Washer Hose, No.1WINDSHIELD WASHER HOSE, NO.1 [01.2008 - 12.2010] AZE14#,ZRE142 |
85317-02300 |
US $2.91 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[01.2008 - 12.2010] AZE14#,ZRE142 |
85321-28020 |
from US $10.20 |
||
|
85371
|
85371
90068-33032
Hose, Windshield Washer (From Motor To Joint)
[01.2008 - 12.2010] AZE14#,ZRE142 L=80; ZRE142 L=80,REAR WINDOW WIPER-WITH |
90068-33032 |
— | ||
|
85372
|
85372
90068-33064
Hose, Windshield Washer (From Joint To Joint), No.1
[01.2008 - 12.2010] AZE14#,ZRE142 L=950 |
90068-33064 |
— | ||
|
85372B
|
85372B
90068-33069
Hose, Windshield Washer (From Joint To Joint), No.2
[01.2008 - 12.2010] AZE14#,ZRE142 L=920 |
90068-33069 |
— | ||
|
85372H
|
85372H
90068-33065
Hose, Windshield Washer (From Joint To Joint), No.2
[01.2008 - 12.2010] AZE14#,ZRE142 L=390 |
90068-33065 |
— | ||
|
85373
|
85373
90068-45004
Hose, Windshield Washer (From Joint To Nozzle)
[01.2008 - 12.2010] AZE14#,ZRE142 L=190 |
90068-45004 |
— | ||
|
85387
|
85387
85387-02260
Clamp No.1 (For Windseield Washer)
[01.2008 - 12.2010] AZE14#,ZRE142 |
85387-02260 |
— | ||
|
85397
|
85397
85397-AA040 Switch Assy, Washer Level Warning[01.2008 - 12.2010] AZE14#,ZRE142..CND |
85397-AA040 |
from US $39.99 |
||
|
90119A0156
|
90119A0156
90119-A0156 Bolt, Bumper Pad, No.3 |
90119-A0156 |
US $1.08 |
||
|
827113F290
|
827113F290
82711-3F290 Clamp, Rear Washer Hose |
82711-3F290 |
US $1.79 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.90 |
