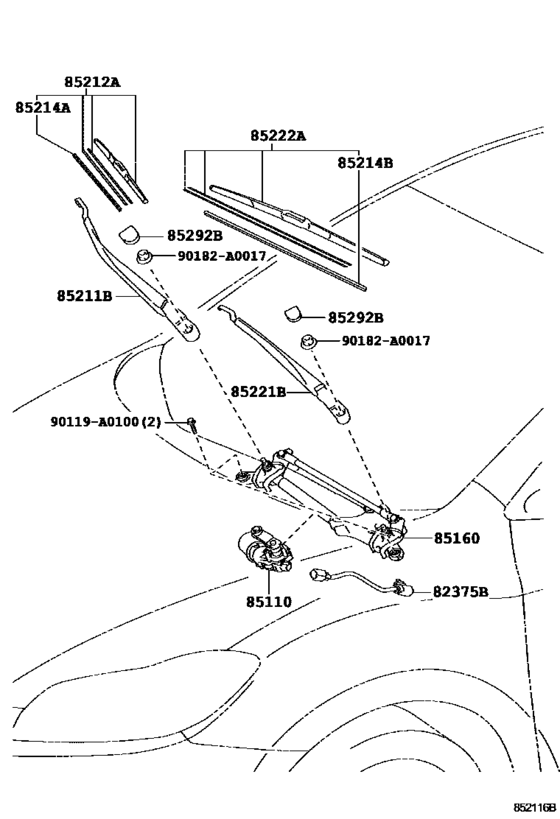

Windshield Wiper ([01.2008 - ] (0801- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Frame
- AZE141
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.2008
- To
- 12.2010
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-02030
Wire, Wiper Motor
[12.2008 - 12.2010] AZE14#,ZRE142 |
82375-02030 |
— | ||
|
85110
|
85110
85110-02250
Motor Assy, Windshield Wiper
[01.2008 - 12.2010] AZE14#,ZRE142 |
85110-02250 |
— | ||
|
85160
|
85160
85150-02230
Link Assy, Windshield Wiper
[01.2008 - 12.2010] AZE14#,ZRE142 |
85150-02230 |
— | ||
|
85211B
|
85211B
85211-02240
Arm, Front Wiper, Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
85211-02240 |
— | ||
|
85212A
|
85212A
85212-0R020
Blade, Fr Wiper, Rh
[08.2010 - 12.2010] AZE14#,ZRE142 |
85212-0R020 |
— | ||
|
85212A
|
85212A
85212-42120 Blade, Fr Wiper, RhFR WIPER, RH [01.2008 - 07.2010] AZE14#,ZRE142 |
85212-42120 |
from US $29.66 |
||
|
85214A
|
85214A
85214-42050 Rubber, Wiper, Lh[01.2008 - 12.2010] AZE14#,ZRE142 |
85214-42050 |
from US $9.63 |
||
|
85214B
|
85214B
85214-68020 Rubber, Wiper, Rh[01.2008 - 12.2010] AZE14#,ZRE142 |
85214-68020 |
US $9.83 |
||
| replacement | |||||
|
85214B
|
85214B
85214-52110 Rubber, Wiper, Rh[01.2008 - 12.2010] AZE14#,ZRE142 |
85214-52110 |
from US $13.98 |
||
|
85221B
|
85221B
85221-02250
Arm, Front Wiper, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
85221-02250 |
— | ||
|
85222A
|
85222A
85222-02230
Blade, Fr Wiper, Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
85222-02230 |
— | ||
|
85292B
|
85292B
85292-AA010 Cover, Windshield Wiper Arm[01.2008 - 12.2010] AZE14#,ZRE142 |
85292-AA010 |
from US $2.26 |
||
|
90119A0100
|
90119A0100
90119-A0100
New Genuine Part
|
90119-A0100 |
— | ||
|
90182A0017
|
90182A0017
90182-A0017
Nut (For Front Wiper Arm Setting)
|
90182-A0017 |
— | ||
