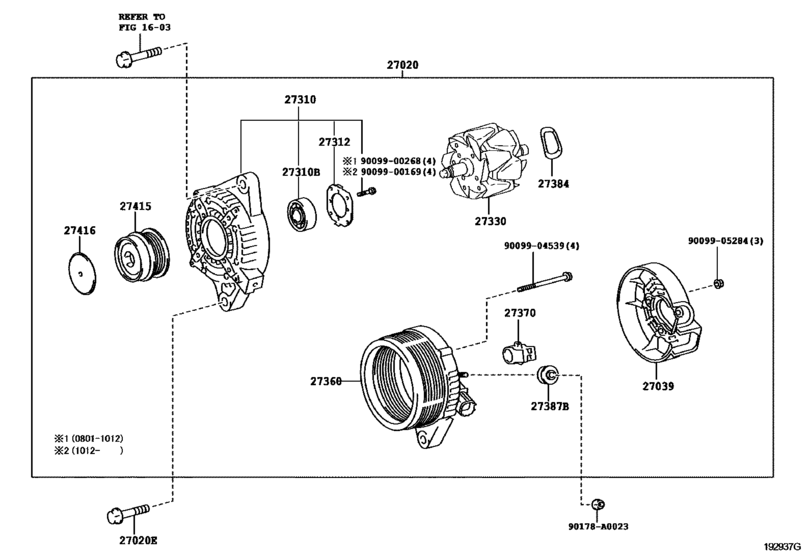

Alternator ([01.2008 - ] 12V 100A (0801- )2ZRFE) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- ZRE142
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0T040
Alternator Assy
[01.2008 - 10.2008] 2ZRFE..ZRE142 12V 100A |
27060-0T040 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-0T041
Alternator Assy
[01.2008 - 10.2008] 2ZRFE..ZRE142 12V 100A |
27060-0T041 |
— | ||
|
27020
|
27020
27060-0T041
Alternator Assy
[11.2008 - 12.2010] 2ZRFE..ZRE142 12V 100A |
27060-0T041 |
— | ||
|
27020
|
27020
27060-0T130
Alternator Assy
[12.2010 -] 2ZRFE..ZRE142 12V 100A |
27060-0T130 |
— | ||
|
27020E
|
27020E
90105-10307 Bolt(For Alternator)[01.2008 - 12.2010] 2ZRFE..ZRE142 |
90105-10307 |
US $18.24 |
||
|
27039
|
27039
27039-0T040
Cover, Alternator Rear End
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
27039-0T040 |
— | ||
|
27310
|
27310
27310-0T040
Frame Assy, Drive End, Alternator
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
27310-0T040 |
— | ||
|
27310
|
27310
27310-0T120
Frame Assy, Drive End, Alternator
[12.2010 -] 2ZRFE..ZRE142 |
27310-0T120 |
— | ||
|
27310B
|
27310B
90068-10033
Bearing(For Alternator Drive End Frame)
[11.2008 - 12.2010] 2ZRFE..ZRE142 |
90068-10033 |
— | ||
|
27310B
|
27310B
90068-10142 Bearing(For Alternator Drive End Frame)[01.2008 - 11.2008] 2ZRFE..ZRE142 |
90068-10142 |
US $24.90 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
27312-72100 |
US $4.06 |
||
|
27330
|
27330
27330-0F060
Rotor Assy, Alternator
[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
27330-0F060 |
— | ||
|
27360
|
27360
27360-0T040
Coil Assy, Alternator
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
27360-0T040 |
— | ||
|
27370
|
27370
27370-0P020
Holder Assy, Alternator Brush
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
27370-0P020 |
— | ||
|
27384
|
27384
27384-0A020 Washer[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
27384-0A020 |
US $9.32 |
||
|
27387B
|
27387B
27387-0V060
Insulator, Terminal
[10.2010 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
27387-0V060 |
— | ||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[01.2008 - 10.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-0T010
Pulley, Alternator W/clutch
[01.2008 - 10.2008] 2ZRFE..ZRE142 |
27415-0T010 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0T060 Pulley, Alternator W/clutch[01.2008 - 10.2008] 2ZRFE..ZRE142 |
27415-0T060 |
US $91.76 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[01.2008 - 10.2008] 2ZRFE..ZRE142 |
27416-0W050 |
from US $4.08 |
||
|
27415
|
27415
27415-0T011
Pulley, Alternator W/clutch
[11.2008 - 12.2010] 2ZRFE..ZRE142 |
27415-0T011 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0T060 Pulley, Alternator W/clutch[11.2008 - 12.2010] 2ZRFE..ZRE142 |
27415-0T060 |
US $91.76 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[11.2008 - 12.2010] 2ZRFE..ZRE142 |
27416-0W050 |
from US $4.08 |
||
|
27416
|
27416
27416-0W020 Cap, Alternator Pulley[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
27416-0W020 |
US $5.44 |
||
|
90178A0023
|
90178A0023
90178-A0023
Nut, Wire Adjusting, No.2
|
90178-A0023 |
— | ||
|
9009900169
|
9009900169
90099-00169
New Genuine Part
|
90099-00169 |
— | ||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
