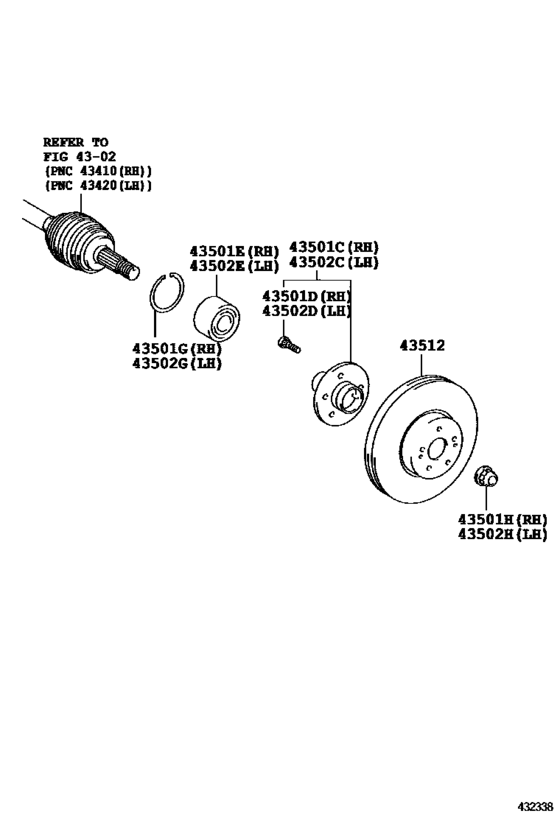

Front Axle Hub ([01.2008 - ] (0801- )ZRE142) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- ZRE142
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-02080
Hub Sub-Assy, Front Axle, Rh
[01.2008 - 12.2010] ZRE142 |
43502-02080 |
— | ||
|
43501D
|
43501D
90942-02049 Bolt, Hub[01.2008 - 12.2010] AZE14#,ZRE142 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[01.2008 - 12.2010] AZE14#,ZRE142 |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90080-36136
Bearing (For Front Axle Hub Rh)
[01.2008 - 12.2010] ZRE142 |
90080-36136 |
— | ||
|
43501G
|
43501G
90521-79002 Ring, Snap (For Axle Shaft)[01.2008 - 12.2010] ZRE142 |
90521-79002 |
US $2.24 |
||
|
43501H
|
43501H
90080-17238 Nut (For Rear Axle Shaft Rh)[01.2008 - 12.2010] AZE14#,ZRE142 |
90080-17238 |
US $22.50 |
||
| replacement | |||||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[01.2008 - 12.2010] AZE14#,ZRE142 |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43502-02080
Hub Sub-Assy, Front Axle, Rh
[01.2008 - 12.2010] ZRE142 |
43502-02080 |
— | ||
|
43502D
|
43502D
90942-02049 Bolt, Hub[01.2008 - 12.2010] AZE14#,ZRE142 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[01.2008 - 12.2010] AZE14#,ZRE142 |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90080-36136
Bearing (For Front Axle Hub Rh)
[01.2008 - 12.2010] ZRE142 |
90080-36136 |
— | ||
|
43502G
|
43502G
90521-79002 Ring, Snap (For Axle Shaft)[01.2008 - 12.2010] ZRE142 |
90521-79002 |
US $2.24 |
||
|
43502H
|
43502H
90080-17238 Nut (For Rear Axle Shaft Rh)[01.2008 - 12.2010] AZE14#,ZRE142 |
90080-17238 |
US $22.50 |
||
| replacement | |||||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[01.2008 - 12.2010] AZE14#,ZRE142 |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-02240 Disc, Front[01.2008 - 12.2010] ZRE142 |
43512-02240 |
US $153.29 |
||
