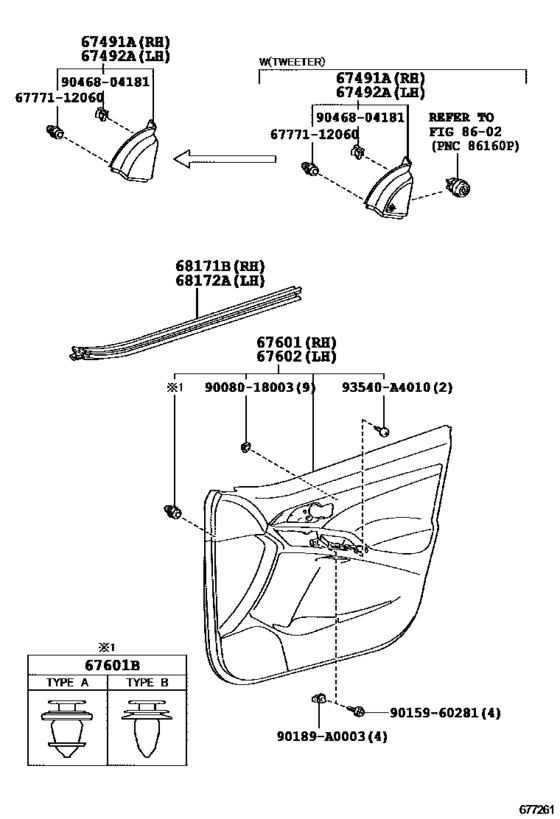

Front Door Panel & Glass ([10.2011 - ] DOOR TRIM (1110- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- ZRE142
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-02230
Garnish, Front Door Lower Frame Bracket, Rh
[01.2008 - 12.2010] AZE141,144,ZRE142; AZE146 AUDIO-AM/FM CD CHANGER XM JBL-7SP BLUETOOTH |
67491-02230 |
— | ||
|
67491A
|
67491A
67491-02240
Garnish, Front Door Lower Frame Bracket, Rh
[01.2008 - 12.2010] AZE146; AZE141,144,ZRE142 AUDIO-AM/FM CD 6SPAEKER; AZE141,144,ZRE142 AUDIO-AM/FM CD CHANGER 6SPEAKER; AZE141,144 AUDIO-ENTRY AVN 6SPEAKER |
67491-02240 |
— | ||
|
67492A
|
67492A
67492-02230
Garnish, Front Door Lower Frame Bracket, Lh
[01.2008 - 12.2010] AZE141,144,ZRE142; AZE146 AUDIO-AM/FM CD CHANGER XM JBL-7SP BLUETOOTH |
67492-02230 |
— | ||
|
67492A
|
67492A
67492-02240
Garnish, Front Door Lower Frame Bracket, Lh
[01.2008 - 12.2010] AZE146; AZE141,144,ZRE142 AUDIO-AM/FM CD 6SPAEKER; AZE141,144,ZRE142 AUDIO-AM/FM CD CHANGER 6SPEAKER; AZE141,144 AUDIO-ENTRY AVN 6SPEAKER |
67492-02240 |
— | ||
|
67601
|
67601
67610-02J10-B0
Board Sub-Assy, Front Door Trim, Rh
[01.2008 - 12.2010] ZRE142 DK.GRAY,TRIM12 |
67610-02J10-B0 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-02J11-B0
Board Sub-Assy, Front Door Trim, Rh
[01.2008 - 12.2010] ZRE142 DK.GRAY,TRIM12 |
67610-02J11-B0 |
— | ||
|
67601
|
67601
67610-02J10-B1
Board Sub-Assy, Front Door Trim, Rh
[01.2008 - 12.2010] ZRE142 DK.GRAY,TRIM13 |
67610-02J10-B1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-02J11-B1
Board Sub-Assy, Front Door Trim, Rh
[01.2008 - 12.2010] ZRE142 DK.GRAY,TRIM13 |
67610-02J11-B1 |
— | ||
|
67601
|
67601
67610-02J11-B0
Board Sub-Assy, Front Door Trim, Rh
[01.2012 - 11.2013] ZRE142 DK.GRAY,TRIM12 |
67610-02J11-B0 |
— | ||
|
67601
|
67601
67610-02J11-B1
Board Sub-Assy, Front Door Trim, Rh
[01.2012 - 11.2013] ZRE142 DK.GRAY,TRIM13 |
67610-02J11-B1 |
— | ||
|
67601
|
67601
67610-02J20-B0
Board Sub-Assy, Front Door Trim, Rh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM12; ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM12 |
67610-02J20-B0 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-02J21-B0
Board Sub-Assy, Front Door Trim, Rh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM12; ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM12 |
67610-02J21-B0 |
— | ||
|
67601
|
67601
67610-02J20-B1
Board Sub-Assy, Front Door Trim, Rh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM13; ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM13 |
67610-02J20-B1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-02J21-B1
Board Sub-Assy, Front Door Trim, Rh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM13; ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM13 |
67610-02J21-B1 |
— | ||
|
67601
|
67601
67610-02J21-B0
Board Sub-Assy, Front Door Trim, Rh
[01.2012 - 11.2013] ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM12 |
67610-02J21-B0 |
— | ||
|
67601
|
67601
67610-02J21-B1
Board Sub-Assy, Front Door Trim, Rh
[01.2012 - 11.2013] ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM13 |
67610-02J21-B1 |
— | ||
|
67601B
|
67601B
67773-0E020 Clip, Rear Window Side Garnish[10.2011 -] AZE14#,ZRE142 TYPE A:REFER ILLUST. |
67773-0E020 |
US $1.60 |
||
|
67601B
|
67601B
90467-A0005
Clip(For Deck Boad)
[01.2008 - 12.2010] AZE14#,ZRE142 |
90467-A0005 |
— | ||
|
67602
|
67602
67620-02J10-B0
Board Sub-Assy, Front Door Trim, Lh
[01.2008 - 12.2010] ZRE142 DK.GRAY,TRIM12 |
67620-02J10-B0 |
— | ||
|
67602
|
67602
67620-02J10-B1
Board Sub-Assy, Front Door Trim, Lh
[01.2008 - 12.2010] ZRE142 DK.GRAY,TRIM13 |
67620-02J10-B1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-02J11-B1
Board Sub-Assy, Front Door Trim, Lh
[01.2008 - 12.2010] ZRE142 DK.GRAY,TRIM13 |
67620-02J11-B1 |
— | ||
|
67602
|
67602
67620-02J11-B0
Board Sub-Assy, Front Door Trim, Lh
[01.2012 - 11.2013] ZRE142 DK.GRAY,TRIM12 |
67620-02J11-B0 |
— | ||
|
67602
|
67602
67620-02J11-B1
Board Sub-Assy, Front Door Trim, Lh
[01.2012 - 11.2013] ZRE142 DK.GRAY,TRIM13 |
67620-02J11-B1 |
— | ||
|
67602
|
67602
67620-02J20-B0
Board Sub-Assy, Front Door Trim, Lh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM12; ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM12 |
67620-02J20-B0 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-02J21-B0
Board Sub-Assy, Front Door Trim, Lh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM12; ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM12 |
67620-02J21-B0 |
— | ||
|
67602
|
67602
67620-02J20-B1
Board Sub-Assy, Front Door Trim, Lh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM13; ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM13 |
67620-02J20-B1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-02J21-B1
Board Sub-Assy, Front Door Trim, Lh
[01.2008 - 12.2010] AZE14# DK.GRAY,TRIM13; ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM13 |
67620-02J21-B1 |
— | ||
|
67602
|
67602
67620-02J21-B0
Board Sub-Assy, Front Door Trim, Lh
[01.2012 - 11.2013] ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM12 |
67620-02J21-B0 |
— | ||
|
67602
|
67602
67620-02J21-B1
Board Sub-Assy, Front Door Trim, Lh
[01.2012 - 11.2013] ZRE142 POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM13 |
67620-02J21-B1 |
— | ||
|
68171B
|
68171B
68171-02170
Weatherstrip, Front Door Glass, Inner Rh
[01.2008 - 12.2010] AZE14#,ZRE142 |
68171-02170 |
— | ||
|
68172A
|
68172A
68172-02160
Weatherstrip, Front Door Glass, Inner Lh
[01.2008 - 12.2010] AZE14#,ZRE142 |
68172-02160 |
— | ||
|
90189A0003
|
90189A0003
90189-A0003
New Genuine Part
|
90189-A0003 |
— | ||
|
93540A4010
|
93540A4010
93540-A4010 SCREW TAPPING |
93540-A4010 |
US $1.12 |
||
|
6777112060
|
6777112060
67771-12060 Retainer, Door Trim |
67771-12060 |
US $1.60 |
||
|
9008018003
|
9008018003
90080-18003
New Genuine Part
|
90080-18003 |
— | ||
|
9015960281
|
9015960281
90159-60281 New Genuine Part |
90159-60281 |
US $0.87 |
||
|
9046804181
|
9046804181
90468-04181 Clip(For Door Trim) |
90468-04181 |
from US $1.15 |
||
