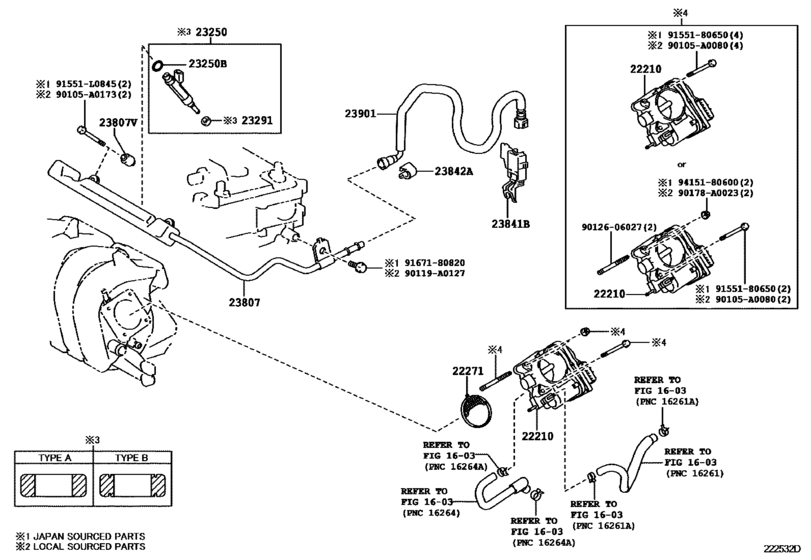

Fuel Injection System ([01.2008 - ] (0801- )2ZRFE) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- ZRE142
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-0T040
Body Assy, Throttle
[01.2008 - 06.2009] 2ZRFE..ZRE142 (L) |
22030-0T040 |
— | ||
|
22210
|
22210
22030-0T070
Body Assy, Throttle
[06.2009 - 08.2010] 2ZRFE..ZRE142 (L) |
22030-0T070 |
— | ||
|
22210
|
22210
22030-0T080
Body Assy, Throttle
[12.2010 -] 2ZRFE..ZRE142 (L) |
22030-0T080 |
— | ||
|
22210
|
22210
22030-37010 Body Assy, Throttle[01.2008 - 06.2009] 2ZRFE..ZRE142 (J) |
22030-37010 |
US $1,071.22 |
||
|
22210
|
22210
22030-37050 Body Assy, Throttle W/motor[12.2010 -] 2ZRFE..ZRE142 (J) |
22030-37050 |
from US $737.80 |
||
|
22210
|
22210
22030-37070
Body Assy, Throttle
[06.2009 - 08.2010] 2ZRFE..ZRE142 (J) |
22030-37070 |
— | ||
|
22271
|
22271
22271-0D051
Gasket, Throttle Body
[01.2008 - 12.2010] 2ZRFE..ZRE142 (L); 2AZFE..AZE14# (L) |
22271-0D051 |
— | ||
|
22271
|
22271
22271-75031 Gasket, Throttle Body[01.2008 - 07.2008] 2ZRFE..ZRE142 (J) |
22271-75031 |
from US $3.02 |
||
|
23250
|
23250
23209-09140
Injector Assy, Fuel
[01.2008 - 12.2010] 2ZRFE..ZRE142 (L) |
23209-09140 |
— | ||
|
23250
|
23250
23209-39145 Injector Assy, Fuel[01.2008 - 12.2010] 2ZRFE..ZRE142 (J) |
23209-39145 |
from US $182.88 |
||
|
23250
|
23250
23209-39146 Injector Assy, FuelFUEL [04.2012 -] 2ZRFE..ZRE142 (J),TYPE B |
23209-39146 |
from US $169.16 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[01.2008 - 12.2010] 2ZRFE..ZRE142; 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
90301-07037 |
from US $2.20 |
||
|
23250B
|
23250B
90301-A0036
Ring, O(For Fuel Injector)
[04.2012 -] 2ZRFE..ZRE142 (L) |
90301-A0036 |
— | ||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[06.2008 - 12.2010] 2ZRFE..ZRE142 |
23291-23010 |
from US $2.98 |
||
|
23291
|
23291
23291-28020 Insulator, Injector Vibration[04.2012 -] 2ZRFE..ZRE142 TYPE B:REFER ILLUST. |
23291-28020 |
from US $3.90 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[01.2008 - 06.2008] 2ZRFE..ZRE142 |
23291-41010 |
from US $2.77 |
||
|
23807
|
23807
23814-37050 Pipe Sub-Assy, Fuel Delivery[01.2008 - 12.2010] 2ZRFE..ZRE142 |
23814-37050 |
US $160.16 |
||
| replacement | |||||
|
23807
|
23807
23814-37051 Pipe Sub-Assy, Fuel Delivery[01.2008 - 12.2010] 2ZRFE..ZRE142 |
23814-37051 |
from US $87.73 |
||
|
23807
|
23807
23814-37051 Pipe Sub-Assy, Fuel Delivery[08.2011 -] 2ZRFE..ZRE142 |
23814-37051 |
from US $87.73 |
||
|
23807V
|
23807V
23891-37010 Spacer, No.1(For Delivery Pipe)[01.2008 - 12.2010] 2ZRFE..ZRE142 |
23891-37010 |
US $3.84 |
||
|
23841B
|
23841B
23841-21040 Clamp, Fuel Pipe, No.1(For Efi)[01.2008 - 12.2010] 2ZRFE..ZRE142; 2AZFE..AZE14# |
23841-21040 |
US $13.54 |
||
|
23841B
|
23841B
23841-37090 Clamp, Fuel Pipe, No.1(For Efi)[11.2012 -] 2ZRFE..ZRE142 |
23841-37090 |
US $14.56 |
||
|
23842A
|
23842A
23842-28010 Clamp, Fuel Pipe, No.1(For Efi)[01.2008 - 12.2010] 2ZRFE..ZRE142; 2AZFE..AZE14# |
23842-28010 |
from US $6.16 |
||
|
23901
|
23901
23901-0T030
Tube Sub-Assy, Fuel
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
23901-0T030 |
— | ||
|
90105A0080
|
90105A0080
90105-A0080
New Genuine Part
|
90105-A0080 |
— | ||
|
90105A0173
|
90105A0173
90105-A0173
New Genuine Part
|
90105-A0173 |
— | ||
|
90119A0127
|
90119A0127
90119-A0127
New Genuine Part
|
90119-A0127 |
— | ||
|
90178A0023
|
90178A0023
90178-A0023
Nut, Wire Adjusting, No.2
|
90178-A0023 |
— | ||
|
91551L0845
|
91551L0845
91551-L0845 BOLT FLANGE |
91551-L0845 |
US $0.79 |
||
|
9012606027
|
9012606027
90126-06027 STUD HEXALOBULAR |
90126-06027 |
US $1.28 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
US $1.28 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
