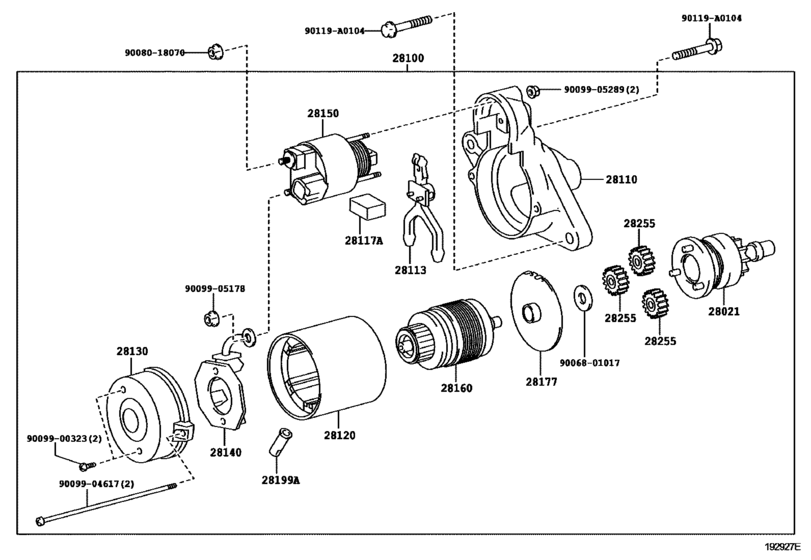

Starter ([01.2008 - 08.2011] 12V 1.6KW (0801-1108)2ZRFE) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- ZRE142
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21060 Clutch Sub-Assy, Starter Center Bearing[10.2012 -] 2ZRFE..ZRE142 |
28021-21060 |
from US $63.73 |
||
|
28021
|
28021
28021-37050 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [01.2008 - 12.2010] 2ZRFE..ZRE142 |
28021-37050 |
from US $65.54 |
||
|
28100
|
28100
28100-0T050
Starter Assy
[01.2008 - 12.2010] 2ZRFE..ZRE142 12V 1.6KW |
28100-0T050 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-0T051
Starter Assy
[01.2008 - 12.2010] 2ZRFE..ZRE142 12V 1.6KW |
28100-0T051 |
— | ||
|
28100
|
28100
28100-0T051
Starter Assy
[08.2011 - 09.2012] 2ZRFE..ZRE142 12V 1.6KW |
28100-0T051 |
— | ||
|
28100
|
28100
28100-0T260
Starter Assy
[10.2012 -] 2ZRFE..ZRE142 12V 1.6KW |
28100-0T260 |
— | ||
|
28110
|
28110
28110-0T050
Housing Assy, Starter Drive
[01.2008 - 04.2009] 2ZRFE..ZRE142 |
28110-0T050 |
— | ||
| replacement | |||||
|
28110
|
28110
28226-0T050
Housing Assy, Starter Drive
[01.2008 - 04.2009] 2ZRFE..ZRE142 |
28226-0T050 |
— | ||
|
28110
|
28110
28110-37040
Housing Assy, Starter Drive
[10.2012 -] 2ZRFE..ZRE142 |
28110-37040 |
— | ||
|
28110
|
28110
28226-0T050
Housing Assy, Starter Drive
[04.2009 - 12.2010] 2ZRFE..ZRE142 |
28226-0T050 |
— | ||
|
28113
|
28113
28113-0T050
Lever, Starter Pinion Drive
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
28113-0T050 |
— | ||
|
28117A
|
28117A
28117-0H090
Seal, Rubber
[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
28117-0H090 |
— | ||
|
28120
|
28120
28120-0T050
Yoke Assy, Starter
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
28120-0T050 |
— | ||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[10.2012 -] 2ZRFE..ZRE142 |
28120-28060 |
— | ||
|
28130
|
28130
28130-0T050
Frame Assy, Starter Commutator End
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
28130-0T050 |
— | ||
|
28130
|
28130
28130-37120
Frame Assy, Starter Commutator End
[10.2012 -] 2ZRFE..ZRE142 |
28130-37120 |
— | ||
|
28140
|
28140
28140-37050 Holder Assy, Starter BrushSTARTER BRUSH [01.2008 - 12.2010] 2ZRFE..ZRE142 |
28140-37050 |
US $29.39 |
||
|
28150
|
28150
28150-37050 Switch Assy, Magnet StarterMAGNET STARTER [01.2008 - 04.2009] 2ZRFE..ZRE142 |
28150-37050 |
US $147.06 |
||
|
28150
|
28150
28150-37060
Switch Assy, Magnet Starter
[04.2009 - 12.2010] 2ZRFE..ZRE142 |
28150-37060 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-37050 Switch Assy, Magnet StarterMAGNET STARTER [04.2009 - 12.2010] 2ZRFE..ZRE142 |
28150-37050 |
US $147.06 |
||
|
28160
|
28160
28160-21060 Armature Assy, Starter[10.2012 -] 2ZRFE..ZRE142 |
28160-21060 |
from US $97.60 |
||
|
28160
|
28160
28160-37050 Armature Assy, Starter[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
28160-37050 |
US $176.18 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[10.2012 -] 2ZRFE..ZRE142 |
28177-28040 |
US $4.19 |
||
|
28177
|
28177
28177-37050
Plate(For Starter Armature)
[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
28177-37050 |
— | ||
|
28199A
|
28199A
28199-0T050
Protector, Dust Starter
[01.2008 - 12.2010] 2ZRFE..ZRE142 |
28199-0T050 |
— | ||
|
28255
|
28255
28255-28040 Gear, Planet[10.2012 -] 2ZRFE..ZRE142 |
28255-28040 |
from US $4.10 |
||
|
28255
|
28255
28255-37050
Gear, Planet
[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
28255-37050 |
— | ||
|
90119A0104
|
90119A0104
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
|
9006801017
|
9006801017
90068-01017
New Genuine Part
|
90068-01017 |
— | ||
|
9008018070
|
9008018070
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9009900323
|
9009900323
90099-00323
Screw, Starter
|
90099-00323 |
— | ||
|
9009904617
|
9009904617
90099-04617
New Genuine Part
|
90099-04617 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009905289
|
9009905289
90099-05289
New Genuine Part
|
90099-05289 |
— | ||
