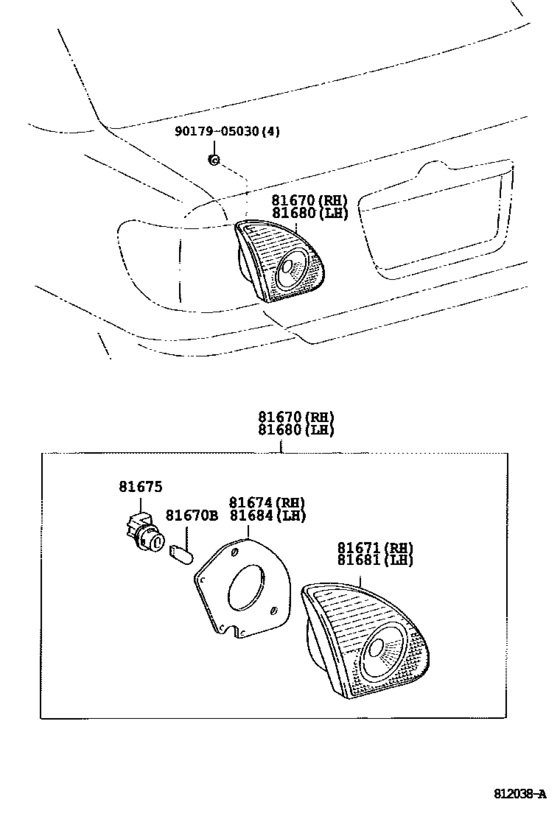

Back Up Lamp ([01.2002 - ] (0201- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81670
|
81670
81670-02030
Lamp Assy, Back-Up, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81670-02030 |
— | ||
|
81670B
|
81670B
90080-81065
Bulb(For Rear Combination Lamp)
[05.2004 - 07.2006] ZZE131..NAP 12V 18W |
90080-81065 |
— | ||
| replacement | |||||
|
81670B
|
81670B
90084-98039 Bulb (For Center Stop Lamp)[05.2004 - 07.2006] ZZE131..NAP 12V 18W |
90084-98039 |
US $1.37 |
||
|
81671
|
81671
81671-02030
Lens, Back-Up Lamp, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81671-02030 |
— | ||
|
81674
|
81674
81674-02030
Gasket, Back-Up Lamp Body, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81674-02030 |
— | ||
|
81675
|
81675
90075-60037 Socket And Wire, License Plate Lamp[05.2004 - 07.2006] ZZE131..NAP |
90075-60037 |
from US $8.15 |
||
|
81680
|
81680
81680-02030
Lamp Assy, Back Up, Lh
[05.2004 - 07.2006] ZZE131..NAP |
81680-02030 |
— | ||
|
81681
|
81681
81681-02030
Lens, Back-Up Lamp, Lh
[05.2004 - 07.2006] ZZE131..NAP |
81681-02030 |
— | ||
|
81684
|
81684
81674-02030
Gasket, Back-Up Lamp Body, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81674-02030 |
— | ||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
