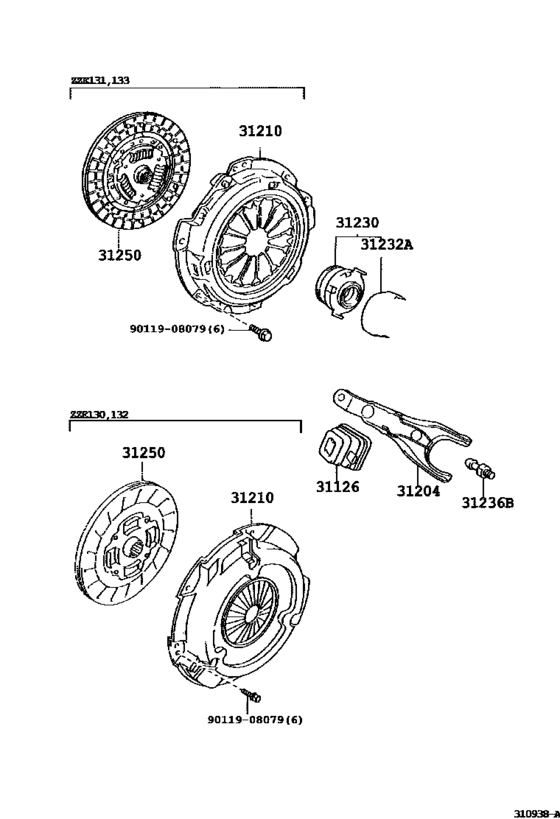

Clutch & Release Fork ([01.2002 - ] (0201- )NAP..MTM) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-12250
Cover Assy, Clutch
[07.2005 - 01.2006] ZZE133..NAP; ZZE131..NAP |
31210-12250 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [07.2005 - 01.2006] ZZE133..NAP; ZZE131..NAP |
31210-12291 |
from US $150.15 |
||
|
31210
|
31210
31210-12251 Cover Assy, Clutch[02.2006 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31210-12251 |
US $122.30 |
||
| replacement | |||||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [02.2006 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31210-12291 |
from US $150.15 |
||
|
31210
|
31210
31210-20380 Cover Assy, Clutch[05.2004 - 06.2005] ZZE133..NAP; ZZE131..NAP |
31210-20380 |
US $154.34 |
||
| replacement | |||||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [05.2004 - 06.2005] ZZE133..NAP; ZZE131..NAP |
31210-12291 |
from US $150.15 |
||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31232-12070 |
US $3.20 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31236-12020 |
from US $8.16 |
||
|
31250
|
31250
31250-12360
Disc Assy, Clutch
[05.2004 - 11.2005] ZZE133..NAP; ZZE131..NAP |
31250-12360 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12361 Disc Assy, Clutch[05.2004 - 11.2005] ZZE133..NAP; ZZE131..NAP |
31250-12361 |
from US $126.83 |
||
|
31250
|
31250
31250-12540
Disc Assy, Clutch
[12.2005 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31250-12540 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12361 Disc Assy, Clutch[12.2005 - 07.2006] ZZE133..NAP; ZZE131..NAP |
31250-12361 |
from US $126.83 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.70 |
||
