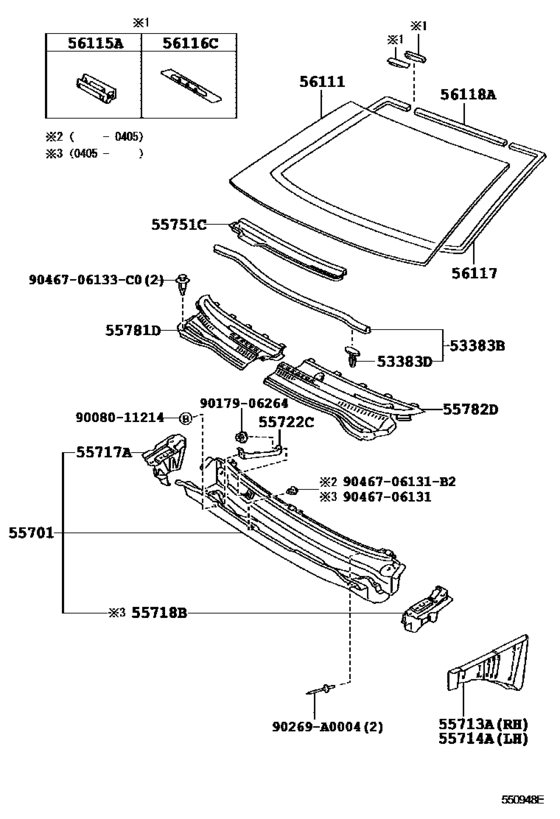

Cowl Panel & Windshield Glass ([01.2002 - ] (0201- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-02070
Seal, Hood To Cowl Top
[05.2004 - 07.2006] ZZE131..NAP |
53383-02070 |
— | ||
|
53383D
|
53383D
90467-08108 Clip(For Hood To Cowl Top Seal)[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90467-08108 |
from US $0.82 |
||
|
55701
|
55701
55700-02230
Panel Sub-Assy, Cowl
[05.2004 - 01.2008] ZZE130,131..NAP |
55700-02230 |
— | ||
|
55713A
|
55713A
55713-02040 Panel, Cowl Top Side, Rh[05.2004 - 01.2008] ZZE130,131..NAP |
55713-02040 |
US $33.20 |
||
|
55714A
|
55714A
55714-02040 Panel, Cowl Top Side, Lh[05.2004 - 01.2008] ZZE130,131..NAP |
55714-02040 |
US $33.20 |
||
|
55717A
|
55717A
55717-02050 Panel, Cowl Top Side, Inner Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
55717-02050 |
US $22.57 |
||
|
55718B
|
55718B
55718-02040 Panel, Cowl Top Side, Inner Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
55718-02040 |
US $22.57 |
||
|
55722C
|
55722C
55722-02010
Brace, Cowl Top To Cowl, Inner
[05.2004 - 07.2006] ZZE131..NAP |
55722-02010 |
— | ||
|
55751C
|
55751C
55751-02070
Shield, Cowl Ventilator Splash
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
55751-02070 |
— | ||
|
55781D
|
55781D
55708-02170
Louver, Cowl Top Ventilator, Rh
[05.2004 - 07.2006] ZZE131..NAP..USA |
55708-02170 |
— | ||
|
55781D
|
55781D
55708-02180
Louver, Cowl Top Ventilator, Rh
[05.2004 - 07.2006] ZZE131..NAP COLD SPEC |
55708-02180 |
— | ||
|
55782D
|
55782D
55709-02090
Louver, Cowl Top Ventilator, Lh
[05.2004 - 07.2006] ZZE131..NAP..USA |
55709-02090 |
— | ||
|
55782D
|
55782D
55709-02100
Louver, Cowl Top Ventilator, Lh
[05.2004 - 07.2006] ZZE131..NAP COLD SPEC |
55709-02100 |
— | ||
|
56111
|
56111
56101-02050
Glass, Windshield
[05.2004 - 07.2006] ZZE131..NAP *LAM,T=4.76,GREEN |
56101-02050 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
56116-22050 |
from US $1.38 |
||
|
56117
|
56117
90998-91004 Dam Kit, Windshield Glass[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90998-91004 |
US $14.88 |
||
|
56118A
|
56118A
90998-91003 Dam Kit, Windshield Glass[05.2004 - 07.2006] ZZE131..NAP *D,L=721 |
90998-91003 |
US $5.07 |
||
|
90269A0004
|
90269A0004
90269-A0004
New Genuine Part
|
90269-A0004 |
— | ||
|
9008011214
|
9008011214
90080-11214 New Genuine Part |
90080-11214 |
US $1.46 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.90 |
||
|
9046706131
|
9046706131
90467-06131 New Genuine Part |
90467-06131 |
US $2.62 |
||
| replacement | |||||
|
9046706131
|
9046706131
90467-06131-B2 Clip |
90467-06131-B2 |
US $1.22 |
||
|
9046706131B2
|
9046706131B2
90467-06131-B2 Clip |
90467-06131-B2 |
US $1.22 |
||
|
9046706133C0
|
9046706133C0
90467-06133-C0 Clip, Step Plate Cover |
90467-06133-C0 |
from US $1.52 |
||
