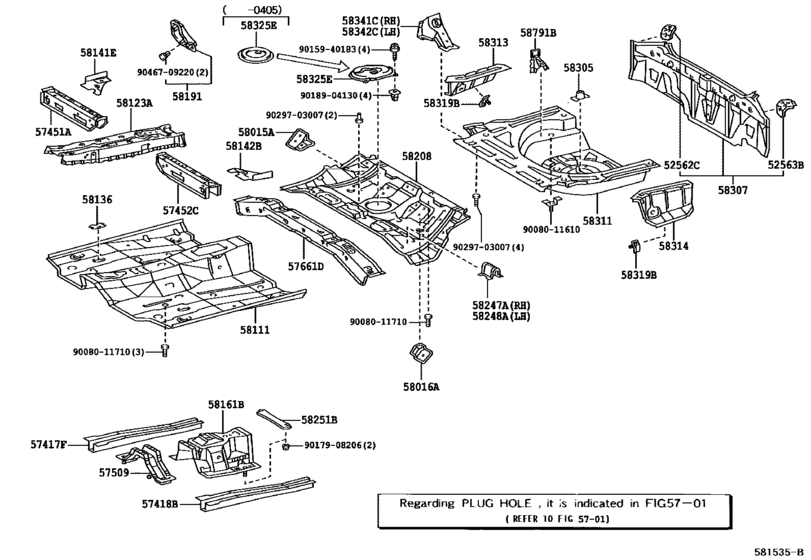

Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52562C
|
52562C
52562-02020
Retainer, Rear Bumper, Upper Rh
[05.2004 - 07.2006] ZZE131..NAP |
52562-02020 |
— | ||
|
52563B
|
52563B
52562-02020
Retainer, Rear Bumper, Upper Rh
[05.2004 - 07.2006] ZZE131..NAP |
52562-02020 |
— | ||
|
57417F
|
57417F
57417-02060 Reinforcement, Front Floor Under, Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57417-02060 |
US $77.17 |
||
|
57418B
|
57418B
57417-02060 Reinforcement, Front Floor Under, Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57417-02060 |
US $77.17 |
||
|
57451A
|
57451A
57451-01020
Member, Front Floor Cross, Rh
[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
57451-01020 |
— | ||
|
57452C
|
57452C
57452-01010
Member, Front Floor Cross, Lh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57452-01010 |
— | ||
|
57509
|
57509
57509-02030 Reinforcement Sub-Assy, Front Floor, Center[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
57509-02030 |
US $81.54 |
||
|
57661D
|
57661D
57661-02050
Member, Rear Floor Cross, Front
[05.2004 - 07.2006] ZZE131..NAP |
57661-02050 |
— | ||
|
58015A
|
58015A
58015-02020 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
58015-02020 |
US $30.14 |
||
|
58016A
|
58016A
58016-02020
Reinforce Sub-Assy, Belt Anchor, No.3 Lh
[05.2004 - 07.2006] ZZE131..NAP |
58016-02020 |
— | ||
|
58111
|
58111
58111-02902 Pan, Front FloorFRONT FLOOR [05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
58111-02902 |
US $559.10 |
||
|
58123A
|
58123A
58013-02050 Support, Shift & Select Lever[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
58013-02050 |
US $173.26 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
58136-33010 |
US $3.06 |
||
|
58141E
|
58141E
58141-02010 Reinforcement, Front Side Member To Floor Pan, Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
58141-02010 |
US $11.07 |
||
|
58142B
|
58142B
58142-02010 Reinforcemnt, Front Side Member To Floor Pan, Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
58142-02010 |
US $6.70 |
||
|
58161B
|
58161B
57805-02090 Reinforcement, Belt Anchor To Floor Pan[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
57805-02090 |
US $145.60 |
||
|
58191
|
58191
58192-02050
Footrest, Front Floor
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
58192-02050 |
— | ||
|
58208
|
58208
58211-02160
Pan, Center Floor
[05.2004 - 07.2006] ZZE131..NAP |
58211-02160 |
— | ||
|
58247A
|
58247A
58247-02030
Reinforcement, Rear Seat Cushion Hinge, Rh
[05.2004 - 07.2006] ZZE131..NAP |
58247-02030 |
— | ||
|
58248A
|
58248A
58247-02030
Reinforcement, Rear Seat Cushion Hinge, Rh
[05.2004 - 07.2006] ZZE131..NAP |
58247-02030 |
— | ||
|
58251B
|
58251B
58251-02010 Brace, Floor Panel, Front[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
58251-02010 |
US $11.21 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
58351-33010 |
US $6.56 |
||
|
58307
|
58307
58307-02110
Panel Sub-Assy, Body Lower Back
[05.2004 - 01.2008] ZZE130,131..NAP |
58307-02110 |
— | ||
|
58311
|
58311
58311-02904
Pan, Rear Floor
[05.2004 - 07.2006] ZZE131..NAP |
58311-02904 |
— | ||
|
58313
|
58313
58313-02040
Panel, Rear Floor Side, Rh
[05.2004 - 07.2006] ZZE131..NAP |
58313-02040 |
— | ||
|
58314
|
58314
58314-02040
Panel, Rear Floor Side, Lh
[05.2004 - 07.2006] ZZE131..NAP |
58314-02040 |
— | ||
|
58319B
|
58319B
58319-02010
Bracket, Rear Floor Side Panel
[05.2004 - 07.2006] ZZE131..NAP |
58319-02010 |
— | ||
|
58325E
|
58325E
58325-02071
Cover, Rear Floor Service Hole
[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
58325-02071 |
— | ||
|
58341C
|
58341C
58341-02030
Bracket, Rear Absorber Mounting, No.1 Rh
[05.2004 - 07.2006] ZZE131..NAP |
58341-02030 |
— | ||
|
58342C
|
58342C
58342-02030
Bracket, Rear Absorber Mounting, No.1 Lh
[05.2004 - 07.2006] ZZE131..NAP |
58342-02030 |
— | ||
|
58791B
|
58791B
58791-02010
Carrier, Jack
[05.2004 - 07.2006] ZZE131..NAP |
58791-02010 |
— | ||
|
9008011610
|
9008011610
90080-11610
Bolt, Weld(For Front Floor Pan)
|
90080-11610 |
— | ||
|
9008011710
|
9008011710
90080-11710
New Genuine Part
|
90080-11710 |
— | ||
|
9015940183
|
9015940183
90159-40183 SCREWWWASHER |
90159-40183 |
US $1.44 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.86 |
||
|
9018904130
|
9018904130
90189-04130 GROMMET SCREW |
90189-04130 |
from US $1.05 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9046709220
|
9046709220
90467-09220 Clip, Footrest |
90467-09220 |
US $1.92 |
