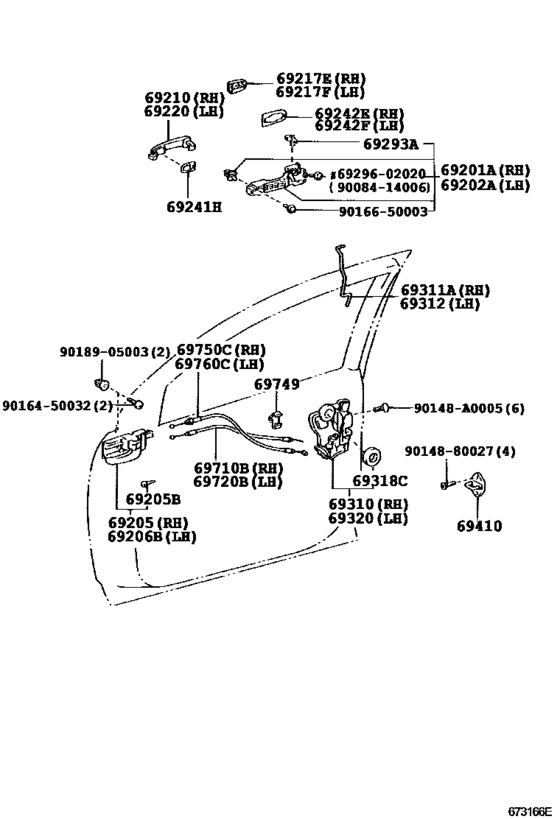

Front Door Lock & Handle ([01.2002 - ] (0201- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69201A
|
69201A
69201-AA010 Frame Sub-Assy, Front Door Outside Handle, Rh[05.2004 - 06.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69201-AA010 |
US $74.26 |
||
| replacement | |||||
|
69201A
|
69201A
69201-AA011 Frame Sub-Assy, Front Door Outside Handle, Rh[05.2004 - 06.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69201-AA011 |
US $74.26 |
||
|
69202A
|
69202A
69202-AA010 Frame Sub-Assy, Front Door Outside Handle, Lh[05.2004 - 06.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69202-AA010 |
US $74.26 |
||
| replacement | |||||
|
69202A
|
69202A
69202-AA011 Frame Sub-Assy, Front Door Outside Handle, Lh[05.2004 - 06.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69202-AA011 |
US $74.26 |
||
|
69205
|
69205
69205-02090-B0
Handle Sub-Assy, Front Door Inside, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S *CR,DK.GRAY,TRIM1# |
69205-02090-B0 |
— | ||
|
69205B
|
69205B
90080-54005
Cushion(For Front Door Inside Handle)
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90080-54005 |
— | ||
|
69206B
|
69206B
69206-02090-B0
Handle Sub-Assy, Front Door Inside, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S *CR,DK.GRAY,TRIM1# |
69206-02090-B0 |
— | ||
|
69210
|
69210
69211-AA020-A0 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69211-AA020-A0 |
US $31.74 |
||
|
69210
|
69210
69211-AA020-B1
Handle Assy, Front Door, Outside Rh
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69211-AA020-B1 |
— | ||
|
69210
|
69210
69211-AA020-B3
Handle Assy, Front Door, Outside Rh
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69211-AA020-B3 |
— | ||
|
69210
|
69210
69211-AA020-C1 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69211-AA020-C1 |
US $38 |
||
|
69210
|
69210
69211-AA020-D3 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69211-AA020-D3 |
US $45.86 |
||
|
69210
|
69210
69211-AA020-J2 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69211-AA020-J2 |
US $45.86 |
||
|
69217E
|
69217E
69227-AA010-A0 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69227-AA010-A0 |
US $6.41 |
||
| replacement | |||||
|
69217E
|
69217E
69217-33010-A0 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69217-33010-A0 |
US $5.53 |
||
|
69217E
|
69217E
69227-AA010-B1
Cover, Front Door Outside Handle
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69227-AA010-B1 |
— | ||
|
69217E
|
69217E
69227-AA010-B3 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69227-AA010-B3 |
US $5.24 |
||
|
69217E
|
69217E
69227-AA010-C1 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69227-AA010-C1 |
US $6.84 |
||
|
69217E
|
69217E
69227-AA010-D3 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69227-AA010-D3 |
US $6.41 |
||
|
69217E
|
69217E
69227-AA010-J2 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69227-AA010-J2 |
US $6.41 |
||
|
69217F
|
69217F
69227-AA010-A0 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69227-AA010-A0 |
US $6.41 |
||
| replacement | |||||
|
69217F
|
69217F
69217-33010-A0 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69217-33010-A0 |
US $5.53 |
||
|
69217F
|
69217F
69227-AA010-B1
Cover, Front Door Outside Handle
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69227-AA010-B1 |
— | ||
|
69217F
|
69217F
69227-AA010-B3 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69227-AA010-B3 |
US $5.24 |
||
|
69217F
|
69217F
69227-AA010-C1 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69227-AA010-C1 |
US $6.84 |
||
|
69217F
|
69217F
69227-AA010-D3 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69227-AA010-D3 |
US $6.41 |
||
|
69217F
|
69217F
69227-AA010-J2 Cover, Front Door Outside Handle, Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69227-AA010-J2 |
US $6.41 |
||
|
69220
|
69220
69211-AA020-A0 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69211-AA020-A0 |
US $31.74 |
||
|
69220
|
69220
69211-AA020-B1
Handle Assy, Front Door, Outside Rh
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69211-AA020-B1 |
— | ||
|
69220
|
69220
69211-AA020-B3
Handle Assy, Front Door, Outside Rh
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69211-AA020-B3 |
— | ||
|
69220
|
69220
69211-AA020-C1 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69211-AA020-C1 |
US $38 |
||
|
69220
|
69220
69211-AA020-D3 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69211-AA020-D3 |
US $45.86 |
||
|
69220
|
69220
69211-AA020-J2 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69211-AA020-J2 |
US $45.86 |
||
|
69241H
|
69241H
69241-AA020 Pad, Front Door Outside Handle, Front[05.2004 - 01.2008] ZZE132,133,134..NAP; ZZE130,131..NAP |
69241-AA020 |
US $5.97 |
||
|
69242E
|
69242E
69238-AA010
Pad, Front Door Outside Handle, Rear
[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
69238-AA010 |
— | ||
|
69242F
|
69242F
69238-AA010
Pad, Front Door Outside Handle, Rear
[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
69238-AA010 |
— | ||
|
69293A
|
69293A
69293-33010 Snap, Front Door Outside Handle[05.2004 -] ZZE132,133,134..NAP RH; ZZE130,131..NAP RH |
69293-33010 |
US $1.28 |
||
|
69293A
|
69293A
69293-33020 Snap, Front Door Outside Handle[05.2004 -] ZZE132,133,134..NAP LH; ZZE130,131..NAP LH |
69293-33020 |
US $1.16 |
||
|
69310
|
69310
69030-02130
Lock Assy, Front Door W/motor, Rh
[05.2004 - 07.2006] ZZE133,134..NAP W(POWER DOOR LOCK); ZZE131..NAP W(POWER DOOR LOCK) |
69030-02130 |
— | ||
|
69311A
|
69311A
69311-02060
Rod, Front Door Lock Open, Rh
[05.2004 - 07.2006] ZZE131..NAP |
69311-02060 |
— | ||
|
69312
|
69312
69312-02060
Rod, Front Door Lock Open, Lh
[05.2004 - 07.2006] ZZE131..NAP |
69312-02060 |
— | ||
|
69318C
|
69318C
69318-AA010 Seal, Door Lock Wiring Harness[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
69318-AA010 |
US $1.60 |
||
|
69320
|
69320
69040-02120
Lock Assy, Front Door W/motor, Lh
[05.2004 - 07.2006] ZZE133,134..NAP W(POWER DOOR LOCK); ZZE131..NAP W(POWER DOOR LOCK) |
69040-02120 |
— | ||
|
69410
|
69410
69410-02030 Plate Assy, Front Door Lock Striker[05.2004 - 10.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69410-02030 |
US $10.19 |
||
|
69710B
|
69710B
69710-02020
Cable Assy, Front Door Lock Remote Control, Rh
[05.2004 - 07.2006] ZZE131..NAP |
69710-02020 |
— | ||
|
69720B
|
69720B
69710-02020
Cable Assy, Front Door Lock Remote Control, Rh
[05.2004 - 07.2006] ZZE131..NAP |
69710-02020 |
— | ||
|
69749
|
69749
69749-32040 Clamp, Front Door Lock Link[05.2004 - 08.2006] ZZE131..NAP |
69749-32040 |
US $3.36 |
||
|
69750C
|
69750C
69750-02030
Cable Assy, Front Door Inside Locking, Rh
[05.2004 - 07.2006] ZZE131..NAP |
69750-02030 |
— | ||
|
69760C
|
69760C
69760-02030
Cable Assy, Front Door Inside Locking Lh
[05.2004 - 07.2006] ZZE131..NAP |
69760-02030 |
— | ||
|
90148A0005
|
90148A0005
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
6929602020
|
6929602020
69296-02020
Screw, Door Inside Handle
|
69296-02020 |
— | ||
|
9008414006
|
9008414006
90084-14006
New Genuine Part
|
90084-14006 |
— | ||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9016650003
|
9016650003
90166-50003 New Genuine Part |
90166-50003 |
US $0.73 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.15 |
||
