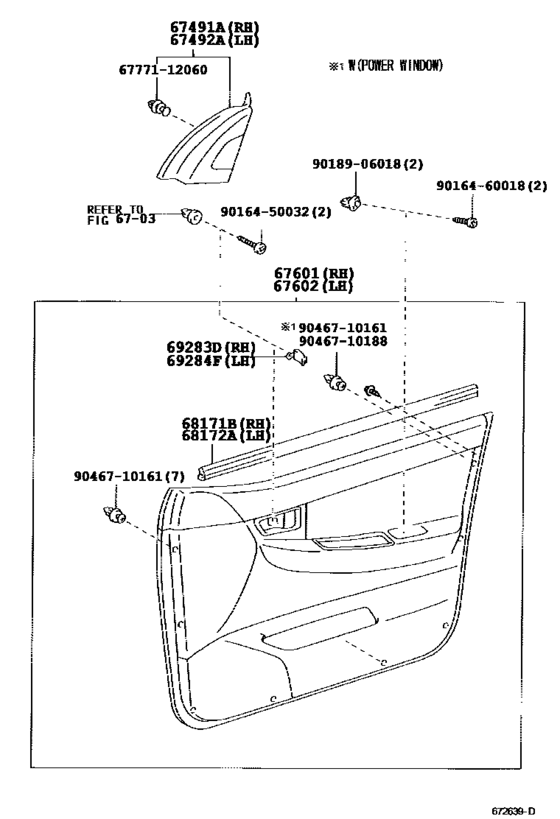

Front Door Panel & Glass ([01.2002 - ] (0201- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-02150
Garnish, Front Door Lower Frame Bracket, Rh
[05.2004 - 07.2006] ZZE131..NAP |
67491-02150 |
— | ||
| replacement | |||||
|
67491A
|
67491A
67491-12460 Garnish, Front Door Lower Frame Bracket, Rh[05.2004 - 07.2006] ZZE131..NAP |
67491-12460 |
US $12.38 |
||
|
67491A
|
67491A
67491-02160
Garnish, Front Door Lower Frame Bracket, Rh
[05.2004 - 07.2006] ZZE131..NAP W(TWEETER SPEAKER) |
67491-02160 |
— | ||
|
67492A
|
67492A
67492-02150
Garnish, Front Door Lower Frame Bracket, Lh
[05.2004 - 07.2006] ZZE131..NAP |
67492-02150 |
— | ||
| replacement | |||||
|
67492A
|
67492A
67492-12460 Garnish, Front Door Lower Frame Bracket, Lh[05.2004 - 07.2006] ZZE131..NAP |
67492-12460 |
US $12.38 |
||
|
67492A
|
67492A
67492-02160
Garnish, Front Door Lower Frame Bracket, Lh
[05.2004 - 07.2006] ZZE131..NAP W(TWEETER SPEAKER) |
67492-02160 |
— | ||
|
67601
|
67601
67610-02C00-B0
Board Sub-Assy, Front Door Trim, Rh
[05.2004 - 07.2006] ZZE131..NAP DK.GRAY,TRIM1# |
67610-02C00-B0 |
— | ||
|
67601
|
67601
67610-02C10-B0
Board Sub-Assy, Front Door Trim, Rh
[05.2004 - 07.2006] ZZE131..NAP W(POWER WINDOW),STONE,TRIM1# |
67610-02C10-B0 |
— | ||
|
67602
|
67602
67620-02C00-B0
Board Sub-Assy, Front Door Trim, Lh
[05.2004 - 07.2006] ZZE131..NAP DK.GRAY,TRIM1# |
67620-02C00-B0 |
— | ||
|
67602
|
67602
67620-02C10-B0
Board Sub-Assy, Front Door Trim, Lh
[05.2004 - 07.2006] ZZE131..NAP W(POWER WINDOW),STONE,TRIM1# |
67620-02C10-B0 |
— | ||
|
68171B
|
68171B
68171-02100
Weatherstrip, Front Door Glass, Inner Rh
[05.2004 -] ZZE130,131..NAP |
68171-02100 |
— | ||
|
68172A
|
68172A
68172-02090
Weatherstrip, Front Door Glass, Inner Lh
[05.2004 -] ZZE130,131..NAP |
68172-02090 |
— | ||
|
69283D
|
69283D
69283-02010-B1 Plug, Front Door Inside Handle Bezel, Rh[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
69283-02010-B1 |
US $1.60 |
||
|
69284F
|
69284F
69283-02010-B1 Plug, Front Door Inside Handle Bezel, Rh[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
69283-02010-B1 |
US $1.60 |
||
|
6777112060
|
6777112060
67771-12060 Retainer, Door Trim |
67771-12060 |
US $1.60 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9016460018
|
9016460018
90164-60018 SCREW |
90164-60018 |
from US $0.76 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9046710188
|
9046710188
90467-10188 Clip(For Deck Boad) |
90467-10188 |
from US $1.28 |
||
