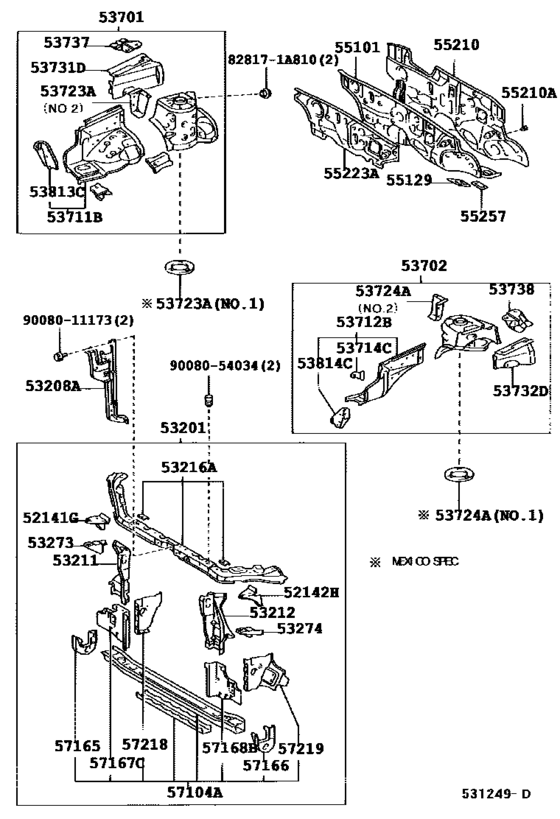

Front Fender Apron & Dash Panel ([01.2002 - ] (0201- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-02060
Stay, Front Bumper, Rh
[05.2004 - 07.2006] ZZE131..NAP |
52141-02060 |
— | ||
|
52142H
|
52142H
52142-02060
Stay, Front Bumper, Lh
[05.2004 - 07.2006] ZZE131..NAP |
52142-02060 |
— | ||
|
53201
|
53201
53201-02100
Support Sub-Assy, Radiator
[05.2004 - 01.2008] ZZE130,131..NAP |
53201-02100 |
— | ||
|
53208A
|
53208A
53208-02060
Support Sub-Assy, Hood Lock
[05.2004 - 01.2008] ZZE130,131..NAP |
53208-02060 |
— | ||
|
53211
|
53211
53211-02070
Support, Radiator, Rh
[05.2004 - 07.2006] ZZE131..NAP |
53211-02070 |
— | ||
|
53212
|
53212
53212-02070
Support, Radiator, Lh
[05.2004 - 07.2006] ZZE131..NAP |
53212-02070 |
— | ||
|
53216A
|
53216A
53216-02909
Support, Radiator, Upper
[05.2004 -] ZZE130,131..NAP |
53216-02909 |
— | ||
|
53273
|
53273
53273-02040
Bracket, Front Bumper Arm Mounting, Rh
[05.2004 - 07.2006] ZZE131..NAP |
53273-02040 |
— | ||
|
53274
|
53274
53274-02040
Bracket, Front Bumper Arm Mounting, Lh
[05.2004 - 07.2006] ZZE131..NAP |
53274-02040 |
— | ||
|
53701
|
53701
53701-02120
Apron Sub-Assy, Front Fender, Rh
[05.2004 - 01.2008] ZZE130,131..NAP |
53701-02120 |
— | ||
|
53702
|
53702
53702-02060
Apron Sub-Assy, Front Fender, Lh
[05.2004 - 01.2008] ZZE130,131..NAP |
53702-02060 |
— | ||
|
53711B
|
53711B
53711-02903 Apron, Front Fender, Front Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
53711-02903 |
US $87.36 |
||
|
53712B
|
53712B
53712-02903 Apron, Front Fender, Front Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
53712-02903 |
US $87.36 |
||
|
53714C
|
53714C
53714-02030 Extension, Front Fender Apron, Front Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
53714-02030 |
US $4.95 |
||
|
53723A
|
53723A
53723-02020 Reinforcement, Front Spring Support, Rh[05.2004 -] ZZE132..NAP NO.2; ZZE133,134..NAP NO.2; ZZE131..NAP NO.2 |
53723-02020 |
US $13.98 |
||
|
53724A
|
53724A
53724-02020 Reinforcement, Front Spring Support, Lh[05.2004 - 07.2006] ZZE133,134..NAP NO.2; ZZE131..NAP |
53724-02020 |
US $14.41 |
||
|
53731D
|
53731D
53731-02060 Member, Front Apron To Cowl Side, Upper Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
53731-02060 |
US $22.13 |
||
|
53732D
|
53732D
53732-02050 Member, Front Apron To Cowl Side, Upper Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
53732-02050 |
US $22.13 |
||
|
53737
|
53737
53737-02010
Plate, Front Apron To Cowl Side Member, Rh
[05.2004 - 07.2006] ZZE131..NAP |
53737-02010 |
— | ||
|
53738
|
53738
53738-02010
Plate, Front Apron To Cowl Side Member, Lh
[05.2004 - 07.2006] ZZE131..NAP |
53738-02010 |
— | ||
|
53813C
|
53813C
53813-02010
Extension, Front Fender, Rh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
53813-02010 |
— | ||
|
53814C
|
53814C
53814-02020
Extension, Front Fender, Lh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
53814-02020 |
— | ||
|
55101
|
55101
55101-02390
Panel Sub-Assy, Dash
[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
55101-02390 |
— | ||
|
55129
|
55129
55129-02020 Cover, Dash Panel Hole[05.2004 - 07.2006] ZZE133,134..NAP RH; ZZE131..NAP RH |
55129-02020 |
US $9.46 |
||
|
55129
|
55129
55139-02010 Cover, Dash Panel Hole[05.2004 - 07.2006] ZZE133,134..NAP LH; ZZE131..NAP LH |
55139-02010 |
US $9.32 |
||
|
55210
|
55210
55210-02160
Insulator Assy, Dash Panel
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
55210-02160 |
— | ||
|
55210A
|
55210A
90467-10005-B0 Clip[05.2004 - 01.2008] ZZE130,131..NAP MD.CHARCOAL |
90467-10005-B0 |
US $3.20 |
||
|
55223A
|
55223A
55223-02100
Insulator, Dash Panel, Outer
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
55223-02100 |
— | ||
|
55257
|
55257
55257-02020 Cover, Dash Panel Opening[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
55257-02020 |
US $4.95 |
||
|
57104A
|
57104A
57104-02072 Member Sub-Assy, Front Cross[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57104-02072 |
US $251.89 |
||
|
57165
|
57165
57165-02040 Reinforcement, Front Crossmember, Lower Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57165-02040 |
US $10.63 |
||
|
57166
|
57166
57166-02030 Reinforcement, Front Crossmember, Lower Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57166-02030 |
US $10.63 |
||
|
57167C
|
57167C
57167-02040 Gusset, Front Crossmember Side, Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57167-02040 |
US $26.50 |
||
|
57168B
|
57168B
57168-02040 Gusset, Front Crossmember Side, Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57168-02040 |
US $23.88 |
||
|
57218
|
57218
57218-02031 Gusset, Front Side Member, No.1[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57218-02031 |
US $18.05 |
||
|
57219
|
57219
57219-02031 Gusset, Front Side Member, No.2[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
57219-02031 |
US $18.93 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9008011173
|
9008011173
90080-11173
New Genuine Part
|
90080-11173 |
— | ||
|
9008054034
|
9008054034
90080-54034 New Genuine Part |
90080-54034 |
US $4.22 |
