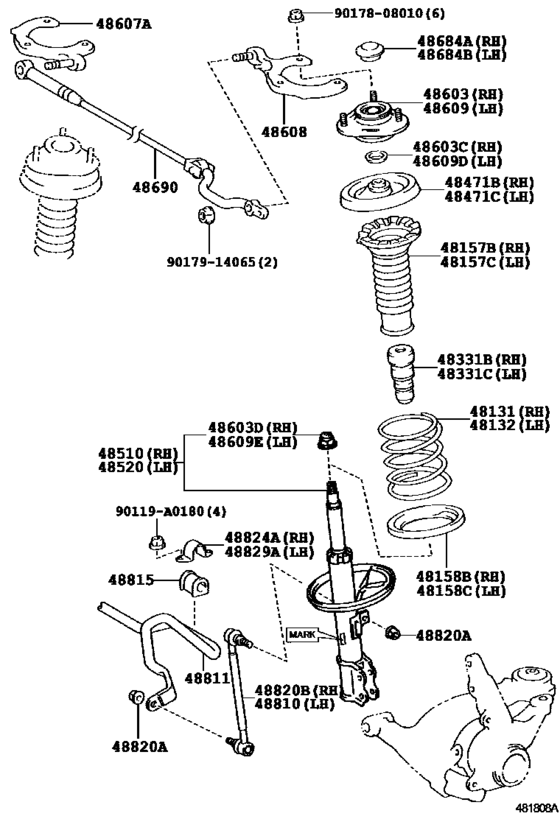

Front Spring & Shock Absorber ([05.2004 - ] (0405- )ZZE131..NAP ; (0607- )NAP..XR..USA) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48135-02100
Spring, Front Coil, Rh
[05.2004 - 07.2006] ZZE131..NAP |
48135-02100 |
— | ||
|
48132
|
48132
48135-02100
Spring, Front Coil, Rh
[05.2004 - 07.2006] ZZE131..NAP |
48135-02100 |
— | ||
|
48157B
|
48157B
48157-02070
Insulator, Front Coil Spring, Upper Rh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48157-02070 |
— | ||
|
48157C
|
48157C
48157-02070
Insulator, Front Coil Spring, Upper Rh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48157-02070 |
— | ||
|
48158B
|
48158B
48158-02060
Insulator, Front Coil Spring, Lower Rh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48158-02060 |
— | ||
|
48158C
|
48158C
48158-02060
Insulator, Front Coil Spring, Lower Rh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48158-02060 |
— | ||
|
48331B
|
48331B
48331-AB010 Bumper, Front Spring, Rh[05.2004 - 07.2006] ZZE131..NAP |
48331-AB010 |
US $13.80 |
||
|
48331C
|
48331C
48331-AB010 Bumper, Front Spring, Rh[05.2004 - 07.2006] ZZE131..NAP |
48331-AB010 |
US $13.80 |
||
|
48471B
|
48471B
48044-02050
Seat, Front Coil Spring, Upper Rh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48044-02050 |
— | ||
|
48471C
|
48471C
48044-02050
Seat, Front Coil Spring, Upper Rh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48044-02050 |
— | ||
|
48510
|
48510
48510-09B00
Absorber Assy, Shock, Front Rh
[05.2004 - 07.2006] ZZE131..NAP MARK 48510-02350 |
48510-09B00 |
— | ||
|
48520
|
48520
48520-09A20
Absorber Assy, Shock, Front Lh
[05.2004 - 07.2006] ZZE131..NAP MARK 48520-02350 |
48520-09A20 |
— | ||
|
48603
|
48603
48609-01050 Support Sub-Assy, Front Suspension, Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48609-01050 |
US $234.26 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90303-22002 |
US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90179-14015 |
from US $1.93 |
||
|
48607A
|
48607A
48607-12030
Bracket Sub-Assy, Tower Bar, Rh
[05.2004 - 07.2006] ZZE131..NAP |
48607-12030 |
— | ||
|
48608
|
48608
48608-12030
Bracket Sub-Assy, Tower Bar, Lh
[05.2004 - 07.2006] ZZE131..NAP |
48608-12030 |
— | ||
|
48609
|
48609
48609-01050 Support Sub-Assy, Front Suspension, Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48609-01050 |
US $234.26 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90303-22002 |
US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90179-14015 |
from US $1.93 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48684-52010 |
US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48684-52010 |
US $9.60 |
||
|
48690
|
48690
48690-12040
Bar Assy, Front Suspension, Tower
[05.2004 - 07.2006] ZZE131..NAP |
48690-12040 |
— | ||
|
48810
|
48810
48820-02030
Front Stabilizer Link Assy
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48820-02030 |
— | ||
|
48811
|
48811
48811-AB010 Bar, Stabilizer, Front[05.2004 - 10.2007] ZZE132,133..NAP; ZZE130,131..NAP |
48811-AB010 |
US $182 |
||
| replacement | |||||
|
48811
|
48811
48811-AB011 Bar, Stabilizer, Front[05.2004 - 10.2007] ZZE132,133..NAP; ZZE130,131..NAP |
48811-AB011 |
US $113.57 |
||
|
48815
|
48815
48815-02100
Bush, Front Stabilizer Bar, No.1
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48815-02100 |
— | ||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90179-12151 |
from US $0.96 |
||
|
48820B
|
48820B
48820-02030
Front Stabilizer Link Assy
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48820-02030 |
— | ||
|
48824A
|
48824A
48824-02030 Bracket, Front Stabilizer, No.1 Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48824-02030 |
US $9.32 |
||
| replacement | |||||
|
48824A
|
48824A
48824-06020
Bracket, Stabilizer, Front
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48824-06020 |
— | ||
|
48829A
|
48829A
48824-02030 Bracket, Front Stabilizer, No.1 Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48824-02030 |
US $9.32 |
||
| replacement | |||||
|
48829A
|
48829A
48824-06020
Bracket, Stabilizer, Front
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
48824-06020 |
— | ||
|
90119A0180
|
90119A0180
90119-A0180
New Genuine Part
|
90119-A0180 |
— | ||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
from US $1.07 |
||
|
9017914065
|
9017914065
90179-14065 NUT |
90179-14065 |
from US $0.99 |
||
