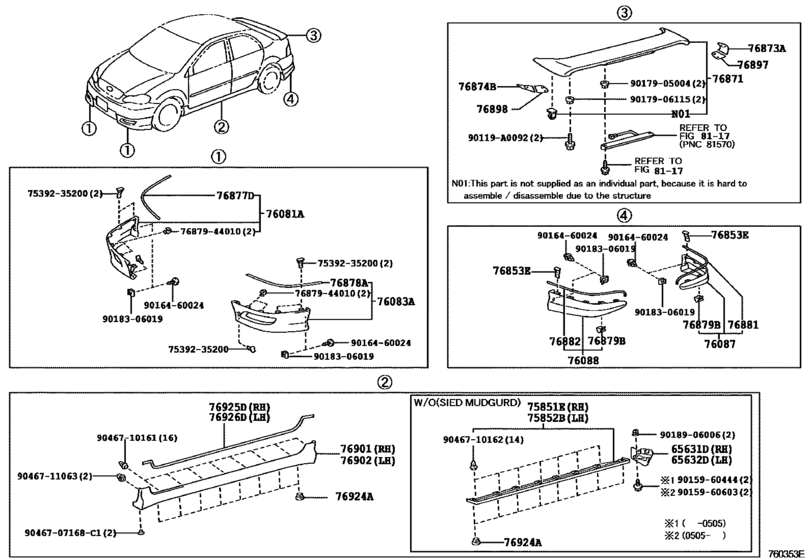

Mudguard & Spoiler ([05.2004 - ] (0405- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76081A
|
76081A
76081-02030-A0
Spoiler Sub-Assy, Front Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S SUPER WHITE 2,040 |
76081-02030-A0 |
— | ||
|
76081A
|
76081A
76081-02030-B0
Spoiler Sub-Assy, Front Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY M.M.,1E3 |
76081-02030-B0 |
— | ||
|
76081A
|
76081A
76081-02030-B1
Spoiler Sub-Assy, Front Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S SILVER M.M.,1E7 |
76081-02030-B1 |
— | ||
|
76081A
|
76081A
76081-02030-C0
Spoiler Sub-Assy, Front Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S BLACK MC.,209 |
76081-02030-C0 |
— | ||
|
76081A
|
76081A
76081-02030-D0
Spoiler Sub-Assy, Front Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S RED M.M.,3P1 |
76081-02030-D0 |
— | ||
|
76081A
|
76081A
76081-02030-J0
Spoiler Sub-Assy, Front Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
76081-02030-J0 |
— | ||
|
76083A
|
76083A
76083-02030-A0
Spoiler Sub-Assy, Front Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S SUPER WHITE 2,040 |
76083-02030-A0 |
— | ||
|
76083A
|
76083A
76083-02030-B0
Spoiler Sub-Assy, Front Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY M.M.,1E3 |
76083-02030-B0 |
— | ||
|
76083A
|
76083A
76083-02030-B1
Spoiler Sub-Assy, Front Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S SILVER M.M.,1E7 |
76083-02030-B1 |
— | ||
|
76083A
|
76083A
76083-02030-C0
Spoiler Sub-Assy, Front Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S BLACK MC.,209 |
76083-02030-C0 |
— | ||
|
76083A
|
76083A
76083-02030-D0
Spoiler Sub-Assy, Front Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S RED M.M.,3P1 |
76083-02030-D0 |
— | ||
|
76083A
|
76083A
76083-02030-J0
Spoiler Sub-Assy, Front Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
76083-02030-J0 |
— | ||
|
76087
|
76087
76087-02010-A1
Spoiler Sub-Assy, Rear No.1
[05.2004 - 01.2008] ZZE130,131..NAP..S SUPER WHITE 2,040 |
76087-02010-A1 |
— | ||
|
76087
|
76087
76087-02010-B4
Spoiler Sub-Assy, Rear No.1
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY,1E3 |
76087-02010-B4 |
— | ||
|
76087
|
76087
76087-02010-B5
Spoiler Sub-Assy, Rear No.1
[05.2004 - 01.2008] ZZE130,131..NAP..S SILVER M.M.,1E7 |
76087-02010-B5 |
— | ||
|
76087
|
76087
76087-02010-C1
Spoiler Sub-Assy, Rear No.1
[05.2004 - 01.2008] ZZE130,131..NAP..S BLACK MC.,209 |
76087-02010-C1 |
— | ||
|
76087
|
76087
76087-02010-D1
Spoiler Sub-Assy, Rear No.1
[05.2004 - 01.2008] ZZE130,131..NAP..S RED M.M.,3P1 |
76087-02010-D1 |
— | ||
|
76087
|
76087
76087-02010-J1
Spoiler Sub-Assy, Rear No.1
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
76087-02010-J1 |
— | ||
|
76088
|
76088
76088-02010-A1
Spoiler Sub-Assy, Rear No.2
[05.2004 - 01.2008] ZZE130,131..NAP..S SUPER WHITE 2,040 |
76088-02010-A1 |
— | ||
|
76088
|
76088
76088-02010-B4
Spoiler Sub-Assy, Rear No.2
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY,1E3 |
76088-02010-B4 |
— | ||
|
76088
|
76088
76088-02010-B5
Spoiler Sub-Assy, Rear No.2
[05.2004 - 01.2008] ZZE130,131..NAP..S SILVER M.M.,1E7 |
76088-02010-B5 |
— | ||
|
76088
|
76088
76088-02010-C1
Spoiler Sub-Assy, Rear No.2
[05.2004 - 01.2008] ZZE130,131..NAP..S BLACK MC.,209 |
76088-02010-C1 |
— | ||
|
76088
|
76088
76088-02010-D1
Spoiler Sub-Assy, Rear No.2
[05.2004 - 01.2008] ZZE130,131..NAP..S RED M.M.,3P1 |
76088-02010-D1 |
— | ||
|
76088
|
76088
76088-02010-J1
Spoiler Sub-Assy, Rear No.2
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
76088-02010-J1 |
— | ||
|
76853E
|
76853E
76853-10010 Retainer, Front Spoiler, Upper Rh[05.2004 - 01.2008] ZZE130,131..NAP..S |
76853-10010 |
US $3.52 |
||
|
76871
|
76871
76871-02900
Spoiler, Rear
[05.2004 - 01.2008] ZZE130,131..NAP |
76871-02900 |
— | ||
|
76873A
|
76873A
76783-02020
Protector, Rear Spoiler, Rh
[05.2004 -] ZZE130,131..NAP |
76783-02020 |
— | ||
|
76874B
|
76874B
76784-02020
Protector, Rear Spoiler, Lh
[05.2004 -] ZZE130,131..NAP |
76784-02020 |
— | ||
|
76877D
|
76877D
76877-02030-B0
Protector, Front Spoiler Side, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY M.M.,040 ,1E3 ,1E7 |
76877-02030-B0 |
— | ||
|
76877D
|
76877D
76877-02030-C0
Protector, Front Spoiler Side, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S BLACK MC.,209 ,3P1 ,8P1 ,8P4 |
76877-02030-C0 |
— | ||
|
76878A
|
76878A
76878-02030-B0
Protector, Front Spoiler Side, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY M.M.,040 ,1E3 ,1E7 |
76878-02030-B0 |
— | ||
|
76878A
|
76878A
76878-02030-C0
Protector, Front Spoiler Side, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S BLACK MC.,209 ,3P1 ,8P1 ,8P4 |
76878-02030-C0 |
— | ||
|
76879B
|
76879B
76879-44010 Clip[05.2004 -] ZZE130,131..NAP..S |
76879-44010 |
from US $0.59 |
||
|
76881
|
76881
76881-02010-B0
Protector, Rear Spoiler Side, No.1 Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
76881-02010-B0 |
— | ||
|
76881
|
76881
76881-02010-C0
Protector, Rear Spoiler Side, No.1 Rh
[05.2004 - 07.2006] ZZE131..NAP BLACK,209 ,3P1 ,8P4 |
76881-02010-C0 |
— | ||
|
76882
|
76882
76882-02010-B0
Protector, Rear Spoiler Side, No.1 Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
76882-02010-B0 |
— | ||
|
76882
|
76882
76882-02010-C0
Protector, Rear Spoiler Side, No.1 Lh
[05.2004 - 07.2006] ZZE131..NAP BLACK,209 ,3P1 ,8P4 |
76882-02010-C0 |
— | ||
|
76897
|
76897
76897-02020
Protector, Rear Spoiler, Side Rh
[05.2004 -] ZZE130,131..NAP |
76897-02020 |
— | ||
|
76898
|
76898
76898-02020
Protector, Rear Spoiler, Side Lh
[05.2004 -] ZZE130,131..NAP |
76898-02020 |
— | ||
|
76901
|
76901
76911-02030-A0
Mudguard Sub-Assy, Side, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S SUPER WHITE 2,040 |
76911-02030-A0 |
— | ||
|
76901
|
76901
76911-02030-B2
Mudguard Sub-Assy, Side, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY M.M.,1E3 |
76911-02030-B2 |
— | ||
|
76901
|
76901
76911-02030-B3
Mudguard Sub-Assy, Side, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S SILVER M.M.,1E7 |
76911-02030-B3 |
— | ||
|
76901
|
76901
76911-02030-C0
Mudguard Sub-Assy, Side, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S BLACK MC.,209 |
76911-02030-C0 |
— | ||
|
76901
|
76901
76911-02030-D0
Mudguard Sub-Assy, Side, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S RED M.M.,3P1 |
76911-02030-D0 |
— | ||
|
76901
|
76901
76911-02030-J0
Mudguard Sub-Assy, Side, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
76911-02030-J0 |
— | ||
|
76902
|
76902
76912-02030-A0
Mudguard Sub-Assy, Side, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S SUPER WHITE 2,040 |
76912-02030-A0 |
— | ||
|
76902
|
76902
76912-02030-B2
Mudguard Sub-Assy, Side, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY M.M.,1E3 |
76912-02030-B2 |
— | ||
|
76902
|
76902
76912-02030-B3
Mudguard Sub-Assy, Side, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S SILVER M.M.,1E7 |
76912-02030-B3 |
— | ||
|
76902
|
76902
76912-02030-C0
Mudguard Sub-Assy, Side, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S BLACK MC.,209 |
76912-02030-C0 |
— | ||
|
76902
|
76902
76912-02030-D0
Mudguard Sub-Assy, Side, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S RED M.M.,3P1 |
76912-02030-D0 |
— | ||
|
76902
|
76902
76912-02030-J0
Mudguard Sub-Assy, Side, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
76912-02030-J0 |
— | ||
|
76924A
|
76924A
76924-02010
Retainer, Side Mudguard, No.2
[05.2004 -] ZZE132..NAP..XR; ZZE130,131..NAP |
76924-02010 |
— | ||
|
76925D
|
76925D
76925-02030-B0
Protector, Side Mudguard, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
76925-02030-B0 |
— | ||
|
76925D
|
76925D
76925-02030-C0
Protector, Side Mudguard, Rh
[05.2004 - 07.2006] ZZE131..NAP BLACK,209 ,3P1 ,8P4 |
76925-02030-C0 |
— | ||
|
76926D
|
76926D
76925-02030-B0
Protector, Side Mudguard, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
76925-02030-B0 |
— | ||
|
76926D
|
76926D
76925-02030-C0
Protector, Side Mudguard, Rh
[05.2004 - 07.2006] ZZE131..NAP BLACK,209 ,3P1 ,8P4 |
76925-02030-C0 |
— | ||
|
90119A0092
|
90119A0092
90119-A0092 New Genuine Part |
90119-A0092 |
US $1.16 |
||
|
7539235200
|
7539235200
75392-35200 Retainer |
75392-35200 |
from US $1.38 |
||
|
7687944010
|
7687944010
76879-44010 Clip |
76879-44010 |
from US $0.59 |
||
|
9015960444
|
9015960444
90159-60444 SCREW WWASHER |
90159-60444 |
from US $0.66 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.66 |
||
|
9016460024
|
9016460024
90164-60024 SCREW, BINDING |
90164-60024 |
from US $0.92 |
||
|
9017905004
|
9017905004
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.82 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9046707168C1
|
9046707168C1
90467-07168-C1 Clip(For Rear Floor Finish Plate) |
90467-07168-C1 |
US $1.76 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9046710162
|
9046710162
90467-10162 Clip, Front Wheel Opening Extensoion |
90467-10162 |
from US $0.88 |
||
|
9046711063
|
9046711063
90467-11063 Clip(For Rear Bumper Retainer) |
90467-11063 |
from US $1.25 |
