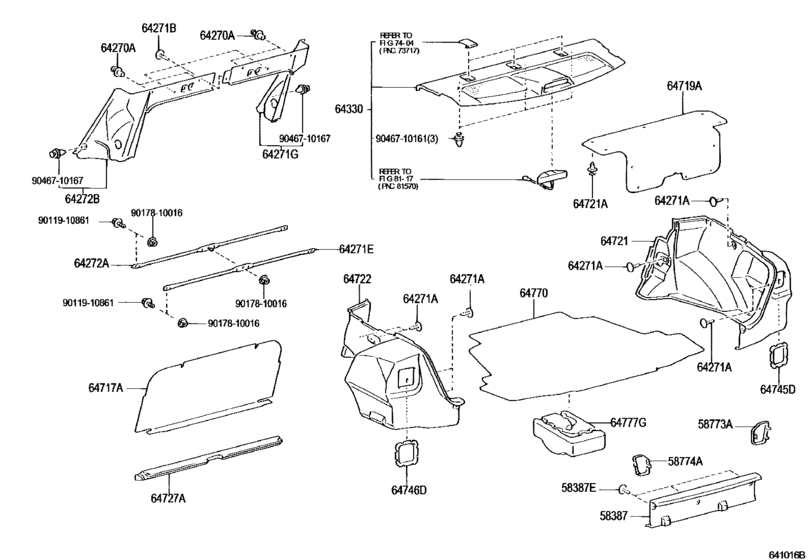

Package Tray Panel & Luggage Compartment Mat ([01.2002 - ] (0201- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-02050-B0 Plate, Rear Floor FinishREAR FLOOR FINISH [05.2004 - 01.2008] ZZE130..NAP..(CE,LE) DK.GRAY,TRIM1#,4#; ZZE130,131..NAP..S DK.GRAY,TRIM1# |
58387-02050-B0 |
US $175.50 |
||
|
58387E
|
58387E
90467-05161-B0 Clip, Instrument Panel[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) DK.GRAY,TRIM1#,4#; ZZE130,131..NAP..S DK.GRAY,TRIM1# |
90467-05161-B0 |
US $1.12 |
||
|
58773A
|
58773A
58773-02050-B0
Cover, Luggage Compartment Side, Rh
[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) DK.GRAY,TRIM1#,4#; ZZE130,131..NAP..S DK.GRAY,TRIM1# |
58773-02050-B0 |
— | ||
|
58774A
|
58774A
58774-02040-B0
Cover, Luggage Compartment Side, Lh
[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) DK.GRAY,TRIM1#,4#; ZZE130,131..NAP..S DK.GRAY,TRIM1# |
58774-02040-B0 |
— | ||
|
64271A
|
64271A
90467-05161-B0 Clip, Instrument Panel[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) DK.GRAY,TRIM1#,4#; ZZE130,131..NAP..S DK.GRAY,TRIM1# |
90467-05161-B0 |
US $1.12 |
||
|
64271E
|
64271E
64241-12030 Panel, Room Partition[05.2004 - 07.2006] ZZE131..NAP |
64241-12030 |
US $78.62 |
||
|
64272A
|
64272A
64242-12030 Panel, Room Partition, LhROOM PARTITION, LH [05.2004 - 07.2006] ZZE131..NAP |
64242-12030 |
US $80.08 |
||
|
64330
|
64330
64330-02321-B1
Panel Assy, Package Tray Trim
[05.2004 - 01.2008] ZZE130,131..NAP..S W(HIGH MOUNT STOP LAMP),DK.GRAY,TRIM1# |
64330-02321-B1 |
— | ||
|
64330
|
64330
64330-02331-B1
Panel Assy, Package Tray Trim
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
64330-02331-B1 |
— | ||
|
64717A
|
64717A
64717-02080-C0
Cover, Luggage Compartment Trim, Front
[05.2004 - 07.2006] ZZE131..NAP BLACK,TRIM1# |
64717-02080-C0 |
— | ||
|
64719A
|
64719A
64719-02040-C0
Cover, Luggage Compartment Door
[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) BLACK,TRIM1#,4#; ZZE130,131..NAP..S BLACK,TRIM1# |
64719-02040-C0 |
— | ||
|
64721
|
64721
64721-02120-C0
Cover, Luggage Compartment Trim, Inner Rh
[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) BLACK,TRIM1#,4#; ZZE130,131..NAP..S BLACK,TRIM1# |
64721-02120-C0 |
— | ||
|
64721A
|
64721A
90467-05161-B0 Clip, Instrument Panel[10.2004 - 01.2008] ZZE130..NAP..(CE,LE) DK.GRAY,TRIM1#,4#; ZZE130,131..NAP..S DK.GRAY,TRIM1# |
90467-05161-B0 |
US $1.12 |
||
|
64721A
|
64721A
90467-05165-B0 Clip(For Floor Carpet Cover)[05.2004 - 10.2004] ZZE130..NAP..(CE,LE) DK.GRAY,TRIM1#,4#; ZZE130,131..NAP..S DK.GRAY,TRIM1# |
90467-05165-B0 |
US $1.76 |
||
|
64722
|
64722
64722-02110-C0
Cover, Luggage Compartment Trim, Inner Lh
[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) BLACK,TRIM1#,4#; ZZE130,131..NAP..S BLACK,TRIM1# |
64722-02110-C0 |
— | ||
|
64745D
|
64745D
64745-02090-C0
Cover, Rear Combination Lamp Service, Rh
[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) BLACK,TRIM1#,4#; ZZE130,131..NAP..S BLACK,TRIM1# |
64745-02090-C0 |
— | ||
|
64746D
|
64746D
64745-02090-C0
Cover, Rear Combination Lamp Service, Rh
[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) BLACK,TRIM1#,4#; ZZE130,131..NAP..S BLACK,TRIM1# |
64745-02090-C0 |
— | ||
|
64770
|
64770
64771-02150-C0
Cover Assy, Spare Wheel
[05.2004 - 01.2008] ZZE130..NAP..(CE,LE) BLACK,TRIM1#,4#; ZZE130,131..NAP..S BLACK,TRIM1# |
64771-02150-C0 |
— | ||
|
64777G
|
64777G
64777-02050
Cushion, Spare Wheel
[05.2004 - 07.2006] ZZE131..NAP |
64777-02050 |
— | ||
|
9011910861
|
9011910861
90119-10861 New Genuine Part |
90119-10861 |
US $2.33 |
||
|
9017810016
|
9017810016
90178-10016 NUT FLANGE |
90178-10016 |
from US $0.94 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9046710167
|
9046710167
90467-10167 Clip(For Rear Floor Finish Plate) |
90467-10167 |
from US $1.01 |
