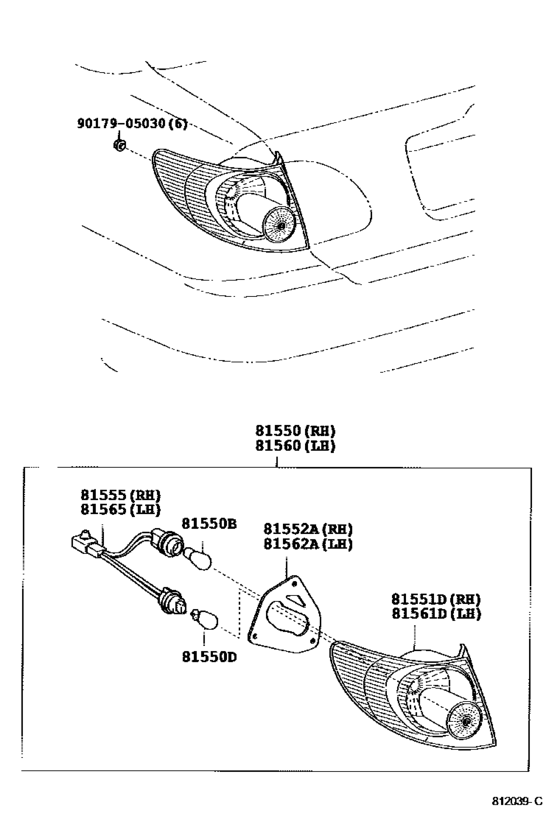

Rear Combination Lamp ([01.2002 - ] (0201- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-02290
Lamp Assy, Rear Combination, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81550-02290 |
— | ||
|
81550B
|
81550B
90084-98027 Bulb (For Front Turn Signal Lamp)[05.2004 - 07.2006] ZZE131..NAP 12V 27/8W |
90084-98027 |
US $5.59 |
||
|
81550D
|
81550D
90084-98037 Bulb(For Rear Combination Lamp)[05.2004 - 07.2006] ZZE131..NAP 12V 27/8W |
90084-98037 |
from US $3.32 |
||
|
81551D
|
81551D
81551-02290
Lens & Body, Rear Combination Lamp, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81551-02290 |
— | ||
|
81552A
|
81552A
81552-02200
Gasket, Rear Combination Lamp, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81552-02200 |
— | ||
|
81555
|
81555
81555-02200
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81555-02200 |
— | ||
|
81560
|
81560
81560-02290
Lamp Assy, Rear Combination, Lh
[05.2004 - 07.2006] ZZE131..NAP |
81560-02290 |
— | ||
|
81561D
|
81561D
81561-02290
Lens & Body, Rear Combination Lamp, Lh
[05.2004 - 07.2006] ZZE131..NAP |
81561-02290 |
— | ||
|
81562A
|
81562A
81552-02200
Gasket, Rear Combination Lamp, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81552-02200 |
— | ||
|
81565
|
81565
81555-02200
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[05.2004 - 07.2006] ZZE131..NAP |
81555-02200 |
— | ||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $1.92 |
