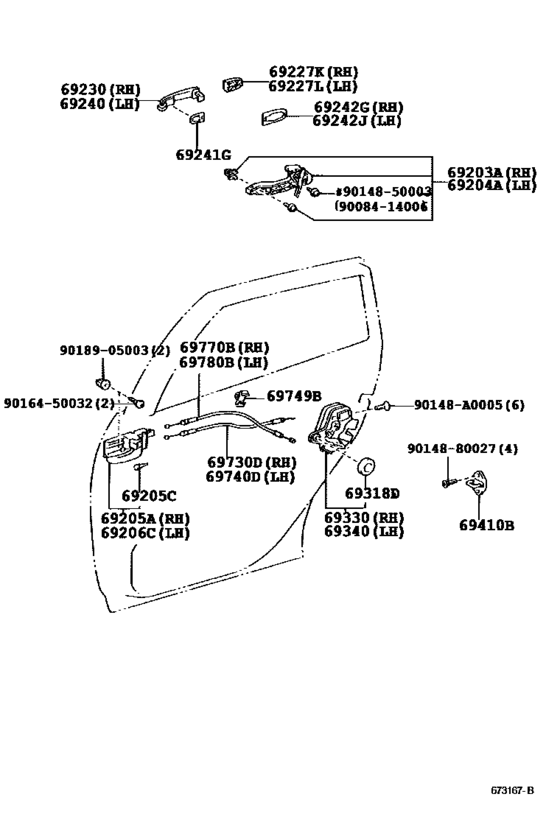

Rear Door Lock & Handle ([01.2002 - ] (0201- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69203A
|
69203A
69203-02020 Frame Sub-Assy, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69203-02020 |
US $64.94 |
||
| replacement | |||||
|
69203A
|
69203A
69203-02021 Frame Sub-Assy, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69203-02021 |
US $65.08 |
||
|
69203A
|
69203A
69203-02021 Frame Sub-Assy, Rear Door Outside Handle, Rh[04.2006 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
69203-02021 |
US $65.08 |
||
|
69204A
|
69204A
69204-02020 Frame Sub-Assy, Rear Door Outside Handle, Lh[05.2004 - 03.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69204-02020 |
US $64.94 |
||
| replacement | |||||
|
69204A
|
69204A
69204-02021
Frame Sub-Assy, Rear Door Outside Handle, Lh
[05.2004 - 03.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69204-02021 |
— | ||
|
69204A
|
69204A
69204-02021
Frame Sub-Assy, Rear Door Outside Handle, Lh
[04.2006 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
69204-02021 |
— | ||
|
69205A
|
69205A
69205-02090-B0
Handle Sub-Assy, Front Door Inside, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
69205-02090-B0 |
— | ||
|
69205C
|
69205C
90080-54005
Cushion(For Front Door Inside Handle)
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90080-54005 |
— | ||
|
69206C
|
69206C
69206-02090-B0
Handle Sub-Assy, Front Door Inside, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
69206-02090-B0 |
— | ||
|
69227K
|
69227K
69229-AA010-A0 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) SUPER WHITE 2,040; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69229-AA010-A0 |
US $9.03 |
||
| replacement | |||||
|
69227K
|
69227K
69229-AA011-A0 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) SUPER WHITE 2,040; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69229-AA011-A0 |
US $9.03 |
||
|
69227K
|
69227K
69229-AA010-B2
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) GRAY M.M.,1E3; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69229-AA010-B2 |
— | ||
| replacement | |||||
|
69227K
|
69227K
69229-AA011-B2 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) GRAY M.M.,1E3; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69229-AA011-B2 |
US $9.03 |
||
|
69227K
|
69227K
69229-AA010-B3
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) SILVER M.M.,1E7; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69229-AA010-B3 |
— | ||
| replacement | |||||
|
69227K
|
69227K
69229-AA011-B3
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) SILVER M.M.,1E7; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69229-AA011-B3 |
— | ||
|
69227K
|
69227K
69229-AA010-C0 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) BLACK MC.,209; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69229-AA010-C0 |
US $9.03 |
||
| replacement | |||||
|
69227K
|
69227K
69229-AA011-C0
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) BLACK MC.,209; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69229-AA011-C0 |
— | ||
|
69227K
|
69227K
69229-AA010-D1 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69229-AA010-D1 |
US $9.03 |
||
| replacement | |||||
|
69227K
|
69227K
69229-AA011-D1 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69229-AA011-D1 |
US $9.03 |
||
|
69227K
|
69227K
69229-AA010-J0 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) DK.BLUE M.M.,8P4; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69229-AA010-J0 |
US $8.59 |
||
| replacement | |||||
|
69227K
|
69227K
69229-AA011-J0
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) DK.BLUE M.M.,8P4; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69229-AA011-J0 |
— | ||
|
69227K
|
69227K
69229-AA011
Cover, Rear Door Outside Handle, Rh
[04.2006 - 07.2006] ZZE133,134..NAP..(XR,XRS); ZZE131..NAP |
69229-AA011 |
— | ||
|
69227L
|
69227L
69229-AA010-A0 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) SUPER WHITE 2,040; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69229-AA010-A0 |
US $9.03 |
||
| replacement | |||||
|
69227L
|
69227L
69229-AA011-A0 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) SUPER WHITE 2,040; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69229-AA011-A0 |
US $9.03 |
||
|
69227L
|
69227L
69229-AA010-B2
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) GRAY M.M.,1E3; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69229-AA010-B2 |
— | ||
| replacement | |||||
|
69227L
|
69227L
69229-AA011-B2 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) GRAY M.M.,1E3; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69229-AA011-B2 |
US $9.03 |
||
|
69227L
|
69227L
69229-AA010-B3
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) SILVER M.M.,1E7; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69229-AA010-B3 |
— | ||
| replacement | |||||
|
69227L
|
69227L
69229-AA011-B3
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) SILVER M.M.,1E7; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69229-AA011-B3 |
— | ||
|
69227L
|
69227L
69229-AA010-C0 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) BLACK MC.,209; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69229-AA010-C0 |
US $9.03 |
||
| replacement | |||||
|
69227L
|
69227L
69229-AA011-C0
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) BLACK MC.,209; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69229-AA011-C0 |
— | ||
|
69227L
|
69227L
69229-AA010-D1 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69229-AA010-D1 |
US $9.03 |
||
| replacement | |||||
|
69227L
|
69227L
69229-AA011-D1 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69229-AA011-D1 |
US $9.03 |
||
|
69227L
|
69227L
69229-AA010-J0 Cover, Rear Door Outside Handle, Rh[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) DK.BLUE M.M.,8P4; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69229-AA010-J0 |
US $8.59 |
||
| replacement | |||||
|
69227L
|
69227L
69229-AA011-J0
Cover, Rear Door Outside Handle, Rh
[05.2004 - 03.2006] ZZE132,133,134..NAP..(XR,XRS) DK.BLUE M.M.,8P4; ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69229-AA011-J0 |
— | ||
|
69227L
|
69227L
69229-AA011
Cover, Rear Door Outside Handle, Rh
[04.2006 - 07.2006] ZZE133,134..NAP..(XR,XRS); ZZE131..NAP |
69229-AA011 |
— | ||
|
69230
|
69230
69211-AA020-A0 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69211-AA020-A0 |
US $31.74 |
||
|
69230
|
69230
69211-AA020-B1
Handle Assy, Front Door, Outside Rh
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69211-AA020-B1 |
— | ||
|
69230
|
69230
69211-AA020-B3
Handle Assy, Front Door, Outside Rh
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69211-AA020-B3 |
— | ||
|
69230
|
69230
69211-AA020-C1 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69211-AA020-C1 |
US $38 |
||
|
69230
|
69230
69211-AA020-D3 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69211-AA020-D3 |
US $45.86 |
||
|
69230
|
69230
69211-AA020-J2 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69211-AA020-J2 |
US $45.86 |
||
|
69240
|
69240
69211-AA020-A0 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SUPER WHITE 2,040 |
69211-AA020-A0 |
US $31.74 |
||
|
69240
|
69240
69211-AA020-B1
Handle Assy, Front Door, Outside Rh
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND GRAY M.M.,1E3 |
69211-AA020-B1 |
— | ||
|
69240
|
69240
69211-AA020-B3
Handle Assy, Front Door, Outside Rh
[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND SILVER M.M.,1E7 |
69211-AA020-B3 |
— | ||
|
69240
|
69240
69211-AA020-C1 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND BLACK MC.,209 |
69211-AA020-C1 |
US $38 |
||
|
69240
|
69240
69211-AA020-D3 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND RED M.M.,3P1 |
69211-AA020-D3 |
US $45.86 |
||
|
69240
|
69240
69211-AA020-J2 Handle Assy, Front Door, Outside Rh[05.2004 - 01.2008] ZZE131..NAP;ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND DK.BLUE M.M.,8P4 |
69211-AA020-J2 |
US $45.86 |
||
|
69241G
|
69241G
69241-AA010 Pad, Rear Door Outside Handle, Front[05.2004 - 03.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69241-AA010 |
US $3.35 |
||
| replacement | |||||
|
69241G
|
69241G
69241-AA011
Pad, Rear Door Outside Handle, Front
[05.2004 - 03.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69241-AA011 |
— | ||
|
69241G
|
69241G
69241-AA011
Pad, Rear Door Outside Handle, Front
[04.2006 - 01.2008] ZZE132,133,134..NAP; ZZE130,131..NAP |
69241-AA011 |
— | ||
|
69242G
|
69242G
69238-AA010
Pad, Front Door Outside Handle, Rear
[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
69238-AA010 |
— | ||
|
69242J
|
69242J
69238-AA010
Pad, Front Door Outside Handle, Rear
[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
69238-AA010 |
— | ||
|
69318D
|
69318D
69318-AA010 Seal, Door Lock Wiring Harness[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
69318-AA010 |
US $1.60 |
||
|
69330
|
69330
69050-AA040
Lock Assy, Rear Door, Rh
[05.2004 - 07.2006] ZZE131..NAP W(POWER DOOR LOCK) |
69050-AA040 |
— | ||
|
69340
|
69340
69060-AA040
Lock Assy, Rear Door, Lh
[05.2004 - 07.2006] ZZE131..NAP W(POWER DOOR LOCK) |
69060-AA040 |
— | ||
|
69410B
|
69410B
69410-02030 Plate Assy, Front Door Lock Striker[05.2004 - 10.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
69410-02030 |
US $10.19 |
||
|
69730D
|
69730D
69730-02020
Cable Assy, Rear Door Lock Remote Control, Rh
[05.2004 - 07.2006] ZZE131..NAP |
69730-02020 |
— | ||
|
69740D
|
69740D
69730-02020
Cable Assy, Rear Door Lock Remote Control, Rh
[05.2004 - 07.2006] ZZE131..NAP |
69730-02020 |
— | ||
|
69749B
|
69749B
69749-32040 Clamp, Front Door Lock Link[05.2004 - 08.2006] ZZE131..NAP |
69749-32040 |
US $3.36 |
||
|
69770B
|
69770B
69770-02060
Cable Assy, Rear Door Inside Locking, Rh
[05.2004 - 07.2006] ZZE131..NAP |
69770-02060 |
— | ||
|
69780B
|
69780B
69780-02060
Cable Assy, Rear Door Inside Locking, Lh
[05.2004 - 07.2006] ZZE131..NAP |
69780-02060 |
— | ||
|
90148A0005
|
90148A0005
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9008414006
|
9008414006
90084-14006
New Genuine Part
|
90084-14006 |
— | ||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.68 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
