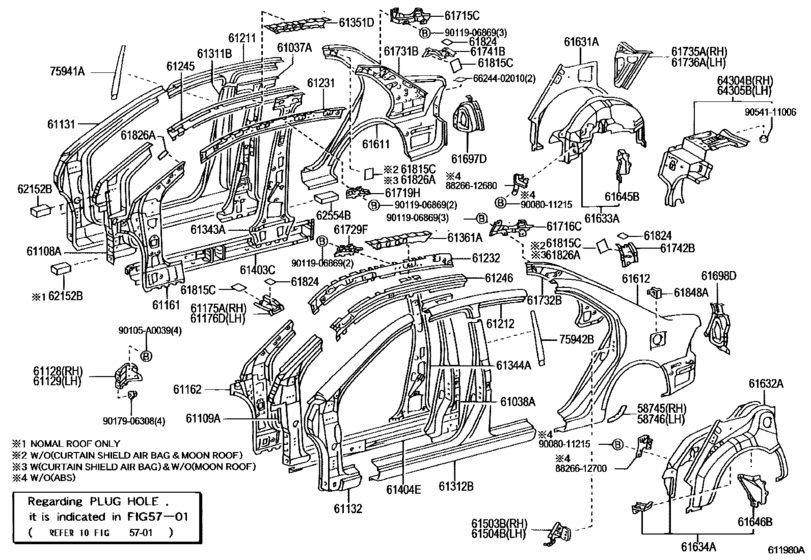

Side Member ([05.2004 - ] (0405- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61037A
|
61037A
61037-02906
Reinforcement Sub-Assy, Center Body Pillar, Rh
[05.2004 - 07.2006] ZZE131..NAP |
61037-02906 |
— | ||
|
61038A
|
61038A
61038-02906
Reinforcement Sub-Assy, Center Body Pillar, Lh
[05.2004 - 07.2006] ZZE131..NAP |
61038-02906 |
— | ||
|
61108A
|
61108A
61108-02070
Reinforce Sub-Assy, Front Body Pillar, Lower Rh
[05.2004 - 07.2006] ZZE131..NAP |
61108-02070 |
— | ||
|
61109A
|
61109A
61109-02070
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[05.2004 - 07.2006] ZZE131..NAP |
61109-02070 |
— | ||
|
61128
|
61128
61103-02060
Reinforcement, Cowl Side Panel, Rh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
61103-02060 |
— | ||
|
61129
|
61129
61104-02060
Reinforcement, Cowl Side Panel, Lh
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
61104-02060 |
— | ||
|
61131
|
61131
61131-02100
Pillar, Front Body, Upper Outer Rh
[05.2004 - 07.2006] ZZE131..NAP |
61131-02100 |
— | ||
|
61132
|
61132
61132-02130
Pillar, Front Body, Upper Outer Lh
[05.2004 - 07.2006] ZZE131..NAP |
61132-02130 |
— | ||
|
61161
|
61161
61023-02092
Pillar, Front Body, Upper Inner Rh
[05.2004 - 01.2008] ZZE130,131..NAP |
61023-02092 |
— | ||
|
61162
|
61162
61024-02092
Pillar, Front Body, Upper Inner Lh
[05.2004 - 01.2008] ZZE130,131..NAP |
61024-02092 |
— | ||
|
61175A
|
61175A
61175-02040
Reinforcement, Front Pillar, Upper Outer No.2 Rh
[05.2004 - 07.2006] ZZE131..NAP |
61175-02040 |
— | ||
|
61176D
|
61176D
61176-02040
Reinforce, Front Body Pillar, Upper Out No.2 Lh
[05.2004 - 07.2006] ZZE131..NAP |
61176-02040 |
— | ||
|
61211
|
61211
61211-02070
Rail, Roof Side, Outer Rh
[05.2004 - 07.2006] ZZE131..NAP |
61211-02070 |
— | ||
|
61212
|
61212
61212-02070
Rail, Roof Side, Outer Lh
[05.2004 - 07.2006] ZZE131..NAP |
61212-02070 |
— | ||
|
61231
|
61231
61231-02100
Rail, Roof Side, Inner Rh
[05.2004 - 07.2006] ZZE131..NAP |
61231-02100 |
— | ||
|
61232
|
61232
61232-02100
Rail, Roof Side, Inner Lh
[05.2004 - 07.2006] ZZE131..NAP |
61232-02100 |
— | ||
|
61245
|
61245
61245-02060
Reinforcement, Roof Side Rail, Outer Rh
[05.2004 - 07.2006] ZZE131..NAP |
61245-02060 |
— | ||
|
61246
|
61246
61246-02070
Reinforcement, Roof Side Rail, Outer Lh
[05.2004 - 07.2006] ZZE131..NAP |
61246-02070 |
— | ||
|
61311B
|
61311B
61311-02070
Pillar, Center Body, Outer Rh
[05.2004 - 07.2006] ZZE131..NAP |
61311-02070 |
— | ||
|
61312B
|
61312B
61312-02070
Pillar, Center Body, Outer Lh
[05.2004 - 07.2006] ZZE131..NAP |
61312-02070 |
— | ||
|
61343A
|
61343A
61343-02051
Pillar, Center Body, Inner Rh
[05.2004 - 07.2006] ZZE131..NAP |
61343-02051 |
— | ||
|
61344A
|
61344A
61344-02051
Pillar, Center Body, Inner Lh
[05.2004 - 07.2006] ZZE131..NAP |
61344-02051 |
— | ||
|
61351D
|
61351D
61351-02010
Rail, No.1 Center Outer, Rh
[05.2004 - 07.2006] ZZE131..NAP |
61351-02010 |
— | ||
|
61361A
|
61361A
61361-02010
Rail, No.1 Center Outer, Lh
[05.2004 - 07.2006] ZZE131..NAP |
61361-02010 |
— | ||
|
61403C
|
61403C
61403-02040
Reinforce Sub-Assy, Rocker, Outer Rh
[05.2004 - 07.2006] ZZE131..NAP |
61403-02040 |
— | ||
|
61404E
|
61404E
61404-02040
Reinforce Sub-Assy, Rocker, Outer Lh
[05.2004 - 07.2006] ZZE131..NAP |
61404-02040 |
— | ||
|
61503B
|
61503B
61503-02030
Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
[05.2004 - 07.2006] ZZE131..NAP |
61503-02030 |
— | ||
|
61504B
|
61504B
61504-02030
Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
[05.2004 - 07.2006] ZZE131..NAP |
61504-02030 |
— | ||
|
61611
|
61611
61601-02150
Panel, Quarter, Rh
[05.2004 - 07.2006] ZZE131..NAP |
61601-02150 |
— | ||
|
61612
|
61612
61602-02130
Panel, Quarter, Lh
[05.2004 - 07.2006] ZZE131..NAP |
61602-02130 |
— | ||
|
61631A
|
61631A
61631-02070
Panel, Quarter Wheel House, Outer Rh
[05.2004 - 01.2008] ZZE130,131..NAP |
61631-02070 |
— | ||
|
61632A
|
61632A
61632-02070
Panel, Quarter Wheel House, Outer Lh
[05.2004 - 01.2008] ZZE130,131..NAP |
61632-02070 |
— | ||
|
61633A
|
61633A
61607-02932
Panel, Quarter Wheel House, Inner Rh
[05.2004 - 07.2006] ZZE131..NAP |
61607-02932 |
— | ||
|
61634A
|
61634A
61608-02931
Panel, Quarter Wheel House, Inner Lh
[05.2004 - 07.2006] ZZE131..NAP |
61608-02931 |
— | ||
|
61645B
|
61645B
61645-02050 Gusset, Quarter Wheel House, Rear Rh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
61645-02050 |
US $26.50 |
||
|
61646B
|
61646B
61646-02050 Gusset, Quarter Wheel House, Rear Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
61646-02050 |
US $26.50 |
||
|
61697D
|
61697D
61697-02902
Housing, Quarter Panel End, Rh
[05.2004 - 07.2006] ZZE131..NAP |
61697-02902 |
— | ||
|
61698D
|
61698D
61698-02902
Housing, Quarter Panel End, Lh
[05.2004 - 07.2006] ZZE131..NAP |
61698-02902 |
— | ||
|
61715C
|
61715C
61715-02040
Bracket, Roof Side, Rh
[05.2004 - 07.2006] ZZE131..NAP |
61715-02040 |
— | ||
|
61716C
|
61716C
61716-02040
Bracket, Roof Side, Lh
[05.2004 - 07.2006] ZZE131..NAP |
61716-02040 |
— | ||
|
61719H
|
61719H
61719-02050
Bracket Sub-Assy, Roof Side Rail, Rh
[05.2004 - 07.2006] ZZE131..NAP |
61719-02050 |
— | ||
|
61729F
|
61729F
61729-02050
Bracket Sub-Assy, Roof Side Rail, Lh
[05.2004 - 07.2006] ZZE131..NAP |
61729-02050 |
— | ||
|
61731B
|
61731B
61731-02150
Panel, Roof Side, Inner Rh
[05.2004 - 07.2006] ZZE131..NAP |
61731-02150 |
— | ||
|
61732B
|
61732B
61732-02150
Panel, Roof Side, Inner Lh
[05.2004 -] ZZE130,131..NAP |
61732-02150 |
— | ||
| replacement | |||||
|
61732B
|
61732B
61732-02151
Panel, Roof Side, Inner Lh
[05.2004 -] ZZE130,131..NAP |
61732-02151 |
— | ||
|
61735A
|
61735A
61735-02040
Panel, Roof Side, Inner Rear Rh
[05.2004 - 07.2006] ZZE131..NAP |
61735-02040 |
— | ||
|
61736A
|
61736A
61736-02040
Panel, Roof Side, Inner Rear Lh
[05.2004 - 07.2006] ZZE131..NAP |
61736-02040 |
— | ||
|
61741B
|
61741B
61741-02041
Reinforcement, Back Window Opening, Rh
[05.2004 - 07.2006] ZZE131..NAP |
61741-02041 |
— | ||
|
61742B
|
61742B
61742-02041
Reinforcement, Back Window Opening, Lh
[05.2004 -] ZZE130,131..NAP |
61742-02041 |
— | ||
|
61815C
|
61815C
61815-02040 Cover, Roof Side, Inner Upper[05.2004 - 07.2006] ZZE131..NAP |
61815-02040 |
US $13.98 |
||
|
61824
|
61824
61824-02050 Plate, Noise Control, No.1[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
61824-02050 |
US $12.23 |
||
|
61826A
|
61826A
61826-52020 Plate, Noise Control, No.3[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
61826-52020 |
US $4.22 |
||
|
61848A
|
61848A
61848-02030 Retainer, Quarter Panel, Lh[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
61848-02030 |
US $5.10 |
||
|
62152B
|
62152B
62152-02020 Pad, Cowl Side Silencer, No.2[05.2004 - 07.2006] ZZE133,134..NAP W(MOON ROOF); ZZE131..NAP W(MOON ROOF) |
62152-02020 |
US $3.93 |
||
|
62554B
|
62554B
62554-02040 Pad, Pillar, No.4[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
62554-02040 |
US $3.93 |
||
|
64304B
|
64304B
64304-02901
Reinforce Sub-Assy, Package Tray Bracket, Rh
[05.2004 - 07.2006] ZZE131..NAP |
64304-02901 |
— | ||
|
64305B
|
64305B
64305-02901
Reinforce Sub-Assy, Package Tray Bracket, Lh
[05.2004 - 07.2006] ZZE131..NAP |
64305-02901 |
— | ||
|
75941A
|
75941A
75941-02020
Stripe, Center Pillar, Rh
[05.2004 - 07.2006] ZZE131..NAP |
75941-02020 |
— | ||
|
75942B
|
75942B
75942-02020
Stripe, Center Pillar, Lh
[05.2004 - 07.2006] ZZE131..NAP |
75942-02020 |
— | ||
|
90105A0039
|
90105A0039
90105-A0039
New Genuine Part
|
90105-A0039 |
— | ||
|
6624402010
|
6624402010
66244-02010
Protector, Rear Body, No.2
|
66244-02010 |
— | ||
|
8826612680
|
8826612680
88266-12680 Clamp, Air Suspension Sensor, No.1 |
88266-12680 |
US $7.86 |
||
|
8826612700
|
8826612700
88266-12700 Clamp, Air Suspension Sensor, No.1 |
88266-12700 |
US $7.86 |
||
|
9008011215
|
9008011215
90080-11215
New Genuine Part
|
90080-11215 |
— | ||
|
9011906869
|
9011906869
90119-06869 Bolt, W/washer |
90119-06869 |
US $0.96 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9054111006
|
9054111006
90541-11006 Cushion, Luggage Door Hinge |
90541-11006 |
US $1.46 |
||
