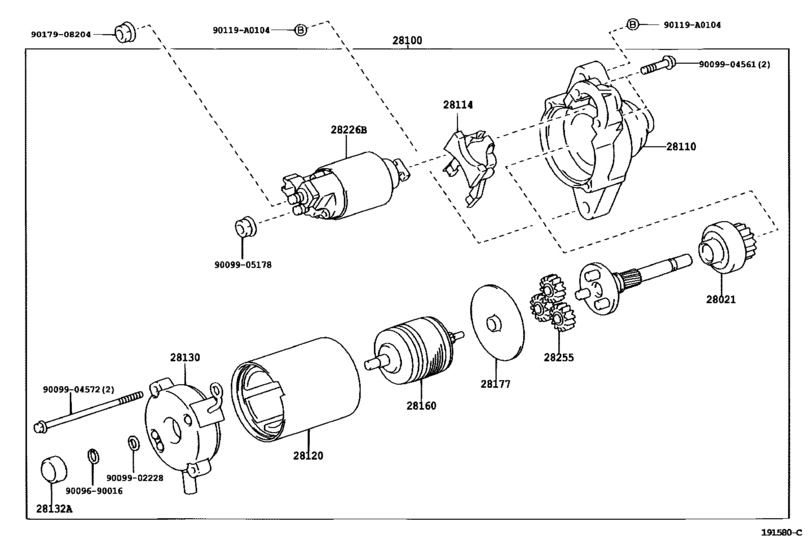

Starter ([01.2002 - ] 12V 1.6KW (0201- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21060 Clutch Sub-Assy, Starter Center Bearing[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28021-21060 |
from US $63.73 |
||
|
28100
|
28100
28100-0D080
Starter Assy
[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP 12V 1.6KW; 2ZZGE..ZZE131..NAP 12V 1.6KW |
28100-0D080 |
— | ||
|
28110
|
28110
28110-22060 Housing Assy, Starter Drive[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28110-22060 |
US $67.85 |
||
|
28114
|
28114
28114-21060 Pin, Starter Drive Lever Set[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28114-21060 |
from US $0.92 |
||
|
28120
|
28120
28120-28040
Yoke Assy, Starter
[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28120-28040 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28120-28060 |
— | ||
|
28130
|
28130
28130-21060 Frame Assy, Starter Commutator End[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28130-21060 |
from US $43.74 |
||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28132-28040 |
US $1.75 |
||
|
28160
|
28160
28160-21060 Armature Assy, Starter[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28160-21060 |
from US $97.60 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28177-28040 |
US $4.19 |
||
|
28226B
|
28226B
28226-22061 Starter Kit, Battery Terminal[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28226-22061 |
US $103.08 |
||
|
28255
|
28255
28255-28040 Gear, Planet[05.2004 - 07.2006] 1ZZFE,2ZZGE..ZZE133,134..NAP; 2ZZGE..ZZE131..NAP |
28255-28040 |
from US $4.10 |
||
|
90119A0104
|
90119A0104
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
|
9009690016
|
9009690016
90096-90016
Ring, Snap(For Venturi Throttle Valve Shaft)
|
90096-90016 |
— | ||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
