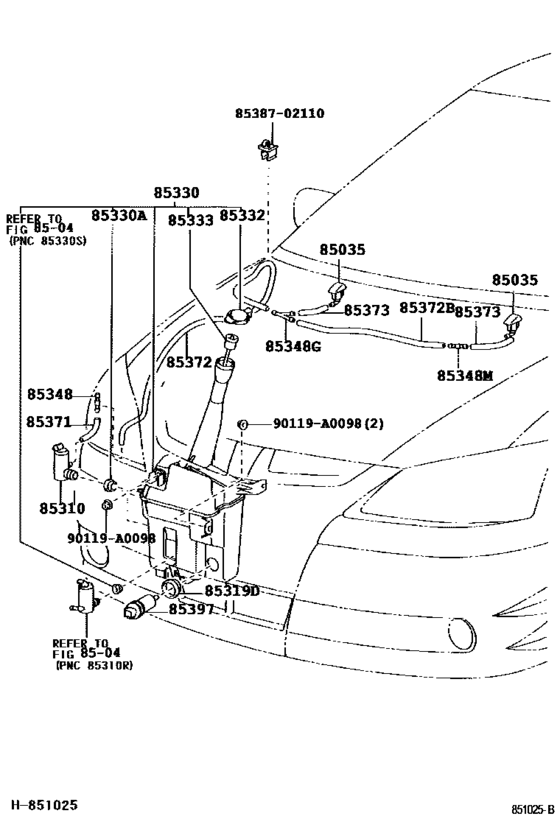

Windshield Washer ([01.2002 - ] (0201- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12280
Nozzle Sub-Assy, Washer
[05.2004 - 07.2006] ZZE131..NAP |
85381-12280 |
— | ||
|
85310
|
85310
85330-12340
Motor And Pump Assy, Windshield Washer
[11.2005 - 07.2006] ZZE131..NAP |
85330-12340 |
— | ||
|
85310
|
85310
85330-AA010
Motor And Pump Assy, Windshield Washer
[05.2004 - 10.2005] ZZE132,133,134..NAP; ZZE130,131..NAP |
85330-AA010 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-12340
Motor And Pump Assy, Windshield Washer
[05.2004 - 10.2005] ZZE132,133,134..NAP; ZZE130,131..NAP |
85330-12340 |
— | ||
|
85330
|
85330
85315-02110
Jar Assy, Windshield Washer
[05.2004 - 12.2005] ZZE132,133,134..NAP..USA; ZZE130,131..NAP..USA |
85315-02110 |
— | ||
| replacement | |||||
|
85330
|
85330
85315-02111
Jar Assy, Windshield Washer
[05.2004 - 12.2005] ZZE132,133,134..NAP..USA; ZZE130,131..NAP..USA |
85315-02111 |
— | ||
|
85330
|
85330
85315-02111
Jar Assy, Windshield Washer
[12.2005 -] ZZE132,133,134..NAP..USA; ZZE130,131..NAP..USA |
85315-02111 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-AA020 Cap, Windshield Washer Jar[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
85316-AA020 |
US $1.89 |
||
|
85333
|
85333
85312-02020
Filter, Windshield Washer Jar, No.2
[05.2004 -] ZZE132,133,134..NAP..USA; ZZE130,131..NAP..USA |
85312-02020 |
— | ||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[05.2004 - 10.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
85375-10260 |
from US $1.62 |
||
|
85348G
|
85348G
85348-14390 Joint, Windshield Washer Hose, No.1[05.2004 - 10.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
85348-14390 |
from US $1.40 |
||
|
85348M
|
85348M
85375-10260 Joint, Windshield Washer Hose, No.1[05.2004 - 10.2006] ZZE132,133,134..NAP; ZZE130,131..NAP |
85375-10260 |
from US $1.62 |
||
|
85371
|
85371
90068-33026 Hose, Windshield Washer (From Motor To Joint)[05.2004 -] ZZE132,133,134..NAP L=50; ZZE130,131..NAP L=50 |
90068-33026 |
US $1.89 |
||
|
85372
|
85372
90068-33031 Hose, Windshield Washer (From Joint To Joint), No.1[05.2004 - 07.2006] ZZE133,134..NAP L=1640; ZZE131..NAP L=1640 |
90068-33031 |
US $11.07 |
||
|
85372B
|
85372B
90068-33030 Hose, Windshield Washer (From Joint To Joint), No.2[05.2004 - 07.2006] ZZE133,134..NAP L=500; ZZE131..NAP L=500 |
90068-33030 |
US $32.32 |
||
|
85373
|
85373
90068-33032
Hose, Windshield Washer (From Motor To Joint)
[05.2004 - 07.2006] ZZE131..NAP L=80 |
90068-33032 |
— | ||
|
90119A0098
|
90119A0098
90119-A0098
New Genuine Part
|
90119-A0098 |
— | ||
|
8538702110
|
8538702110
85387-02110 Clamp No.1 (for Windseield Washer) |
85387-02110 |
US $6.84 |
||
