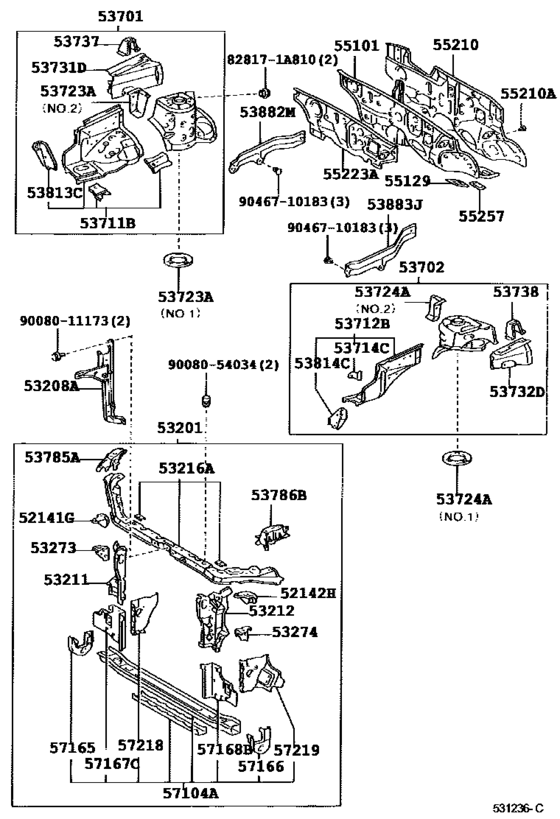

Front Fender Apron & Dash Panel ([01.2002 - ] (0201- )ZZE132,133,134..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Frame
- ZZE133
- grade
- XRS
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 01.2002
- To
- 05.2003
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-02070
Stay, Front Bumper, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
52141-02070 |
— | ||
|
52142H
|
52142H
52142-02070
Stay, Front Bumper, Lh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
52142-02070 |
— | ||
|
53201
|
53201
53201-02110
Support Sub-Assy, Radiator
[01.2002 - 05.2003] ZZE133..NAP..4FC |
53201-02110 |
— | ||
|
53208A
|
53208A
53208-02070
Support Sub-Assy, Hood Lock
[01.2002 - 05.2003] ZZE133..NAP..4FC |
53208-02070 |
— | ||
|
53211
|
53211
53211-02080
Support, Radiator, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
53211-02080 |
— | ||
|
53212
|
53212
53212-02080
Support, Radiator, Lh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
53212-02080 |
— | ||
|
53216A
|
53216A
53216-01900 Support, Radiator, Upper[01.2002 - 05.2004] ZZE132,133,134..NAP |
53216-01900 |
US $80.08 |
||
|
53273
|
53273
53273-02050
Bracket, Front Bumper Arm Mounting, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
53273-02050 |
— | ||
|
53274
|
53274
53274-01020 Bracket, Front Bumper Arm Mounting, Lh[01.2002 - 05.2004] ZZE132,133,134..NAP |
53274-01020 |
US $6.84 |
||
|
53701
|
53701
53701-02140
Apron Sub-Assy, Front Fender, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC |
53701-02140 |
— | ||
|
53702
|
53702
53702-02070
Apron Sub-Assy, Front Fender, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC |
53702-02070 |
— | ||
|
53711B
|
53711B
53711-02903 Apron, Front Fender, Front Rh[01.2002 - 05.2003] ZZE133..NAP..4FC |
53711-02903 |
US $87.36 |
||
|
53712B
|
53712B
53712-02903 Apron, Front Fender, Front Lh[01.2002 - 05.2003] ZZE133..NAP..4FC |
53712-02903 |
US $87.36 |
||
|
53714C
|
53714C
53714-02030 Extension, Front Fender Apron, Front Lh[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
53714-02030 |
US $4.95 |
||
|
53723A
|
53723A
53723-01010 Reinforcement, Front Spring Support, Rh[01.2002 - 03.2002] ZZE132,133,134..NAP NO.1 |
53723-01010 |
US $28.25 |
||
| replacement | |||||
|
53723A
|
53723A
53723-01011 Reinforcement, Front Spring Support, Rh[01.2002 - 03.2002] ZZE132,133,134..NAP NO.1 |
53723-01011 |
US $28.39 |
||
|
53723A
|
53723A
53723-01011 Reinforcement, Front Spring Support, Rh[01.2003 - 09.2003] ZZE132,133,134..NAP NO.1; ZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA MEXICO SPEC,NO.1 |
53723-01011 |
US $28.39 |
||
|
53723A
|
53723A
53723-02020 Reinforcement, Front Spring Support, Rh[01.2002 - 05.2004] ZZE132,133,134..NAP NO.2; ZZE130..NAP NO.2 |
53723-02020 |
US $13.98 |
||
|
53724A
|
53724A
53723-01010 Reinforcement, Front Spring Support, Rh[01.2002 - 03.2002] ZZE132,133,134..NAP NO.1 |
53723-01010 |
US $28.25 |
||
| replacement | |||||
|
53724A
|
53724A
53723-01011 Reinforcement, Front Spring Support, Rh[01.2002 - 03.2002] ZZE132,133,134..NAP NO.1 |
53723-01011 |
US $28.39 |
||
|
53724A
|
53724A
53723-01011 Reinforcement, Front Spring Support, Rh[01.2003 - 09.2003] ZZE132,133,134..NAP NO.1; ZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA MEXICO SPEC,NO.1 |
53723-01011 |
US $28.39 |
||
|
53724A
|
53724A
53724-02020 Reinforcement, Front Spring Support, Lh[01.2002 - 05.2004] ZZE132,133,134..NAP NO.2; ZZE130..NAP NO.2 |
53724-02020 |
US $14.41 |
||
|
53731D
|
53731D
53731-02060 Member, Front Apron To Cowl Side, Upper Rh[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
53731-02060 |
US $22.13 |
||
|
53732D
|
53732D
53732-02050 Member, Front Apron To Cowl Side, Upper Lh[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
53732-02050 |
US $22.13 |
||
|
53737
|
53737
53737-02020
Plate, Front Apron To Cowl Side Member, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
53737-02020 |
— | ||
|
53738
|
53738
53738-02020
Plate, Front Apron To Cowl Side Member, Lh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
53738-02020 |
— | ||
|
53785A
|
53785A
53785-02010
Gusset, Front Fender Apron, Upper Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
53785-02010 |
— | ||
|
53786B
|
53786B
53786-02010
Gusset, Front Fender Apron, Upper Lh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
53786-02010 |
— | ||
|
53813C
|
53813C
53813-02010
Extension, Front Fender, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
53813-02010 |
— | ||
|
53814C
|
53814C
53814-02020
Extension, Front Fender, Lh
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
53814-02020 |
— | ||
|
53882M
|
53882M
53882-02010
Seal, Front Fender
[01.2002 - 11.2003] ZZE132,133,134..NAP |
53882-02010 |
— | ||
| replacement | |||||
|
53882M
|
53882M
53882-02011
Seal, Front Fender
[01.2002 - 11.2003] ZZE132,133,134..NAP |
53882-02011 |
— | ||
|
53883J
|
53883J
53883-02010
Seal, Front Fender, Lh
[01.2002 - 11.2003] ZZE132,133,134..NAP |
53883-02010 |
— | ||
| replacement | |||||
|
53883J
|
53883J
53883-02011
Seal, Front Fender, Lh
[01.2002 - 11.2003] ZZE132,133,134..NAP |
53883-02011 |
— | ||
|
55101
|
55101
55101-01180
Panel Sub-Assy, Dash
[01.2002 - 05.2003] ZZE133..NAP..4FC W(REAR WINDOW WIPER) |
55101-01180 |
— | ||
|
55101
|
55101
55101-02380
Panel Sub-Assy, Dash
[01.2002 - 05.2003] ZZE133..NAP..4FC |
55101-02380 |
— | ||
|
55129
|
55129
55129-02020 Cover, Dash Panel Hole[01.2002 - 05.2004] ZZE132,133,134..NAP RH; ZZE130..NAP RH |
55129-02020 |
US $9.46 |
||
|
55129
|
55129
55139-02010 Cover, Dash Panel Hole[01.2002 - 05.2004] ZZE132,133,134..NAP LH; ZZE130..NAP LH |
55139-02010 |
US $9.32 |
||
|
55210
|
55210
55210-02150
Insulator Assy, Dash Panel
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
55210-02150 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-02160
Insulator Assy, Dash Panel
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
55210-02160 |
— | ||
|
55210A
|
55210A
90467-10005-B0 Clip[01.2002 - 05.2003] ZZE133..NAP..4FC MD.CHARCOAL,TRIM13,14 |
90467-10005-B0 |
US $3.20 |
||
|
55223A
|
55223A
55223-02100
Insulator, Dash Panel, Outer
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
55223-02100 |
— | ||
|
55257
|
55257
55257-02020 Cover, Dash Panel Opening[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
55257-02020 |
US $4.95 |
||
|
57104A
|
57104A
57104-02071 Member Sub-Assy, Front Cross[01.2002 - 08.2003] ZZE132,133,134..NAP; ZZE130..NAP |
57104-02071 |
US $254.80 |
||
| replacement | |||||
|
57104A
|
57104A
57104-02072 Member Sub-Assy, Front Cross[01.2002 - 08.2003] ZZE132,133,134..NAP; ZZE130..NAP |
57104-02072 |
US $251.89 |
||
|
57165
|
57165
57165-02040 Reinforcement, Front Crossmember, Lower Rh[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
57165-02040 |
US $10.63 |
||
|
57166
|
57166
57166-02030 Reinforcement, Front Crossmember, Lower Lh[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
57166-02030 |
US $10.63 |
||
|
57167C
|
57167C
57167-02040 Gusset, Front Crossmember Side, Rh[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
57167-02040 |
US $26.50 |
||
|
57168B
|
57168B
57168-02040 Gusset, Front Crossmember Side, Lh[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
57168-02040 |
US $23.88 |
||
|
57218
|
57218
57218-02030 Gusset, Front Side Member, No.1[01.2002 - 08.2003] ZZE132,133,134..NAP; ZZE130..NAP |
57218-02030 |
US $18.20 |
||
| replacement | |||||
|
57218
|
57218
57218-02031 Gusset, Front Side Member, No.1[01.2002 - 08.2003] ZZE132,133,134..NAP; ZZE130..NAP |
57218-02031 |
US $18.05 |
||
|
57219
|
57219
57219-02030 Gusset, Front Side Member, No.2[01.2002 - 08.2003] ZZE132,133,134..NAP; ZZE130..NAP |
57219-02030 |
US $18.93 |
||
| replacement | |||||
|
57219
|
57219
57219-02031 Gusset, Front Side Member, No.2[01.2002 - 08.2003] ZZE132,133,134..NAP; ZZE130..NAP |
57219-02031 |
US $18.93 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9008011173
|
9008011173
90080-11173
New Genuine Part
|
90080-11173 |
— | ||
|
9008054034
|
9008054034
90080-54034 New Genuine Part |
90080-54034 |
US $4.22 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.86 |
||
