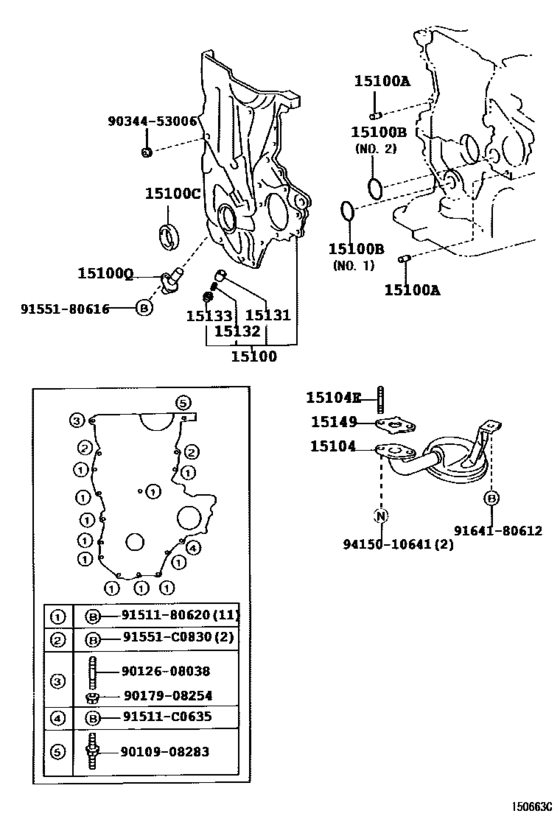

Engine Oil Pump ([01.2001 - ] (0101- )1NZFE) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- NZE124
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-21040
Pump Assy, Oil
[01.2001 - 09.2002] 1NZFE..NZE12# |
15100-21040 |
— | ||
| replacement | |||||
|
15100
|
15100
15100-21042 Pump Assy, Oil[01.2001 - 09.2002] 1NZFE..NZE12# |
15100-21042 |
from US $85.33 |
||
|
15100A
|
15100A
90253-08003 Pin, Ring W/head[01.2001 - 09.2002] 1NZFE..NZE12# |
90253-08003 |
US $1.43 |
||
|
15100B
|
15100B
90301-31012
Ring, O(For Oil Pump)
[01.2001 - 09.2002] 1NZFE..NZE12# ＮＯ．１ |
90301-31012 |
— | ||
| replacement | |||||
|
15100B
|
15100B
12151-21010 Ring, O(For Oil Pump)[01.2001 - 09.2002] 1NZFE..NZE12# ＮＯ．１ |
12151-21010 |
from US $0.80 |
||
|
15100B
|
15100B
90301-42006
Ring, O(For Oil Pump)
[01.2001 - 09.2002] 1NZFE..NZE12# ＮＯ．２ |
90301-42006 |
— | ||
| replacement | |||||
|
15100B
|
15100B
11497-21010 Ring, O(For Oil Pump)[01.2001 - 09.2002] 1NZFE..NZE12# ＮＯ．２ |
11497-21010 |
from US $3.14 |
||
|
15100C
|
15100C
90311-25021
Seal, Oil(For Timing Chain Or Belt Cover)
[01.2001 - 09.2002] 1NZFE..NZE12# |
90311-25021 |
— | ||
| replacement | |||||
|
15100C
|
15100C
90311-25032 Seal, Oil(For Timing Chain Or Belt Cover)[01.2001 - 09.2002] 1NZFE..NZE12# |
90311-25032 |
from US $5.56 |
||
|
15100Q
|
15100Q
90919-05045
Sensor, Crank Position
[01.2001 - 09.2002] 1NZFE..NZE12# |
90919-05045 |
— | ||
| replacement | |||||
|
15100Q
|
15100Q
90919-05087 Sensor, Crank Position[01.2001 - 09.2002] 1NZFE..NZE12# |
90919-05087 |
from US $46.37 |
||
|
15104
|
15104
15104-21021 Strainer Sub-Assy, Oil[01.2001 - 09.2002] 1NZFE..NZE12# |
15104-21021 |
US $41.93 |
||
| replacement | |||||
|
15104
|
15104
15104-21022 Strainer Sub-Assy, Oil[01.2001 - 09.2002] 1NZFE..NZE12# |
15104-21022 |
from US $20.12 |
||
|
15104E
|
15104E
90126-06021 Bolt, Stud(For Oil Strainer)[01.2001 - 09.2002] 1NZFE..NZE12# |
90126-06021 |
US $1.43 |
||
|
15131
|
15131
15131-21020 Valve, Oil Pump Relief[01.2001 - 09.2002] 1NZFE..NZE12# |
15131-21020 |
US $4.37 |
||
|
15132
|
15132
15132-21020 Spring, Oil Pump Relief Valve[01.2001 - 09.2002] 1NZFE..NZE12# |
15132-21020 |
US $2.80 |
||
|
15133
|
15133
15133-21020 Plug, Oil Pump Relief Valve[01.2001 - 09.2002] 1NZFE..NZE12# |
15133-21020 |
US $3.84 |
||
|
15133
|
15133
15133-21030 Plug, Oil Pump Relief Valve[05.2004 - 09.2006] 1NZFE..NZE12# |
15133-21030 |
US $2.91 |
||
|
15149
|
15149
16258-21010
Gasket, Oil Strainer Flange
[01.2001 - 09.2002] 1NZFE..NZE12# |
16258-21010 |
— | ||
| replacement | |||||
|
15149
|
15149
16258-21030 Gasket, Oil Strainer Flange[01.2001 - 09.2002] 1NZFE..NZE12# |
16258-21030 |
from US $2.61 |
||
|
15149
|
15149
16258-21030 Gasket, Oil Strainer Flange[02.2003 - 04.2004] 1NZFE..NZE12# |
16258-21030 |
from US $2.61 |
||
|
91511C0635
|
91511C0635
91511-C0635 BOLT FLANGE |
91511-C0635 |
US $1.79 |
||
|
91551C0830
|
91551C0830
91551-C0830 BOLT FLANGE |
91551-C0830 |
from US $0.92 |
||
|
9010908283
|
9010908283
90109-08283 New Genuine Part |
90109-08283 |
US $1.43 |
||
|
9012608038
|
9012608038
90126-08038 New Genuine Part |
90126-08038 |
US $3.76 |
||
|
9017908254
|
9017908254
90179-08254 NUT |
90179-08254 |
US $1.43 |
||
|
9034453006
|
9034453006
90344-53006 Plug, Tight, No.1(For Timing Gear Cover) |
90344-53006 |
from US $2.22 |
||
|
9151180620
|
9151180620
91511-80620 Direct |
91511-80620 |
US $1.97 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9164180612
|
9164180612
91641-80612 New Genuine Part |
91641-80612 |
US $1.97 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $1.08 |
||
