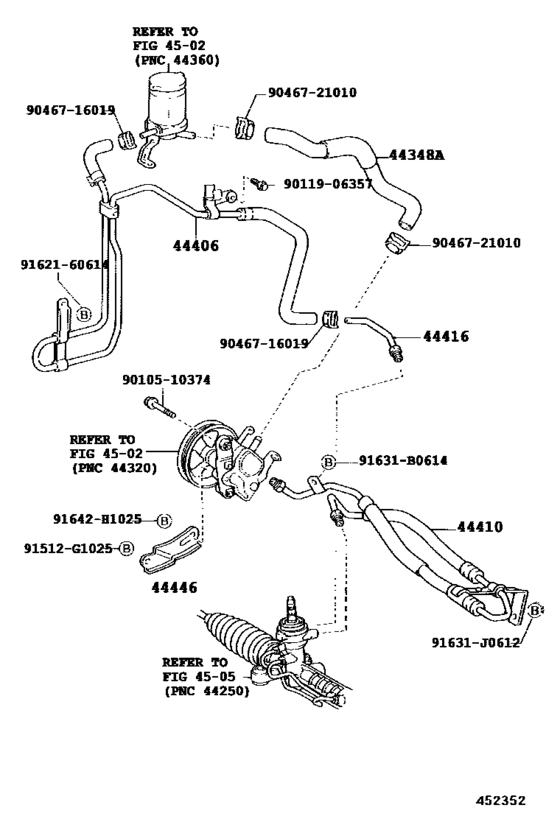

Power Steering Tube ([01.2001 - ] (0101- )NZE124) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- NZE124
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-12080 Hose, Oil Reservoir To Pump, No.1[01.2001 - 07.2001] NZE124 |
44348-12080 |
US $63.48 |
||
| replacement | |||||
|
44348A
|
44348A
44348-12081 Hose, Oil Reservoir To Pump, No.1[01.2001 - 07.2001] NZE124 |
44348-12081 |
from US $62.77 |
||
|
44348A
|
44348A
44348-12081 Hose, Oil Reservoir To Pump, No.1[07.2001 - 09.2002] NZE124 |
44348-12081 |
from US $62.77 |
||
|
44406
|
44406
44406-12250 Tube Sub-Assy, Return[01.2001 - 07.2001] NZE124 |
44406-12250 |
US $117.94 |
||
| replacements | |||||
|
44406
|
44406
44348-12081 Hose, Oil Reservoir To Pump, No.1[01.2001 - 07.2001] NZE124 |
44348-12081 |
from US $62.77 |
||
|
44406
|
44406
44348-12091 Hose, Oil Reservoir To Pump, No.1[01.2001 - 07.2001] NZE124 |
44348-12091 |
from US $63.20 |
||
|
44406
|
44406
44406-12251 Tube Sub-Assy, Return[01.2001 - 07.2001] NZE124 |
44406-12251 |
US $117.94 |
||
|
44406
|
44406
44406-12251 Tube Sub-Assy, Return[07.2001 - 09.2002] NZE124 |
44406-12251 |
US $117.94 |
||
|
44410
|
44410
44410-12620 Tube Assy, Pressure Feed[01.2001 - 09.2002] NZE124 |
44410-12620 |
US $346.53 |
||
| replacement | |||||
|
44410
|
44410
44410-12621 Tube Assy, Pressure Feed[01.2001 - 09.2002] NZE124 |
44410-12621 |
US $346.53 |
||
|
44410
|
44410
44410-12621 Tube Assy, Pressure Feed[09.2003 - 04.2004] NZE124 |
44410-12621 |
US $346.53 |
||
|
44416
|
44416
44416-12260 Tube, Return(For Steering Gear Outlet)[01.2001 - 09.2002] NZE124 |
44416-12260 |
US $14 |
||
|
44446
|
44446
44446-52010 Strut, Adjusting[01.2001 - 09.2002] NZE124 |
44446-52010 |
US $21.50 |
||
|
91512G1025
|
91512G1025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91642H1025
|
91642H1025
91642-H1025 New Genuine Part |
91642-H1025 |
US $3.05 |
||
|
9010510374
|
9010510374
90105-10374 New Genuine Part |
90105-10374 |
US $5.56 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
