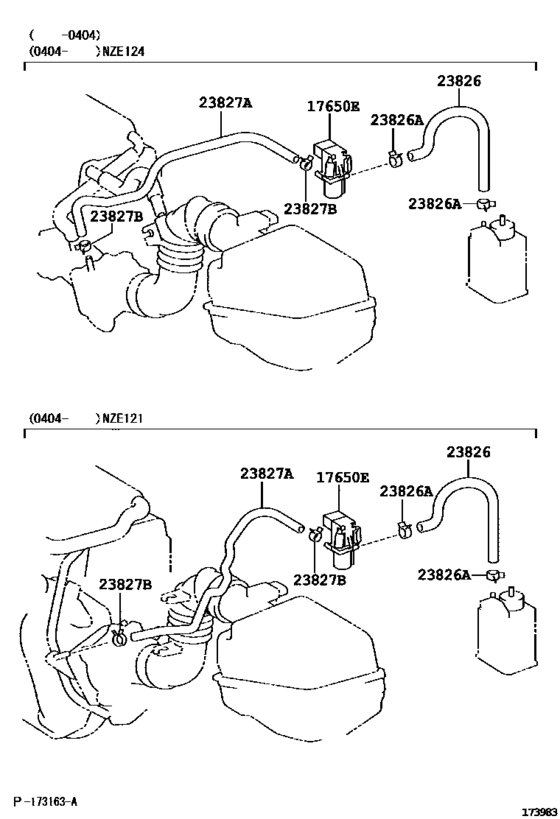

Vacuum Piping ([09.2001 - ] (0109- )1NZFE) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- NZE124
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650E
|
17650E
90910-12236
Valve, Vacuum Switching
[01.2001 - 09.2001] 1NZFE..NZE12# |
90910-12236 |
— | ||
|
17650E
|
17650E
90910-12257 Valve, Vacuum Switching[09.2001 - 09.2002] 1NZFE..NZE12# |
90910-12257 |
US $38.44 |
||
|
23826
|
23826
23826-21030 Hose, Fuel Vapor Feed, No.1[09.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23826-21030 |
from US $6.49 |
||
|
23826
|
23826
23826-21050 Hose, Fuel Vapor Feed, No.1[01.2001 - 09.2001] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23826-21050 |
US $6.99 |
||
| replacement | |||||
|
23826
|
23826
23826-21030 Hose, Fuel Vapor Feed, No.1[01.2001 - 09.2001] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23826-21030 |
from US $6.49 |
||
|
23826A
|
23826A
96132-51100 Clip (For Hose)[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
96132-51100 |
from US $1.42 |
||
|
23827A
|
23827A
23827-21030 Hose, Fuel Vapor Feed, No.2[01.2001 - 09.2002] 1NZFE..NZE12# |
23827-21030 |
US $41.33 |
||
|
23827B
|
23827B
96132-51300 Clip(For Ventilation Hose No.2)[01.2001 - 09.2002] 1NZFE..NZE12# |
96132-51300 |
from US $1.48 |
||
