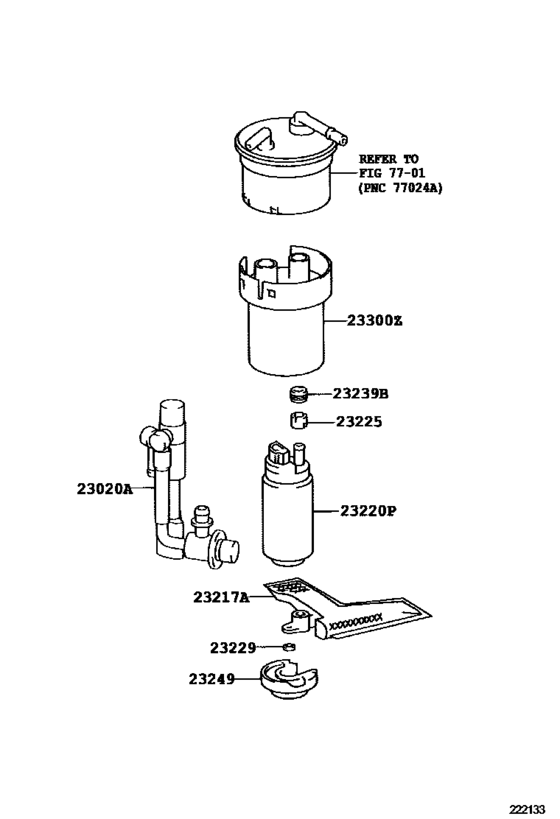

Fuel Injection System ([01.2001 - ] (0101- )1NZFE..NZE124) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- NZE124
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- ALLEX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23020A
|
23020A
23020-70010 Regulator Assy, Fuel Pressure W/jet Pump[01.2001 - 09.2002] 1NZFE..NZE124 |
23020-70010 |
from US $98.53 |
||
|
23217A
|
23217A
23217-23010 Filter, Fuel Pump[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23217-23010 |
from US $9.59 |
||
|
23220P
|
23220P
23221-28030
Pump Assy, Fuel
[01.2001 - 09.2002] 2ZZGE..ZZE123; 1NZFE..NZE124 |
23221-28030 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[01.2001 - 09.2002] 2ZZGE..ZZE123; 1NZFE..NZE124 |
23221-28280 |
from US $370.52 |
||
|
23225
|
23225
23225-21010 Spacer, Fuel Pump[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23225-21010 |
from US $1.19 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23229-16010 |
from US $0.80 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23219-03010 |
US $2.55 |
||
|
23239B
|
23239B
23239-21010 Seal, Fuel Pump Filter[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23239-21010 |
from US $0.99 |
||
|
23249
|
23249
23249-46180 Rubber, Cushion(For Fuel Pump)[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23249-46180 |
from US $9.42 |
||
|
23300Z
|
23300Z
23300-21010 Filter Assy, Fuel[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
23300-21010 |
from US $62.21 |
||
