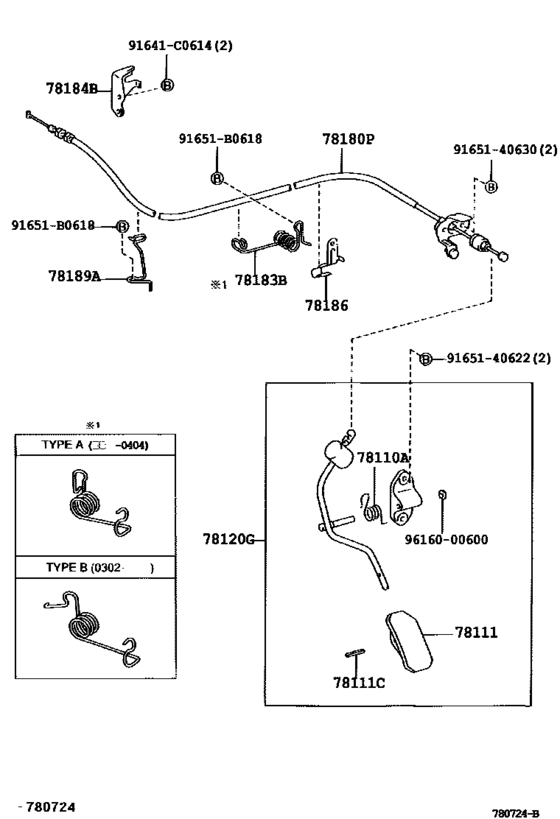

Accelerator Link ([09.2002 - ] (0209- )ZZE122,124) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90959-03307 Spring (For Accelerator Pedal Rod)[09.2002 - 04.2004] NZE12#,ZZE12# |
90959-03307 |
US $3.35 |
||
|
78111
|
78111
78111-32020 Pedal, Accelerator[09.2002 - 04.2004] NZE12#,ZZE12# |
78111-32020 |
US $8.44 |
||
|
78111C
|
78111C
90254-04019 Pin (For Accelerator Pedal)[09.2002 - 04.2004] NZE12#,ZZE12# |
90254-04019 |
US $1.25 |
||
|
78120G
|
78120G
78120-12340 Rod Assy, Accelerator Pedal[09.2002 - 04.2004] ZZE12# |
78120-12340 |
US $41.35 |
||
|
78180P
|
78180P
78180-13050 Cable Assy, Accelerator Control[09.2002 - 12.2002] ZZE122,124 |
78180-13050 |
US $81.54 |
||
| replacement | |||||
|
78180P
|
78180P
78180-13051 Cable Assy, Accelerator Control[09.2002 - 12.2002] ZZE122,124 |
78180-13051 |
US $82.99 |
||
|
78180P
|
78180P
78180-1A751 Cable Assy, Accelerator Control[12.2002 - 04.2004] ZZE122,124 |
78180-1A751 |
US $82.99 |
||
| replacement | |||||
|
78180P
|
78180P
78180-1A752 Cable Assy, Accelerator Control[12.2002 - 04.2004] ZZE122,124 |
78180-1A752 |
US $82.99 |
||
|
78180P
|
78180P
78180-1A752 Cable Assy, Accelerator Control[10.2005 - 09.2006] ZZE122,124 |
78180-1A752 |
US $82.99 |
||
|
78183B
|
78183B
78183-12240 Clamp, Accelerator Control Cable[09.2002 - 02.2003] NZE12#,ZZE12# |
78183-12240 |
US $4.22 |
||
| replacement | |||||
|
78183B
|
78183B
78183-13010 Clamp, Accelerator Control Cable[09.2002 - 02.2003] NZE12#,ZZE12# |
78183-13010 |
US $4.08 |
||
|
78183B
|
78183B
78183-13010 Clamp, Accelerator Control Cable[02.2003 - 04.2004] NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
78183-13010 |
US $4.08 |
||
|
78184B
|
78184B
78184-12360 Bracket Sub-Assy, Accelerator Control Cable[09.2002 - 04.2004] ZZE122,124 |
78184-12360 |
US $17.18 |
||
|
78186
|
78186
78186-12370 Support, Accelerator Control Cable, No.1[09.2002 - 04.2004] NZE12#,ZZE12# |
78186-12370 |
US $10.34 |
||
|
78189A
|
78189A
78189-12100 Support, Accelerator Control Cable, No.2[09.2002 - 04.2004] NZE12#,ZZE12# |
78189-12100 |
US $8.44 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.66 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.79 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.43 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
