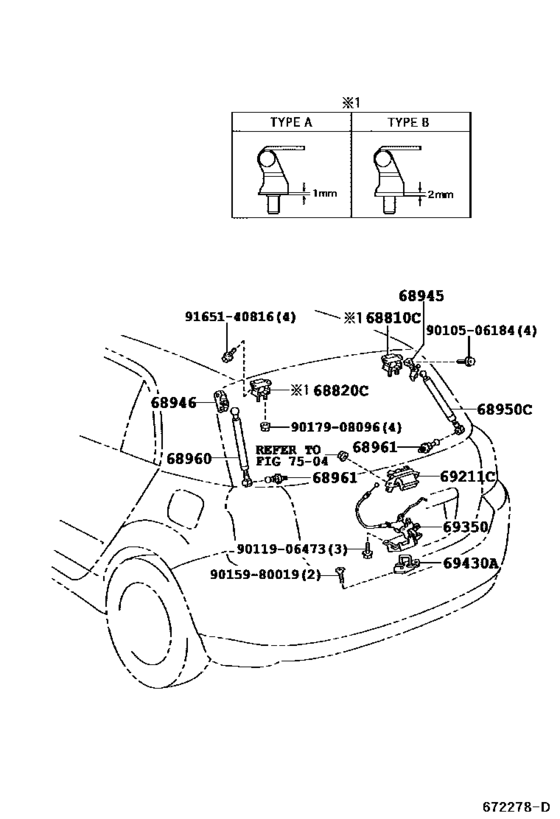

Back Door Lock & Handle ([01.2001 - ] (0101- )) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68810C
|
68810C
68810-12060 Hinge Assy, Back Door, Rh[09.2004 - 09.2006] NZE12#,ZZE12# ＴＹＰＥ Ｂ：イラスト参照 |
68810-12060 |
US $27.52 |
||
|
68810C
|
68810C
68810-21050
Hinge Assy, Back Door, Upper
[09.2002 - 04.2004] NZE12#,ZZE12# |
68810-21050 |
— | ||
| replacement | |||||
|
68810C
|
68810C
68810-21051 Hinge Assy, Back Door, Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
68810-21051 |
from US $23.02 |
||
|
68820C
|
68820C
68810-12060 Hinge Assy, Back Door, Rh[09.2004 - 09.2006] NZE12#,ZZE12# ＴＹＰＥ Ｂ：イラスト参照 |
68810-12060 |
US $27.52 |
||
|
68820C
|
68820C
68810-21050
Hinge Assy, Back Door, Upper
[09.2002 - 04.2004] NZE12#,ZZE12# |
68810-21050 |
— | ||
| replacement | |||||
|
68820C
|
68820C
68810-21051 Hinge Assy, Back Door, Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
68810-21051 |
from US $23.02 |
||
|
68945
|
68945
68945-13050 Bracket, Back Door Damper Stay, Upper Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
68945-13050 |
US $7.71 |
||
|
68946
|
68946
68946-13050 Bracket, Back Door Damper Stay, Upper Lh[09.2002 - 04.2004] NZE12#,ZZE12# |
68946-13050 |
US $7.71 |
||
|
68950C
|
68950C
68950-0W080
Stay Assy, Back Door, Rh
[09.2002 - 04.2004] NZE12#,ZZE12# |
68950-0W080 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-0W082 Stay Assy, Back Door, Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
68950-0W082 |
US $161.60 |
||
|
68950C
|
68950C
68950-0W081
Stay Assy, Back Door, Rh
[01.2005 - 09.2006] NZE12#,ZZE12# |
68950-0W081 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-0W082 Stay Assy, Back Door, Rh[01.2005 - 09.2006] NZE12#,ZZE12# |
68950-0W082 |
US $161.60 |
||
|
68960
|
68960
68960-0W070
Stay Assy, Back Door, Lh
[09.2002 - 04.2004] NZE12#,ZZE12# |
68960-0W070 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-0W072 Stay Assy, Back Door, Lh[09.2002 - 04.2004] NZE12#,ZZE12# |
68960-0W072 |
US $161.60 |
||
|
68960
|
68960
68960-0W071 Stay Assy, Back Door, Lh[01.2005 - 09.2006] NZE12#,ZZE12# |
68960-0W071 |
US $135.41 |
||
| replacement | |||||
|
68960
|
68960
68960-0W072 Stay Assy, Back Door, Lh[01.2005 - 09.2006] NZE12#,ZZE12# |
68960-0W072 |
US $161.60 |
||
|
68961
|
68961
68961-10030 Bolt, Back Door Stay[09.2002 - 04.2004] NZE12#,ZZE12# |
68961-10030 |
US $7.71 |
||
|
69211C
|
69211C
69023-13020 Handle Sub-Assy, Back Door Outside[09.2002 - 04.2004] NZE12#,ZZE12# |
69023-13020 |
US $37.46 |
||
|
69350
|
69350
69350-13300 Lock Assy, Back Door[09.2002 - 04.2004] NZE12#,ZZE12# |
69350-13300 |
US $234.12 |
||
|
69350
|
69350
69350-13370 Lock Assy, Back Door[04.2004 - 09.2006] NZE12#,ZZE12# |
69350-13370 |
US $208.21 |
||
|
69430A
|
69430A
69430-52020 Striker Assy, Back Door Lower Lock[09.2002 - 04.2004] NZE12#,ZZE12# |
69430-52020 |
US $15.95 |
||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.25 |
||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.25 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.79 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.40 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
